AZURE-NV2520M6M

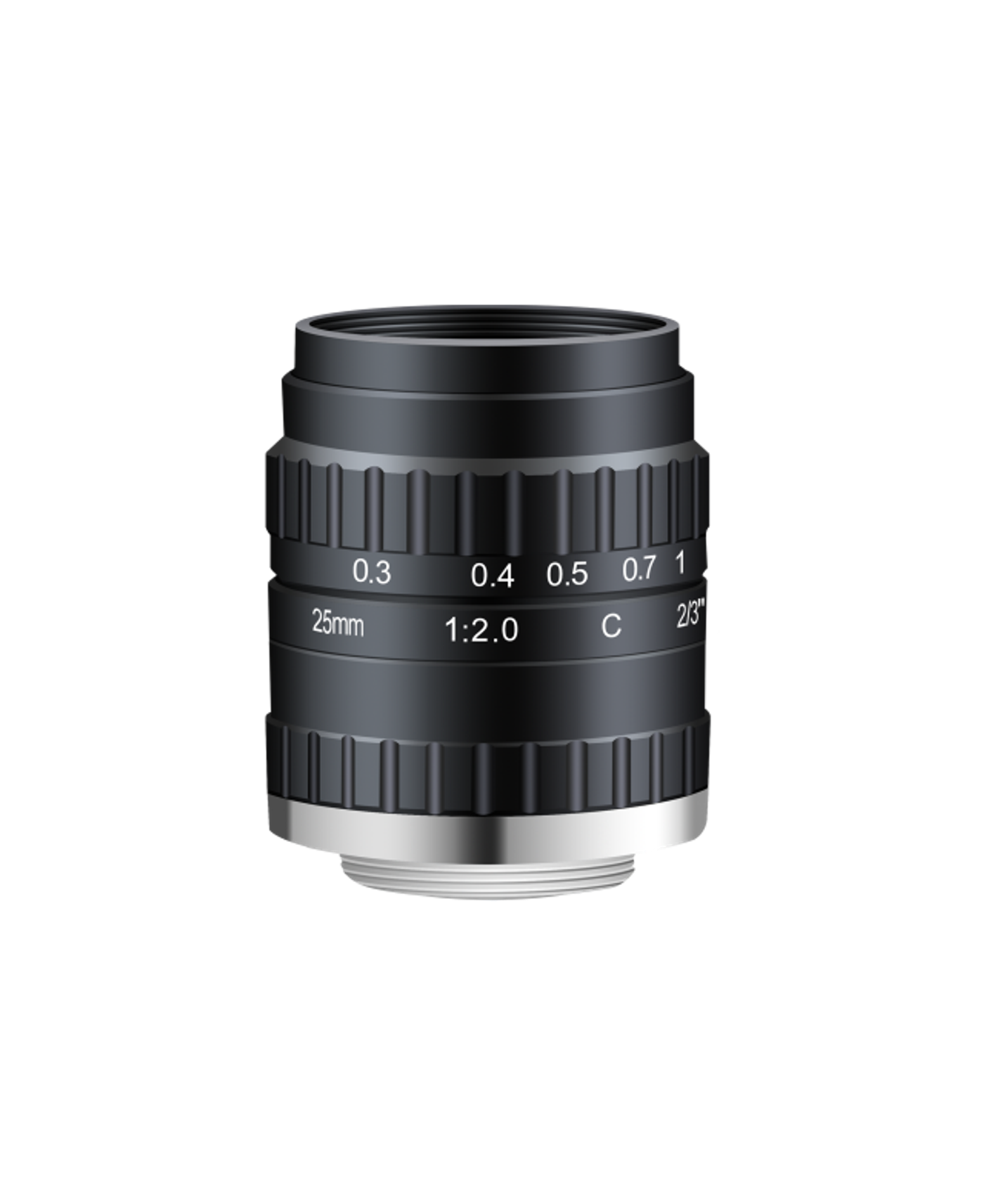

AZURE-NV2520M6M 25mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
2/3”(compatible with 1/1.2 sensor)Sensor Size
170lp/mmResolving Power
CMount
F2.0~F16Aperture
0.2m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-NV2520M6M.
- DimensionsΦ38×40.17mm
- Weight97.3g
- Back Focal Length13.03mm
- Filter ThreadM30.5×0.5
- MountC
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 2/3”(compatible with 1/1.2 sensor) |
| Resolving Power | 170lp/mm |
| Mount | C |
| Aperture | F2.0~F16 |
| Working Distance | 0.2m~∞ |
| Filter Thread | M30.5×0.5 |
| Field of View | 1/2“靶面 18.18°×10.97°×14.59°; 1/3“靶面 13.68°×8.24°×10.97° |
| Distortion | <0.25% |
| Back Focal Length | 13.03mm |
| Iris | M-Iris |
| Dimensions | Φ38×40.17mm |
| Weight | 97.3g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
