AZURE-0420MM

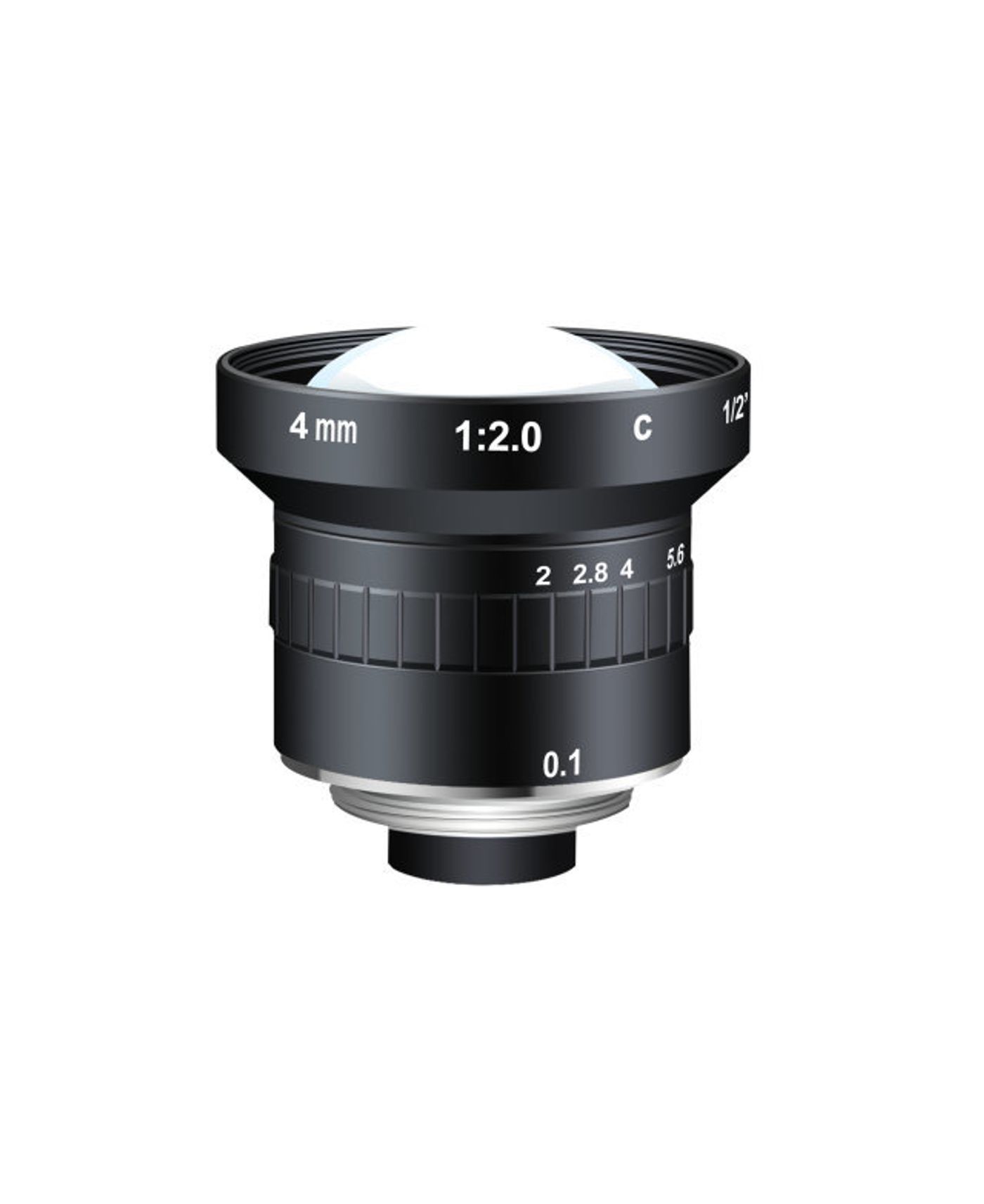

AZURE-0420MM 4mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
4 mmFocal Length
1/2"Sensor Size
100lp/mmResolving Power
CMount
F2.0~F16Aperture
0.1m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0420MM.
- DimensionsΦ44.5x35.97mm
- Weight130g
- Back Focal Length8.77mm
- MountC
Key Specifications
| Focal Length | 4 mm |
| Sensor Size | 1/2" |
| Resolving Power | 100lp/mm |
| Mount | C |
| Aperture | F2.0~F16 |
| Working Distance | 0.1m~∞ |
| Field of View | 1/2"靶面 90°x 61.8°77.4° |
| Distortion | <-2.8% |
| Back Focal Length | 8.77mm |
| Iris | M-Iris |
| Dimensions | Φ44.5x35.97mm |
| Weight | 130g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
