AZURE-1623ML12M

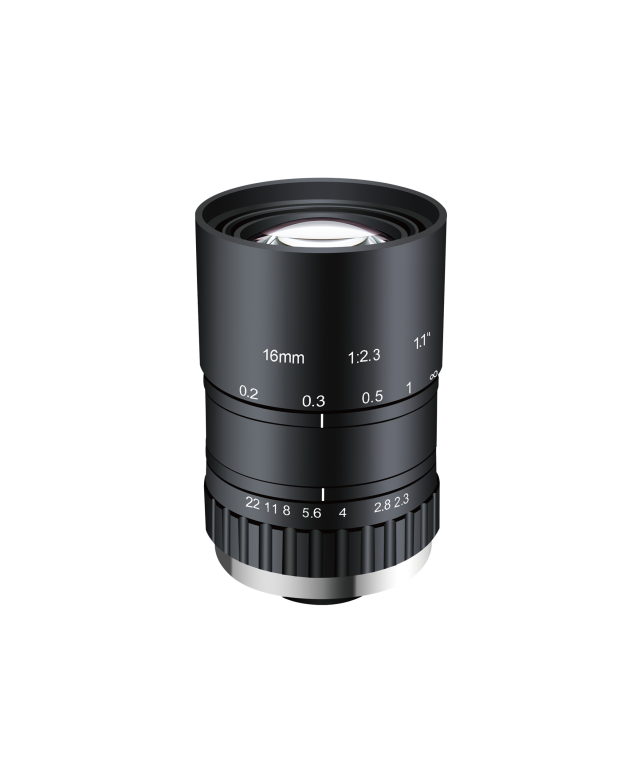

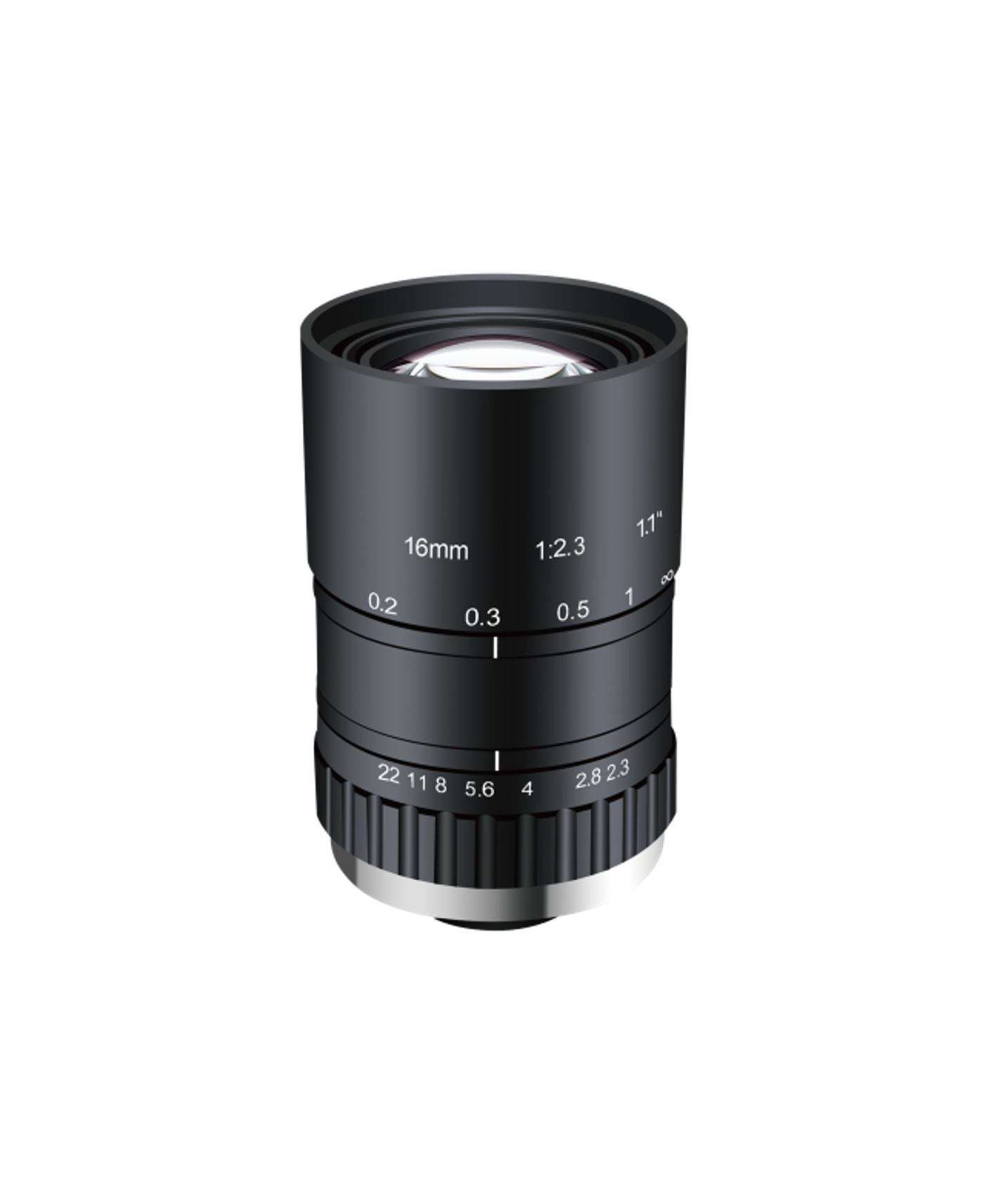

AZURE-1623ML12M 16mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
16 mmFocal Length
1.1"Sensor Size
150lp/mmResolving Power
CMount
F2.3~F22Aperture
0.1m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-1623ML12M.
- DimensionsΦ46×69.03mm
- Weight226.3g
- Back Focal Length12.42mm
- Filter ThreadM43×0.75
- MountC
Key Specifications
| Focal Length | 16 mm |
| Sensor Size | 1.1" |
| Resolving Power | 150lp/mm |
| Mount | C |
| Aperture | F2.3~F22 |
| Working Distance | 0.1m~∞ |
| Filter Thread | M43×0.75 |
| Field of View | 1.1"靶面 54.39°×34.45°×44.56° |
| Distortion | <0.4% |
| Back Focal Length | 12.42mm |
| Iris | Manual |
| Dimensions | Φ46×69.03mm |
| Weight | 226.3g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
