HN-0612-2M-C1/2X

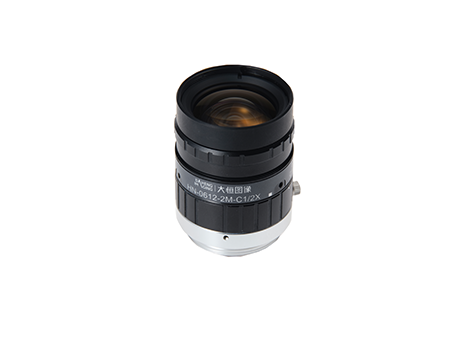

Daheng HN-0612-2M-C1/2X 6mm 2MP Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
6 mmFocal Length
1/2"Sensor Size
2 MPResolution
C-MountMount
F1.2 - F16Aperture
100 mm - ∞Working Distance
Dimensions

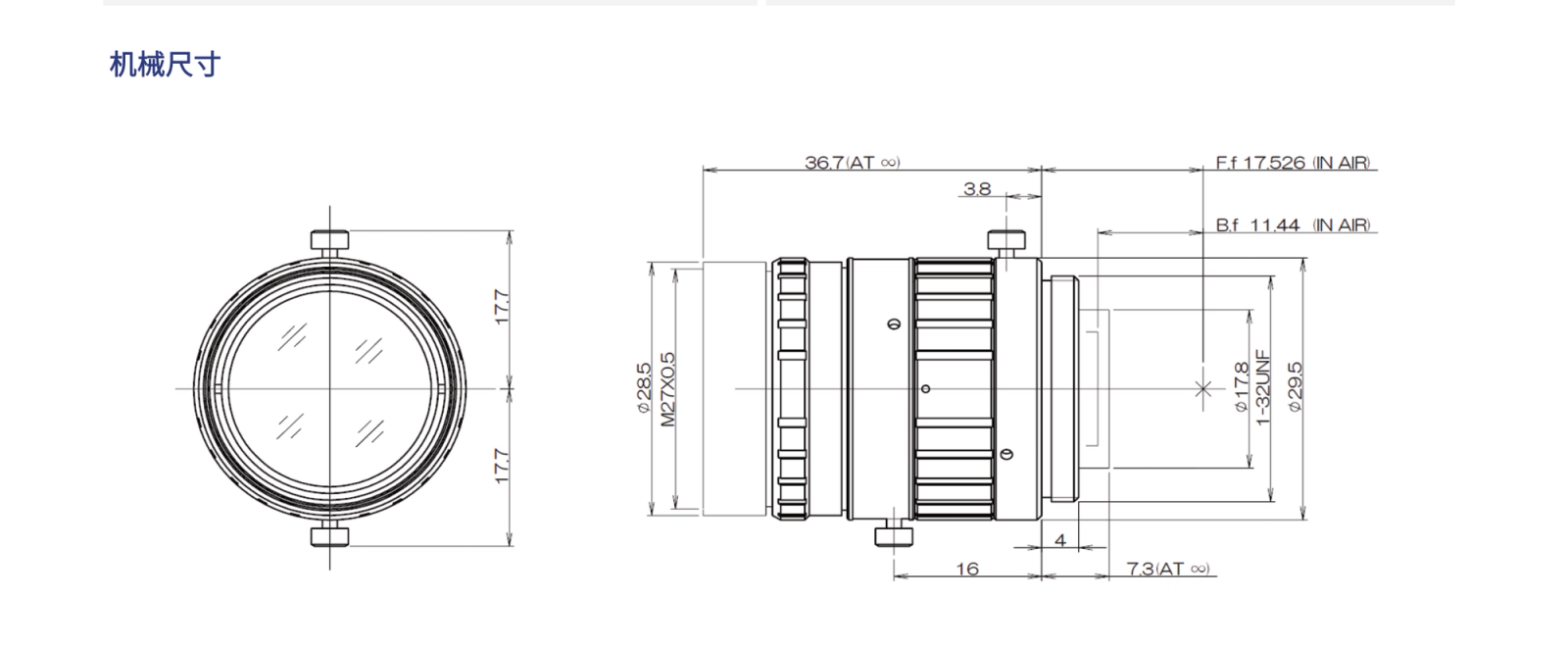

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ29.5 × 36.7 mm (D × L)
- Weight50 g
- Filter ThreadM27 × 0.5
- MountC-Mount
Key features
- High optical performance
- Shock and vibration resistance rated to 10 G
- Compact, lightweight barrel
- Simple and quick to install
Key Specifications
| Focal Length | 6 mm |
| Sensor Size | 1/2" |
| Resolution | 2 MP |
| Mount | C-Mount |
| Aperture | F1.2 - F16 |
| Working Distance | 100 mm - ∞ |
| mod | 100 mm |
| Filter Thread | M27 × 0.5 |
| Field of View | 57.3° × 43.8° (H × V) |
| Distortion | -1.84% |
| Focus Range | 0.1 m - ∞ |
| Pixel Size | 6.2 µm |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ29.5 × 36.7 mm (D × L) |
| Weight | 50 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
