AZURE-0640CM

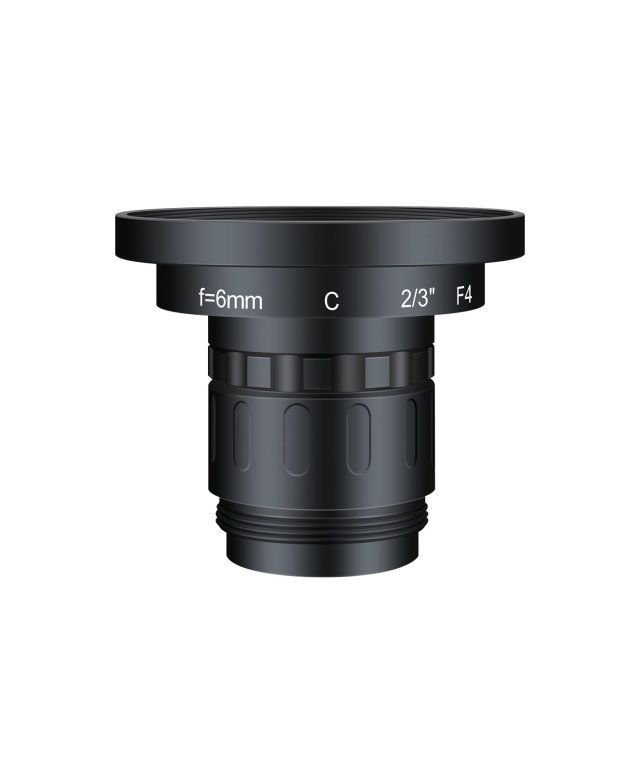

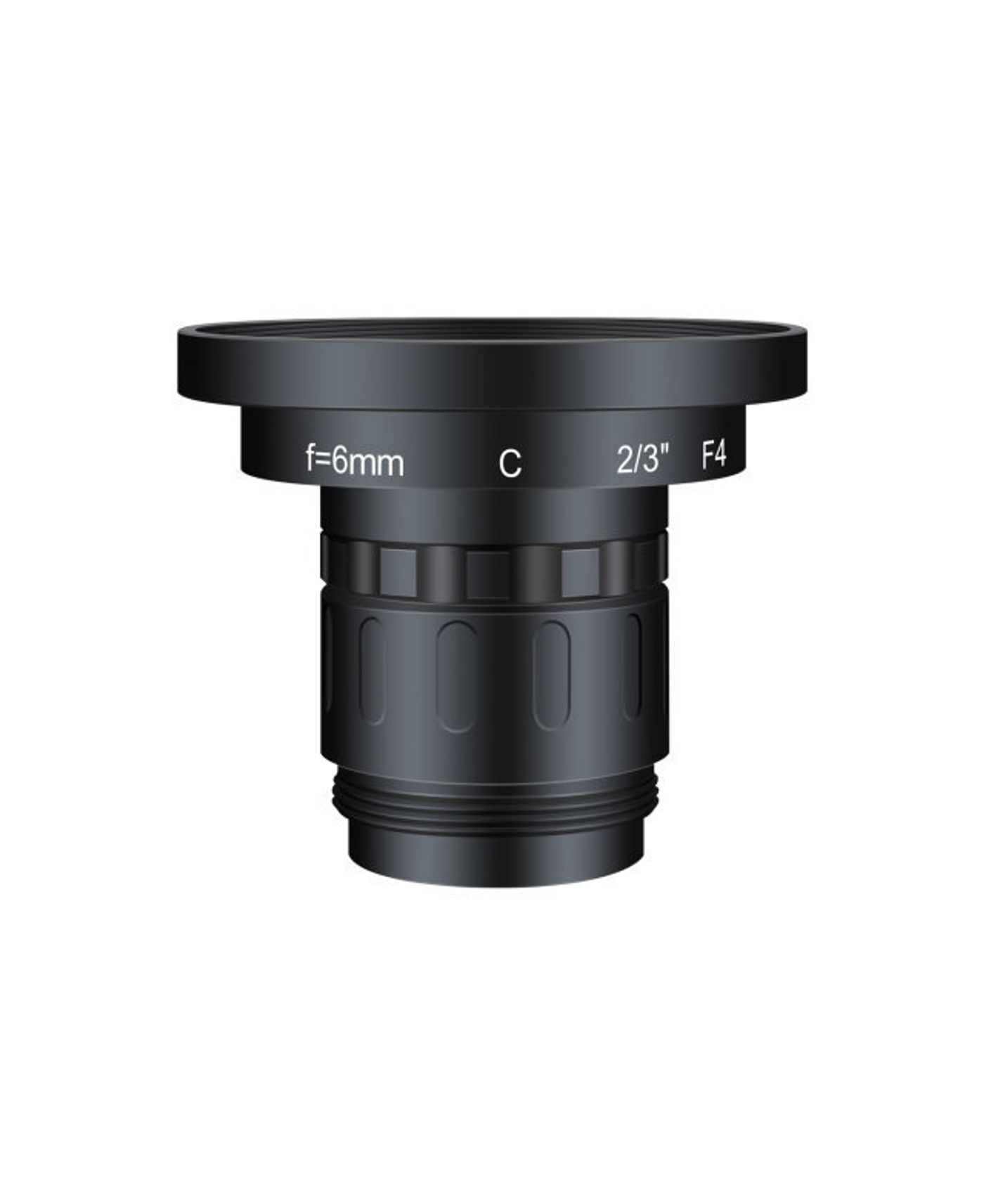

AZURE-0640CM 6mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
6 mmFocal Length
2/3"Sensor Size
180 lp/mmResolving Power
CMount
F4.0Aperture
0.1~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0640CM.
- DimensionsΦ48.5x33.36mm
- Weight-
- Back Focal Length9.85mm
- Filter ThreadM46x0.75
- MountC
Key Specifications
| Focal Length | 6 mm |
| Sensor Size | 2/3" |
| Resolving Power | 180 lp/mm |
| Mount | C |
| Aperture | F4.0 |
| Working Distance | 0.1~∞m |
| Filter Thread | M46x0.75 |
| Field of View | 2/3"靶面 84.03°×57.82°×72.6° |
| Distortion | <-1% |
| Back Focal Length | 9.85mm |
| Iris | Fixed |
| Dimensions | Φ48.5x33.36mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-0640CM fits, or recommend a better match.
