AZURE-7525MM

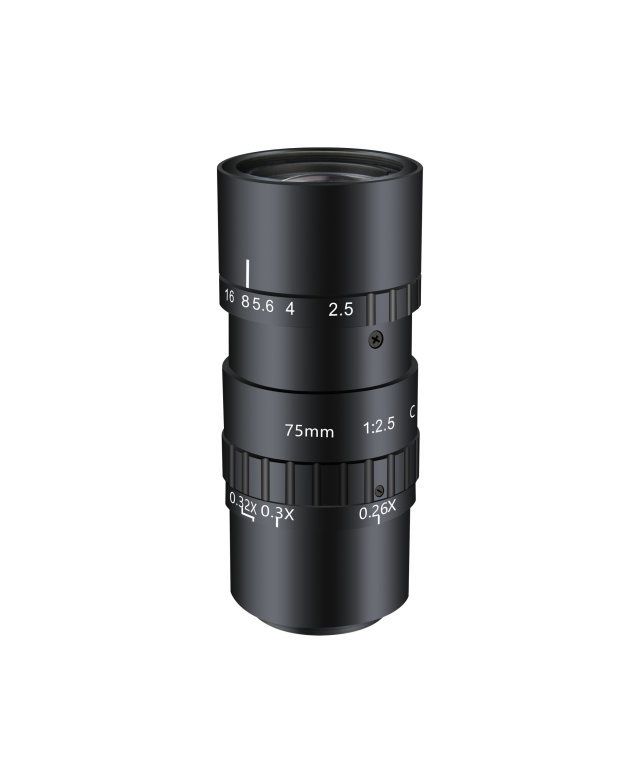

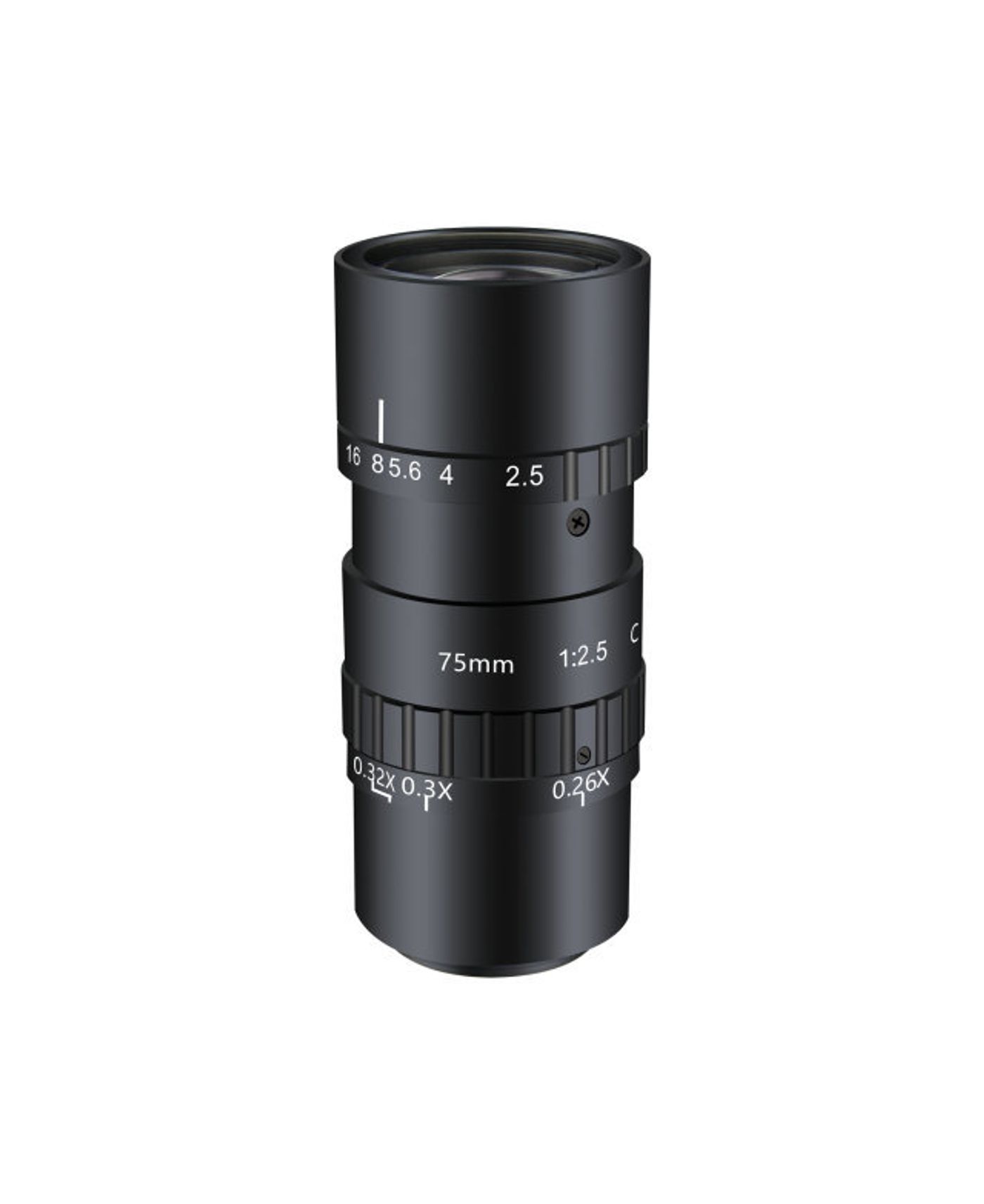

AZURE-7525MM 75mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
75 mmFocal Length
0.18X-0.38XMagnification
2/3"Sensor Size
110lp/mmResolving Power
CMount
2.5Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-7525MM.
- DimensionsΦ36x70mm
- Weight-
- Back Focal Length38.39mm
- Filter ThreadM30.5x0.5
- MountC
Key Specifications
| Focal Length | 75 mm |
| Magnification | 0.18X-0.38X |
| Sensor Size | 2/3" |
| Resolving Power | 110lp/mm |
| Mount | C |
| Aperture | 2.5 |
| Filter Thread | M30.5x0.5 |
| Field of View | 1/2"靶面 3.84°x2.26°x3.05°; 1/3"靶面 2.85°x1.66°x2.26° |
| Distortion | <0.2% |
| Back Focal Length | 38.39mm |
| Iris | Manual |
| Dimensions | Φ36x70mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
