AZURE-1228CM

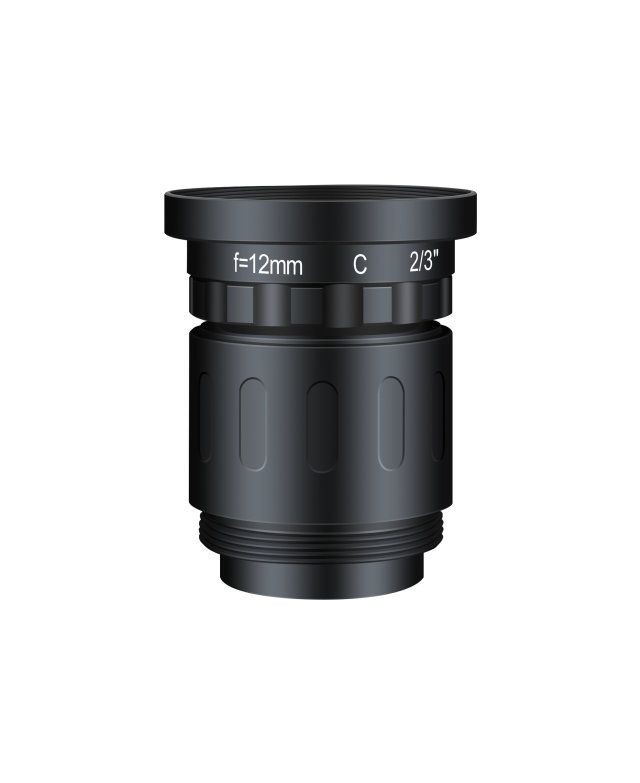

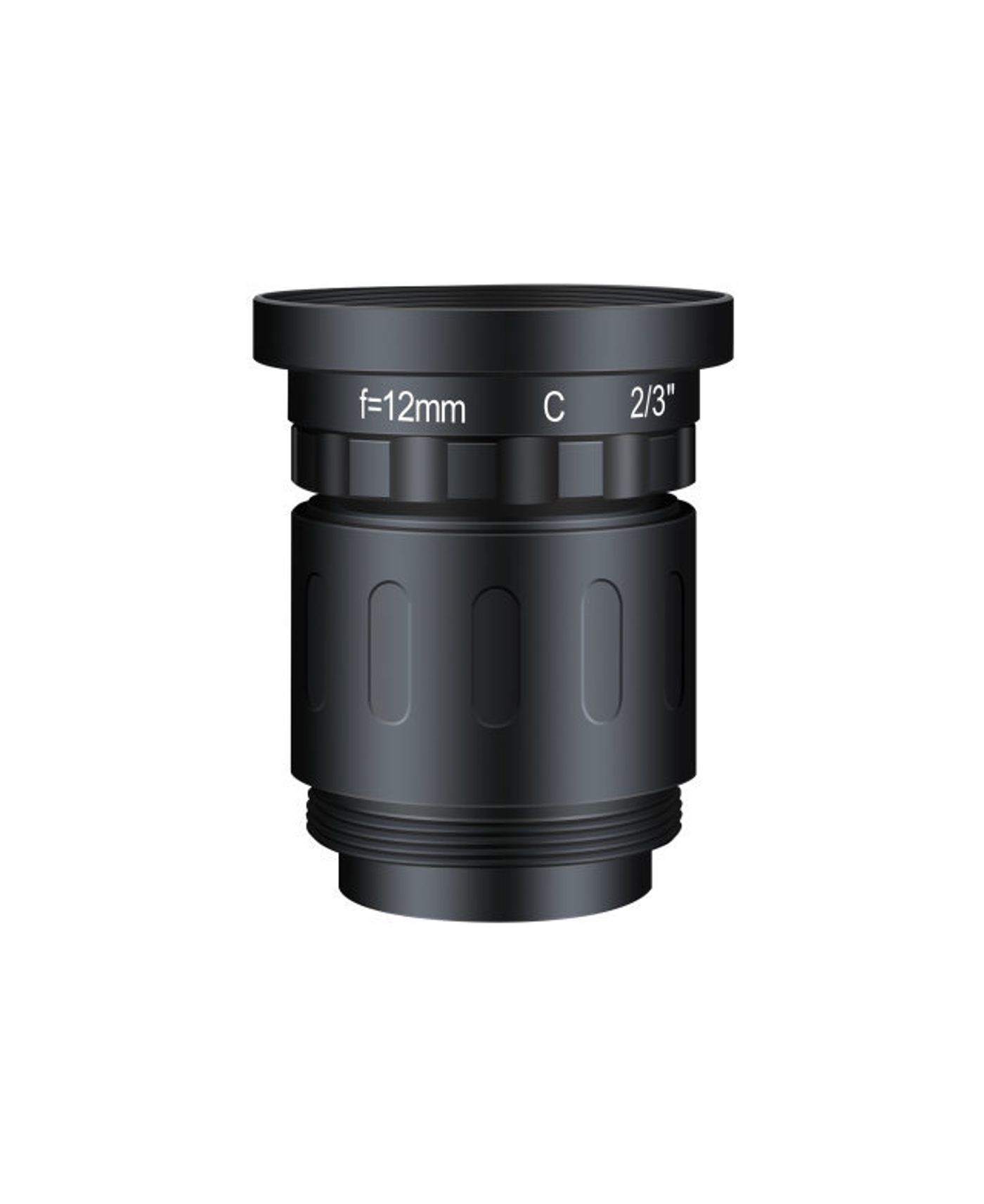

AZURE-1228CM 12mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
12 mmFocal Length
2/3"Sensor Size
180 lp/mmResolving Power
CMount
F2.8Aperture
0.1~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-1228CM.
- DimensionsΦ32x31.85mm
- Weight-
- Back Focal Length9.94mm
- Filter ThreadM30.5x0.5
- MountC
Key Specifications
| Focal Length | 12 mm |
| Sensor Size | 2/3" |
| Resolving Power | 180 lp/mm |
| Mount | C |
| Aperture | F2.8 |
| Working Distance | 0.1~∞m |
| Filter Thread | M30.5x0.5 |
| Field of View | 2/3"靶面 46.86°×29.11°×38.24° |
| Distortion | <-0.49% |
| Back Focal Length | 9.94mm |
| Iris | Fixed |
| Dimensions | Φ32x31.85mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
