AZURE-7520M5M

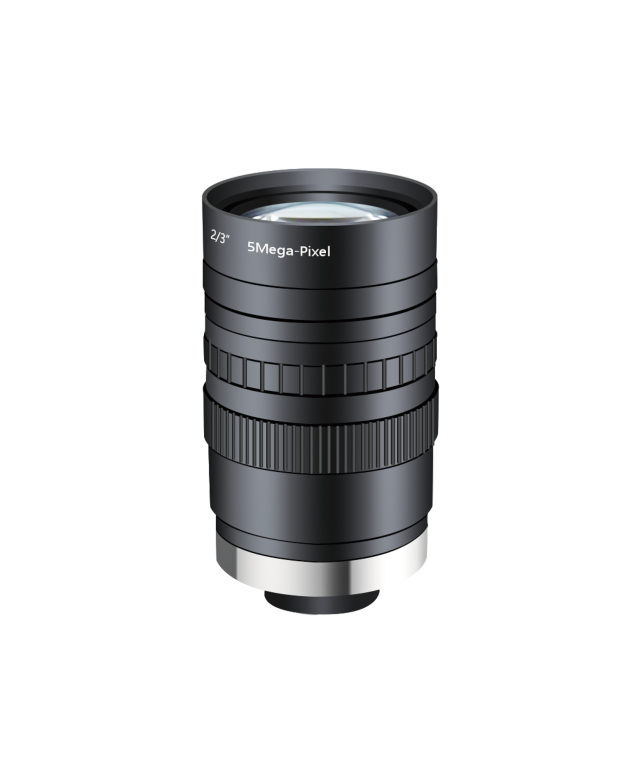

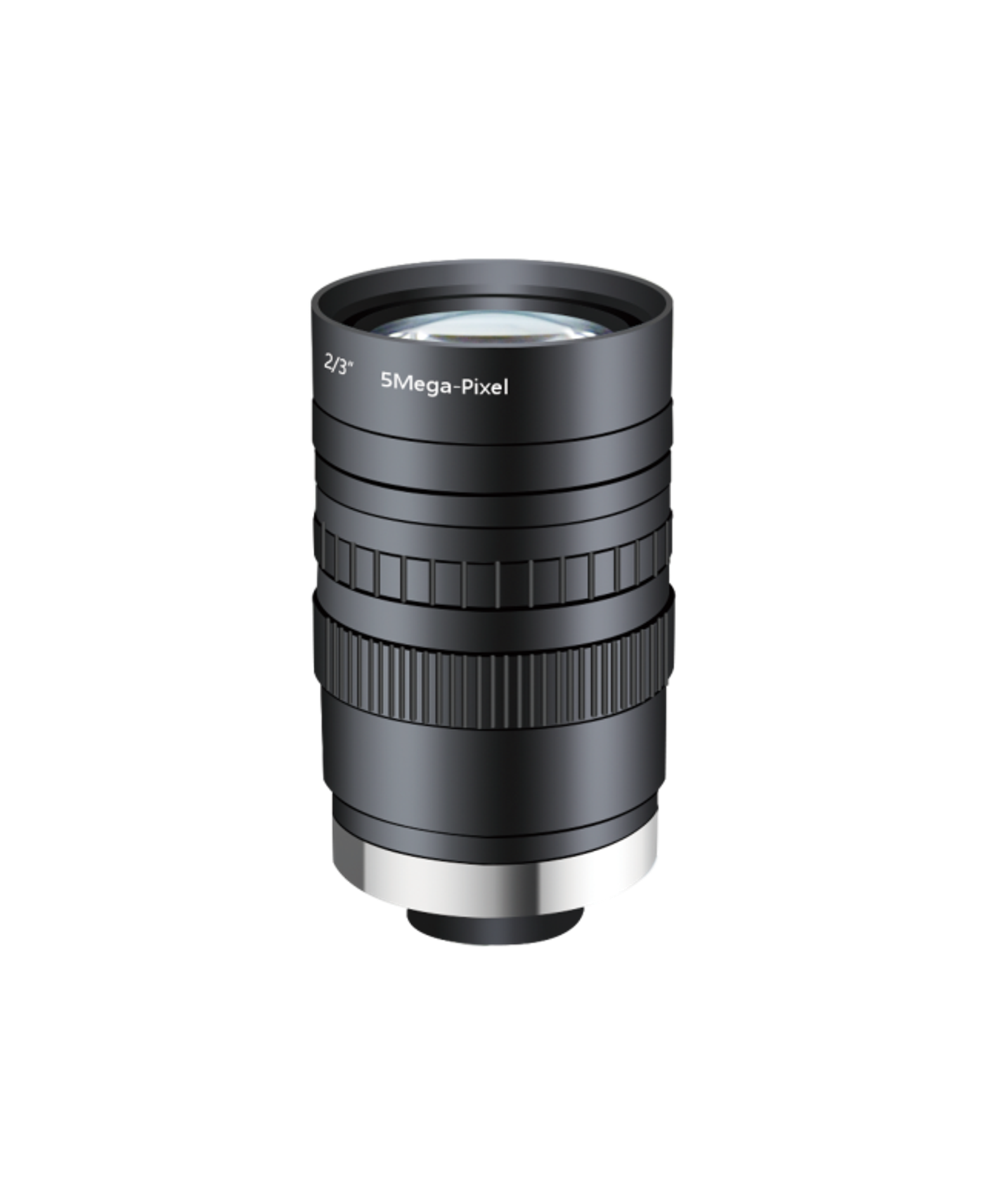

AZURE-7520M5M 75mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
75 mmFocal Length
2/3"Sensor Size
150lp/mmResolving Power
CMount
F2.0~F22Aperture
1m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-7520M5M.
- DimensionsΦ42×70.2mm
- Weight290g
- Back Focal Length10.7mm
- Filter ThreadM40.5×0.5
- MountC
Key Specifications
| Focal Length | 75 mm |
| Sensor Size | 2/3" |
| Resolving Power | 150lp/mm |
| Mount | C |
| Aperture | F2.0~F22 |
| Working Distance | 1m~∞ |
| Filter Thread | M40.5×0.5 |
| Field of View | 2/3"靶面 8.36°×5.04°×6.72° |
| Distortion | <-0.1% |
| Back Focal Length | 10.7mm |
| Iris | M-Iris |
| Dimensions | Φ42×70.2mm |
| Weight | 290g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
