AZURE-7526ML12M

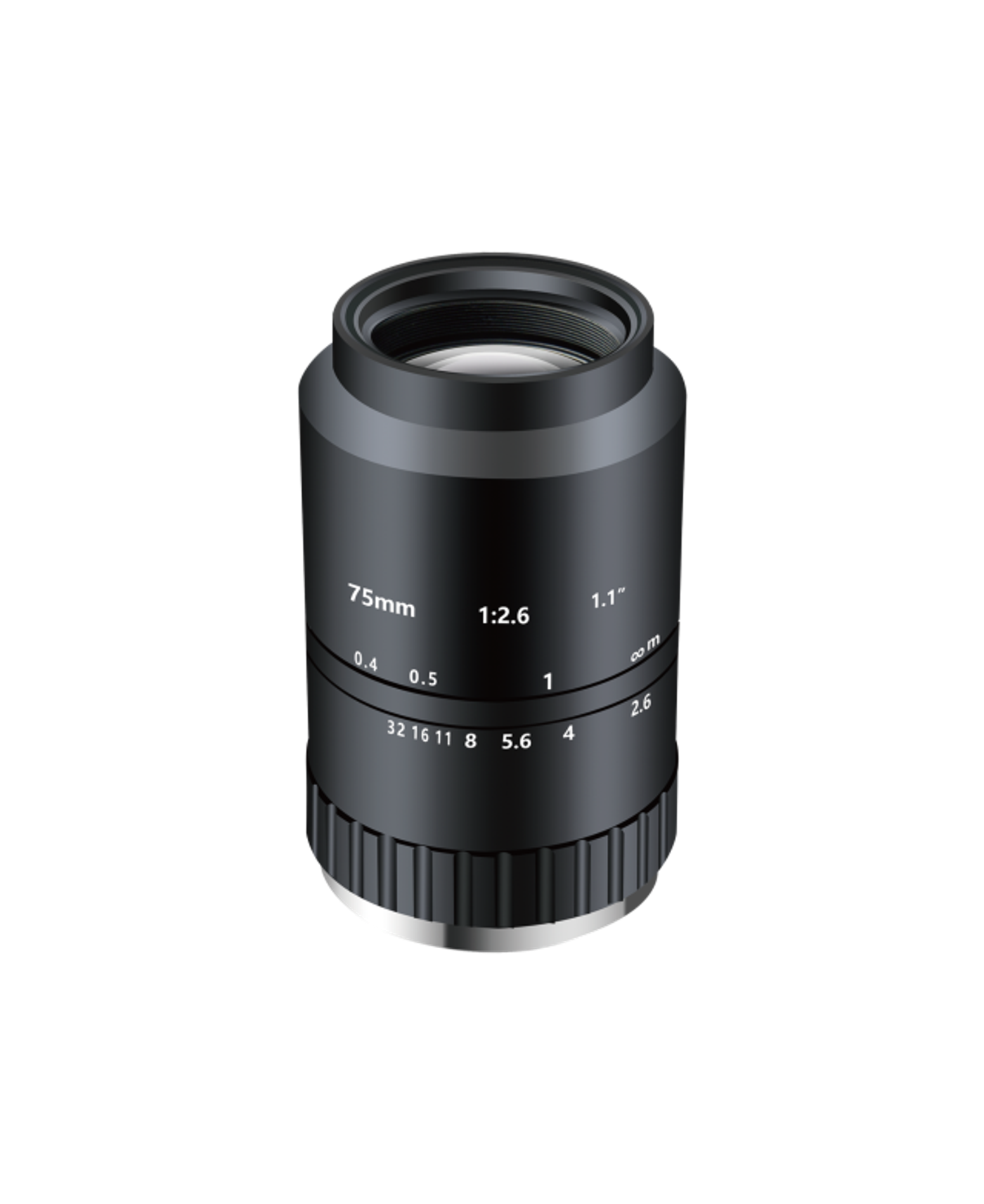

AZURE-7526ML12M 75mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
75 mmFocal Length
1.1"Sensor Size
150lp/mmResolving Power
CMount
F2.6~F32Aperture
0.3m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-7526ML12M.
- DimensionsΦ50×95.41mm
- Weight270g
- Back Focal Length15.76mm
- Filter ThreadM34×0.5
- MountC
Key Specifications
| Focal Length | 75 mm |
| Sensor Size | 1.1" |
| Resolving Power | 150lp/mm |
| Mount | C |
| Aperture | F2.6~F32 |
| Working Distance | 0.3m~∞ |
| Filter Thread | M34×0.5 |
| Field of View | 1.1"靶面 7.53°×4.65°×6.05° |
| Distortion | <-0.35% |
| Back Focal Length | 15.76mm |
| Iris | Manual |
| Dimensions | Φ50×95.41mm |
| Weight | 270g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
