AZURE-5028CF

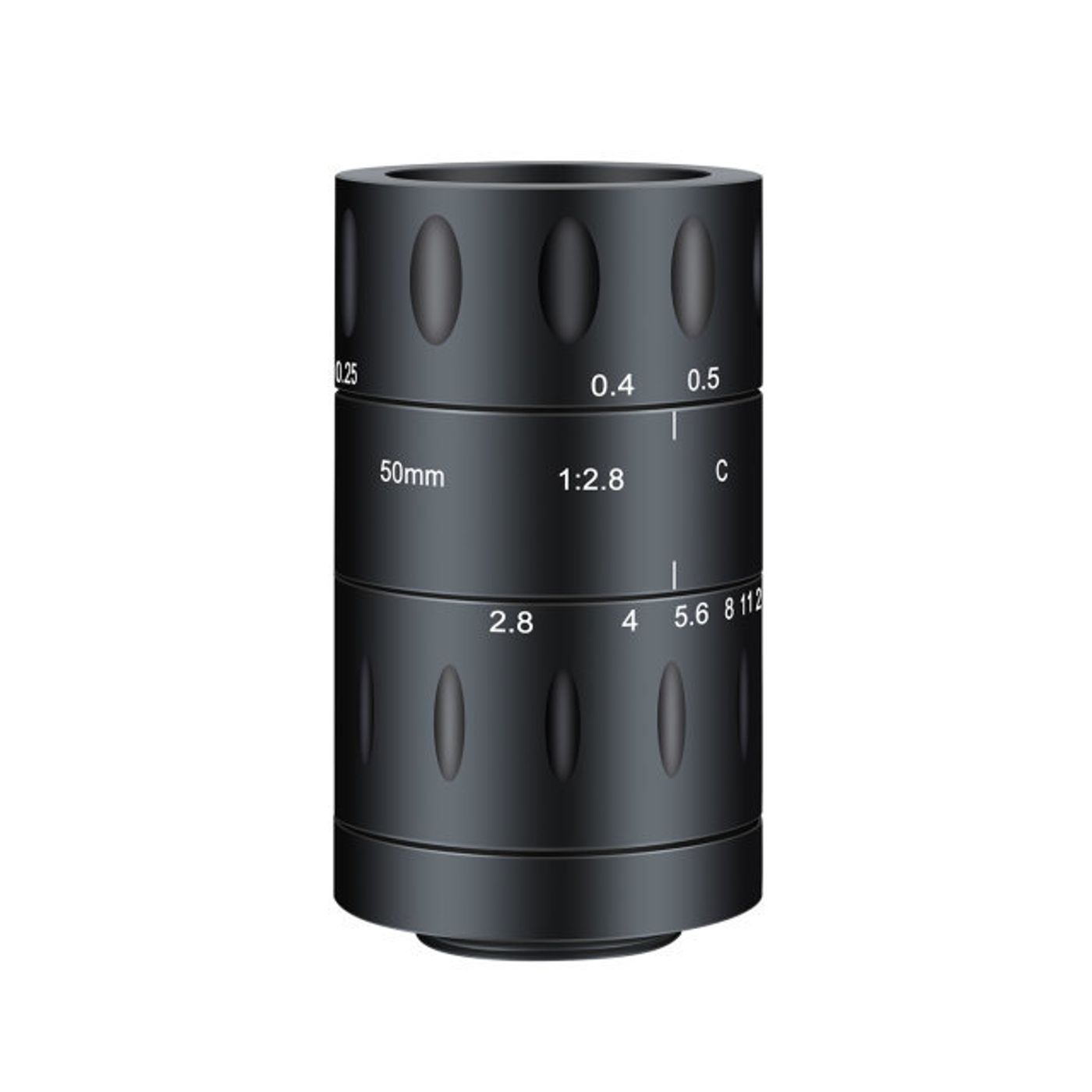

AZURE-5028CF 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
2/3"Sensor Size
250 lp/mmResolving Power
CMount
F2.8~F22Aperture
0.25~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-5028CF.
- DimensionsΦ40x68.6mm
- Weight193g
- Back Focal Length13.54mm
- Filter ThreadM30.5x0.5
- MountC
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 2/3" |
| Resolving Power | 250 lp/mm |
| Mount | C |
| Aperture | F2.8~F22 |
| Working Distance | 0.25~∞m |
| Filter Thread | M30.5x0.5 |
| Field of View | 2/3"(1:1)靶面 12.55°×8.87°×8.87° |
| Distortion | <-0.34% |
| Back Focal Length | 13.54mm |
| Iris | Manual |
| Dimensions | Φ40x68.6mm |
| Weight | 193g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
