AZURE-1614MM

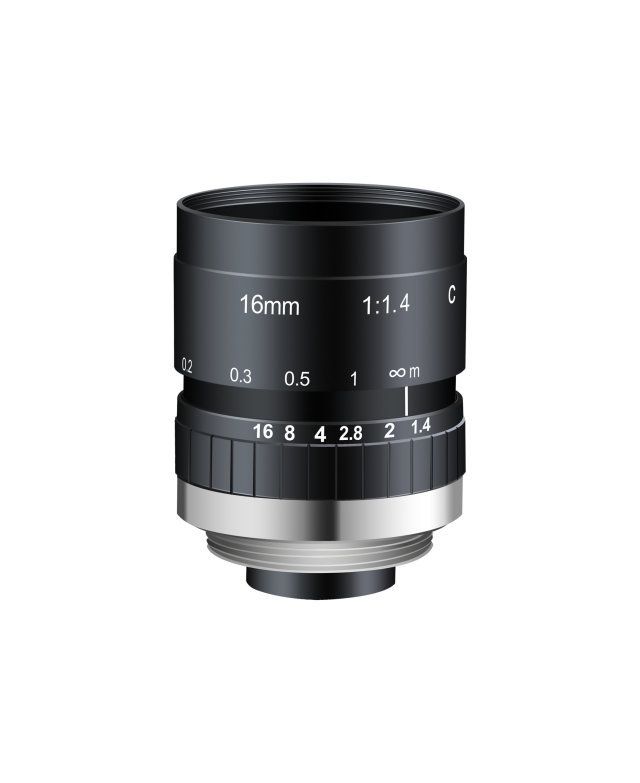

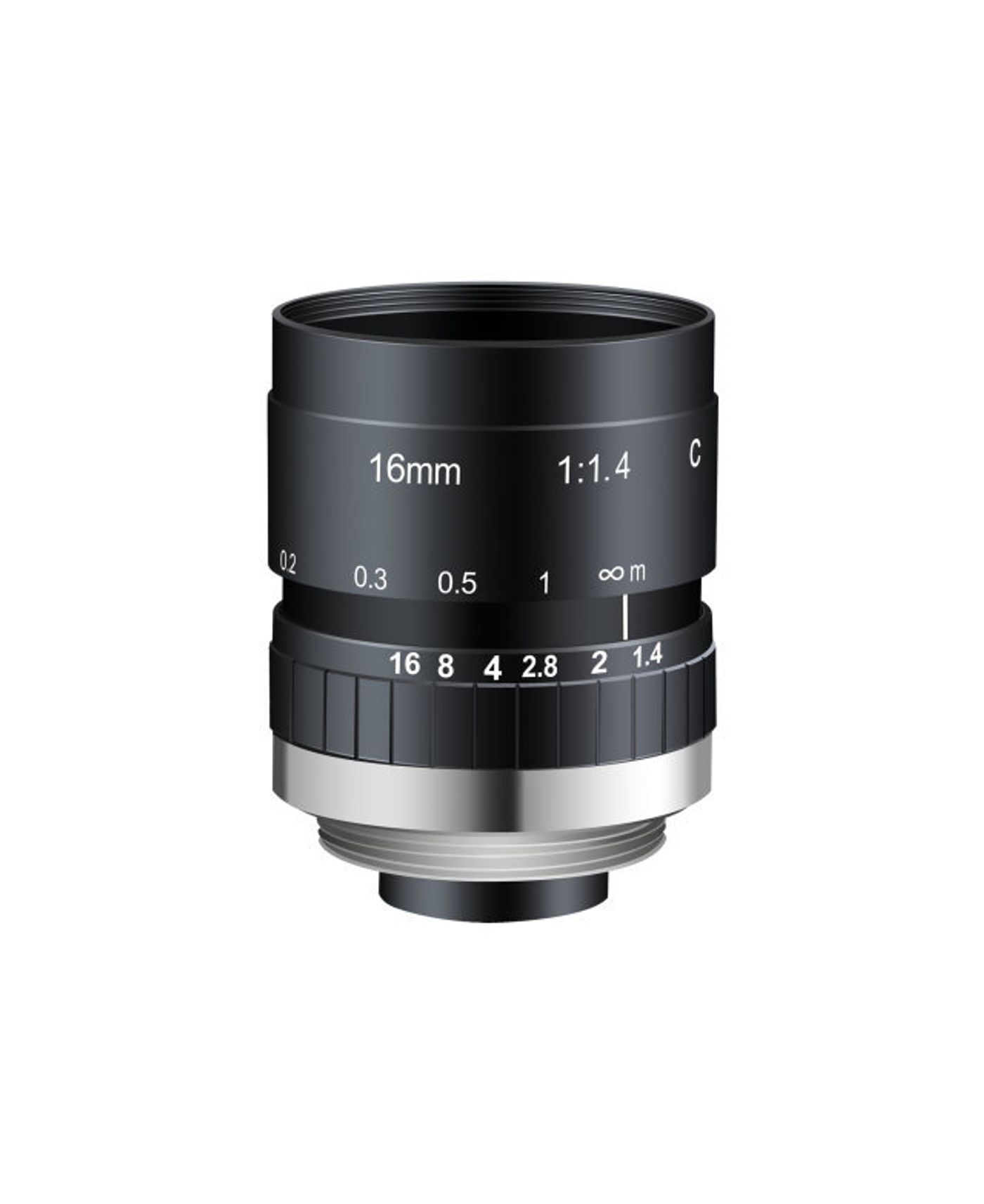

AZURE-1614MM 16mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
16 mmFocal Length
2/3"Sensor Size
100lp/mmResolving Power
CMount
F1.4~F16Aperture
0.2m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-1614MM.
- DimensionsΦ32.5x35.24mm
- Weight80g
- Back Focal Length9.87mm
- Filter ThreadM30.5 x 0.5
- MountC
Key Specifications
| Focal Length | 16 mm |
| Sensor Size | 2/3" |
| Resolving Power | 100lp/mm |
| Mount | C |
| Aperture | F1.4~F16 |
| Working Distance | 0.2m~∞ |
| Filter Thread | M30.5 x 0.5 |
| Field of View | 2/3"靶面 36°x 22.02°x29.12° |
| Distortion | <-1% |
| Back Focal Length | 9.87mm |
| Iris | M-Iris |
| Dimensions | Φ32.5x35.24mm |
| Weight | 80g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
