Macro and Zoom Machine Vision Lenses
Macro and macro zoom lenses for inspecting small features at high magnification, and zoom lenses for tasks that need a variable field of view from a fixed camera position. Samanstar own brand, with the sensor, magnification and working distance listed for every item.
- 0.02X - 10X
- C-Mount
- Fixed and variable magnification
Showing 2 of 2 configurations
Click a row to see full specifications

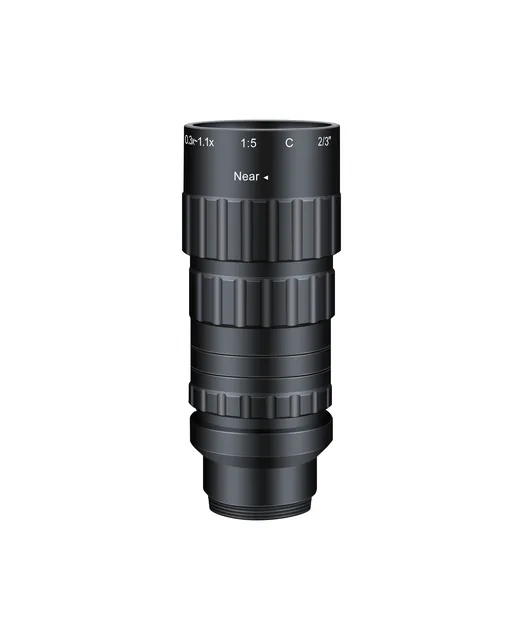

| Mag | 0.3X - 1.1X |
| Aperture | F7.6 - F32 |
| Sensor | 2/3" |
| Mount | C-Mount |
| Resolution | 3 MP |
| Wd | 0.083 m - 0.103 m |
| Filter | M34 x 0.5 |
| Distortion | -0.1%~+1.1% |
| Back_focal | 12.78 mm |
| Weight | 38 g |
SAM-MCZ01-2.2WD800-C11
0.10x - 0.22x Macro Lens (WD 800 - 410 mm)
- 0.10x - 0.22x
- F2.8
- 1.1"
- C-Mount
- 110 lp/mm
| Mag | 0.10x - 0.22x |
| Aperture | F2.8 |
| Sensor | 1.1" |
| Mount | C-Mount |
| Resolution | 110 lp/mm |
| Wd | 800 - 410 mm |
| Filter | M34 x 0.5 |
| Distortion | <0.2% |
| Back_focal | 30.21 mm |
| Dimensions | Φ43 x 73.28 mm |
