Zoom Machine Vision Lenses
Zoom lenses change focal length without moving the camera, so one station can cover several fields of view. Samanstar own brand, for 1/2.5 inch to 1 inch sensors.
- 8 - 60 mm
- C-Mount
- Manual zoom
Showing 2 of 2 configurations
Click a row to see full specifications

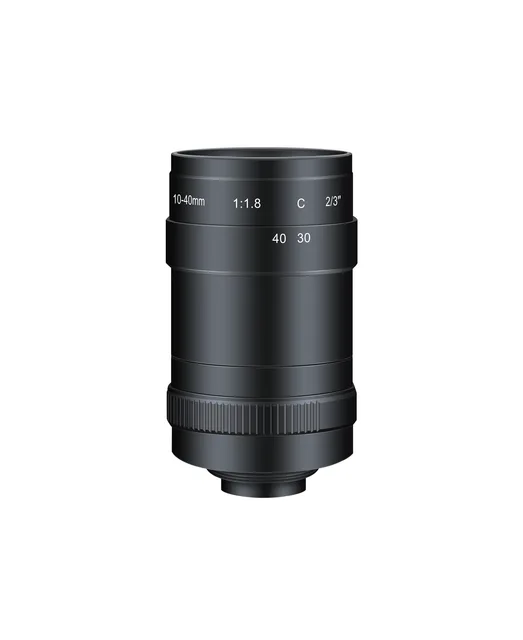

| Focal | 10 - 40 mm |
| Aperture | F1.8 - F16 |
| Sensor | 2/3" |
| Mount | C-Mount |
| Resolution | 120 lp/mm |
| Wd | 300 mm - inf |
| Filter | M40.5 x 0.5 |
| Distortion | -3.8%~3.3% |
| Fov | 47.5°~16.7° |
| Dimensions | Φ44.5 x 71.07 mm |
| Weight | 225 g |

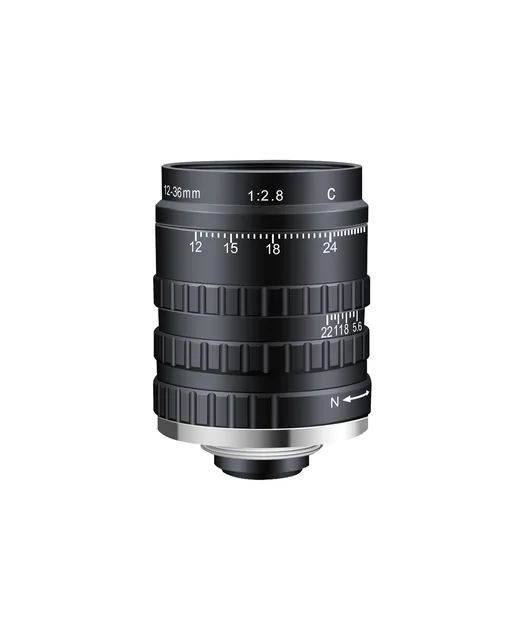

| Focal | 12 - 36 mm |
| Aperture | F2.8 - F22 |
| Sensor | 2/3" |
| Mount | C-Mount |
| Resolution | 150 lp/mm |
| Wd | 200 mm - inf |
| Filter | M37.5 x 0.5 |
| Distortion | -3.5%~2.1% |
| Fov | 47.8°~16° |
| Dimensions | Φ44.5 x 54.04 mm |
| Weight | 175.26 g |
Not sure which lens you need?
Give us four numbers and we will calculate the focal length or magnification and recommend two or three options.
