SAM-ZM12-36-C23-150LP — 12-36mm Zoom Lens (2/3", C-Mount)
Variable focal length lenses for inspection tasks that need more than one field of view.
12 - 36 mmFocal Length
2/3"Sensor Size
150 lp/mmResolving Power
C-MountMount
F2.8 - F22Aperture
200 mm - infWorking Distance
Dimensions

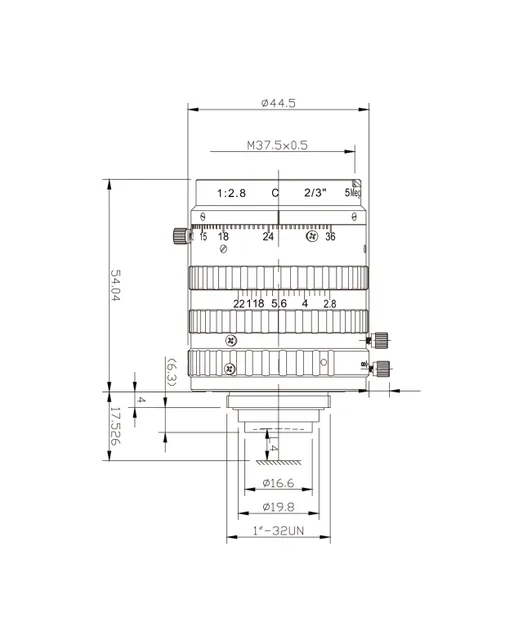

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ44.5 x 54.04 mm
- Weight175.26 g
- Filter ThreadM37.5 x 0.5
- MountC-Mount
Product overview
SAM-ZM12-36-C23-150LP (12-36mm Zoom Lens) is listed in the Zoom range. Catalogue values include 2/3" sensor, C-Mount, distortion -3.5%~2.1%, WD 200 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 12 - 36 mm |
| Sensor Size | 2/3" |
| Resolving Power | 150 lp/mm |
| Mount | C-Mount |
| Aperture | F2.8 - F22 |
| Working Distance | 200 mm - inf |
| Filter Thread | M37.5 x 0.5 |
| Field of View | 47.8°~16° |
| Distortion | -3.5%~2.1% |
| Dimensions | Φ44.5 x 54.04 mm |
| Weight | 175.26 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
