SAM-ZM10-40-C23
SAM-ZM10-40-C23 — 10-40mm Zoom Lens (2/3", C-Mount)
Variable focal length lenses for inspection tasks that need more than one field of view.
10 - 40 mmFocal Length
2/3"Sensor Size
120 lp/mmResolving Power
C-MountMount
F1.8 - F16Aperture
300 mm - infWorking Distance
Dimensions

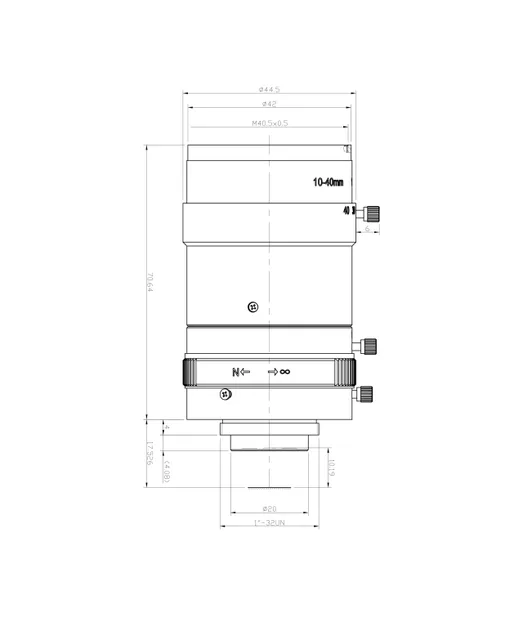

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ44.5 x 71.07 mm
- Weight225 g
- Filter ThreadM40.5 x 0.5
- MountC-Mount
Product overview
SAM-ZM10-40-C23 (10-40mm Zoom Lens) is listed in the Zoom range. Catalogue values include 2/3" sensor, C-Mount, distortion -3.8%~3.3%, WD 300 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 10 - 40 mm |
| Sensor Size | 2/3" |
| Resolving Power | 120 lp/mm |
| Mount | C-Mount |
| Aperture | F1.8 - F16 |
| Working Distance | 300 mm - inf |
| Filter Thread | M40.5 x 0.5 |
| Field of View | 47.5°~16.7° |
| Distortion | -3.8%~3.3% |
| Dimensions | Φ44.5 x 71.07 mm |
| Weight | 225 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
