SAM-MCZ01-2.2WD800-C11
SAM-MCZ01-2.2WD800-C11 — 0.10x - 0.22x Macro Lens (WD 800 - 410 mm, 1.1", C-Mount)
High magnification and variable focal length optics for small features and flexible fields of view.
0.10x - 0.22xMagnification
1.1"Sensor Size
110 lp/mmResolving Power
C-MountMount
F2.8Aperture
800 - 410 mmWorking Distance
Dimensions
Mechanical dimensions

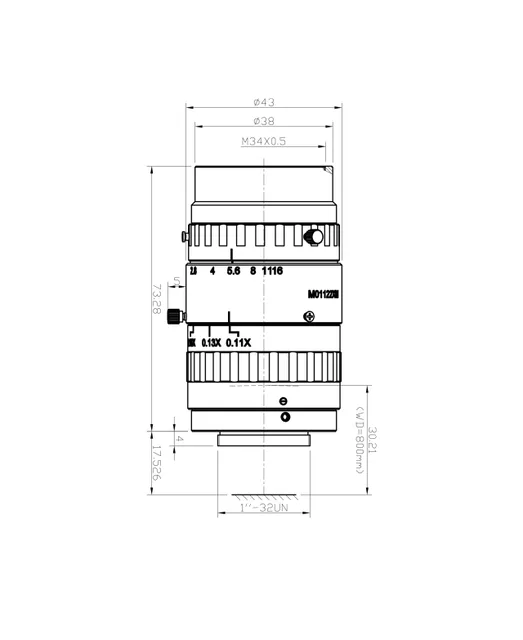

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ43 x 73.28 mm
- Back Focal Length30.21 mm
- Filter ThreadM34 x 0.5
- MountC-Mount
Product overview
SAM-MCZ01-2.2WD800-C11 (0.10x - 0.22x Macro Lens (WD 800 - 410 mm)) is listed in the Macro and Zoom range. Catalogue values include 1.1" sensor, C-Mount, distortion <0.2%, WD 800 - 410 mm, 0.10x - 0.22x magnification.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Magnification | 0.10x - 0.22x |
| Sensor Size | 1.1" |
| Resolving Power | 110 lp/mm |
| Mount | C-Mount |
| Aperture | F2.8 |
| Working Distance | 800 - 410 mm |
| Filter Thread | M34 x 0.5 |
| Distortion | <0.2% |
| Back Focal Length | 30.21 mm |
| Dimensions | Φ43 x 73.28 mm |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether SAM-MCZ01-2.2WD800-C11 fits, or recommend a better match.
