AZURE-1618M10M

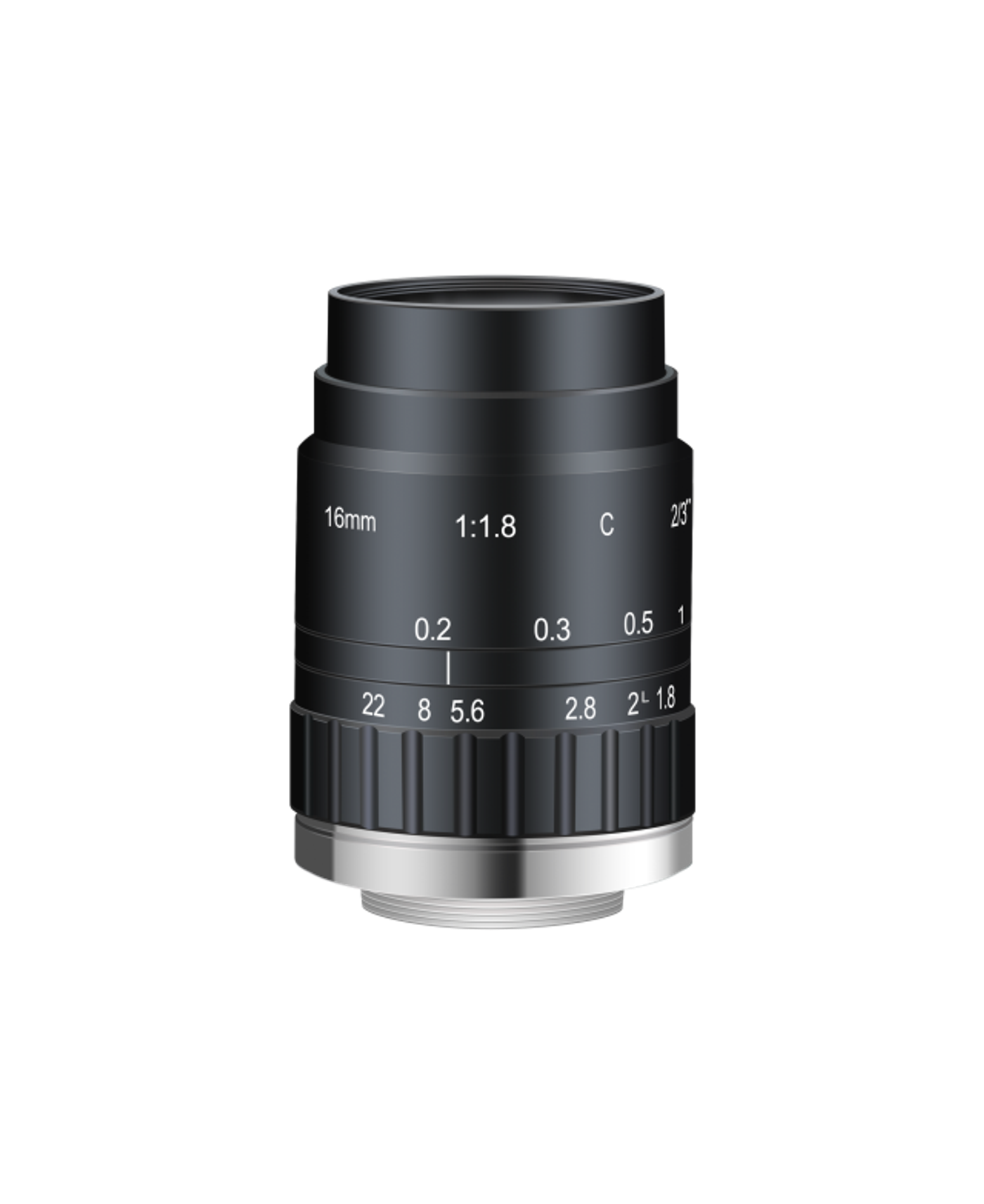

AZURE-1618M10M 16mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
16 mmFocal Length
2/3”Sensor Size
200IP/mmResolving Power
CMount
F1.8~F22Aperture
0.2m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-1618M10M.
- DimensionsΦ38×53.2mm
- Weight140g
- Back Focal Length14.93mm
- Filter ThreadM30.5×0.5
- MountC
Key Specifications
| Focal Length | 16 mm |
| Sensor Size | 2/3” |
| Resolving Power | 200IP/mm |
| Mount | C |
| Aperture | F1.8~F22 |
| Working Distance | 0.2m~∞ |
| Filter Thread | M30.5×0.5 |
| Field of View | 1/2“靶面 28.07°×17.06°×22.62°; 1/3“靶面 21.24°×12.84°×17.06° |
| Distortion | <-0.2% |
| Back Focal Length | 14.93mm |
| Iris | M-Iris |
| Dimensions | Φ38×53.2mm |
| Weight | 140g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
