AZURE-1618M3M

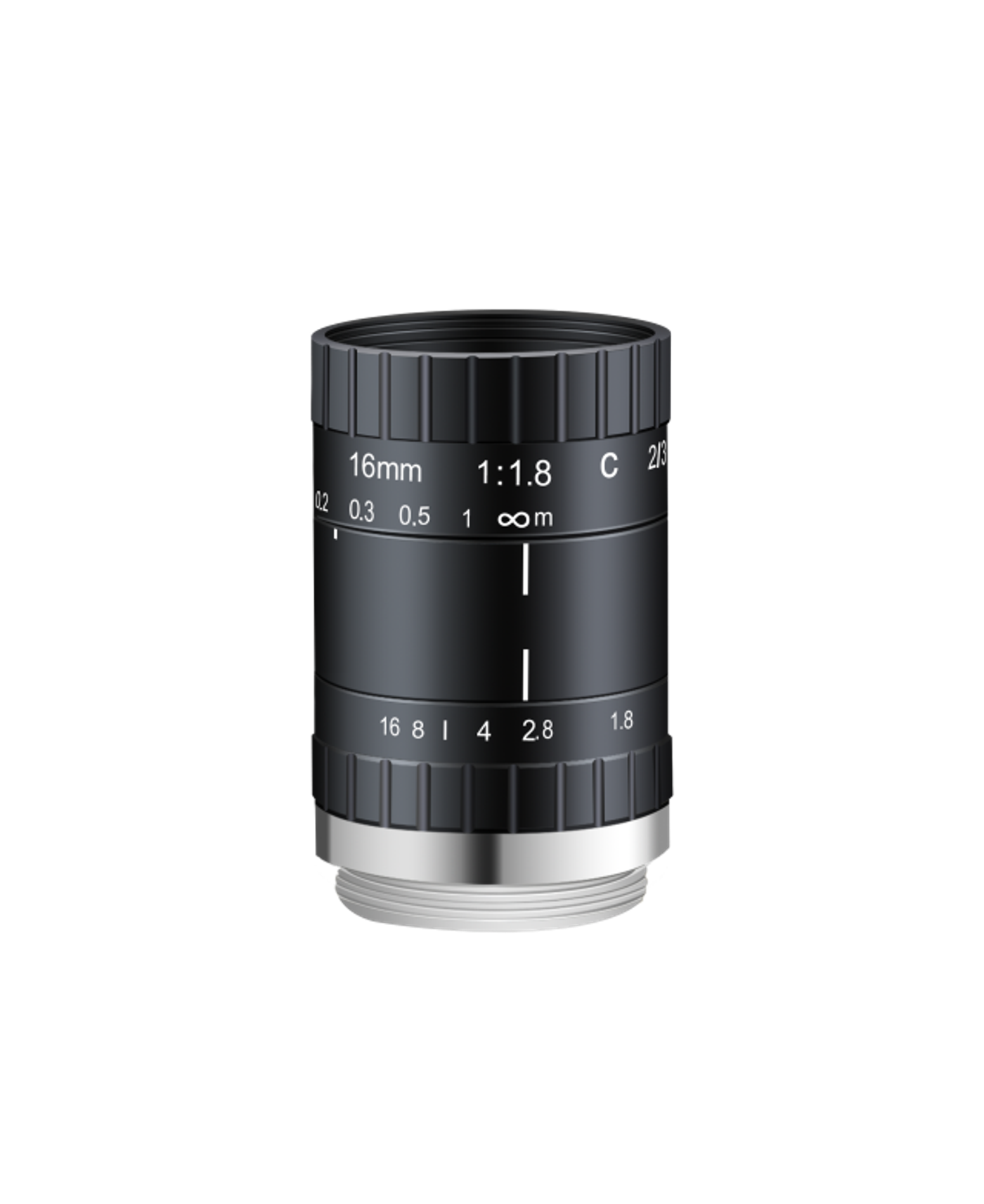

AZURE-1618M3M 16mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
16 mmFocal Length
2/3"Sensor Size
120lp/mmResolving Power
CMount
F1.8~F16Aperture
0.1m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-1618M3M.
- DimensionsΦ29×41.47mm
- Weight71g
- Back Focal Length13.50mm
- Filter ThreadM27×0.5
- MountC
Key Specifications
| Focal Length | 16 mm |
| Sensor Size | 2/3" |
| Resolving Power | 120lp/mm |
| Mount | C |
| Aperture | F1.8~F16 |
| Working Distance | 0.1m~∞ |
| Filter Thread | M27×0.5 |
| Field of View | 2/3"靶面 36.8°×22.5°×29.8° |
| Distortion | <-0.35% |
| Back Focal Length | 13.50mm |
| Iris | M-Iris |
| Dimensions | Φ29×41.47mm |
| Weight | 71g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-1618M3M fits, or recommend a better match.
