AZURE-0814M3M

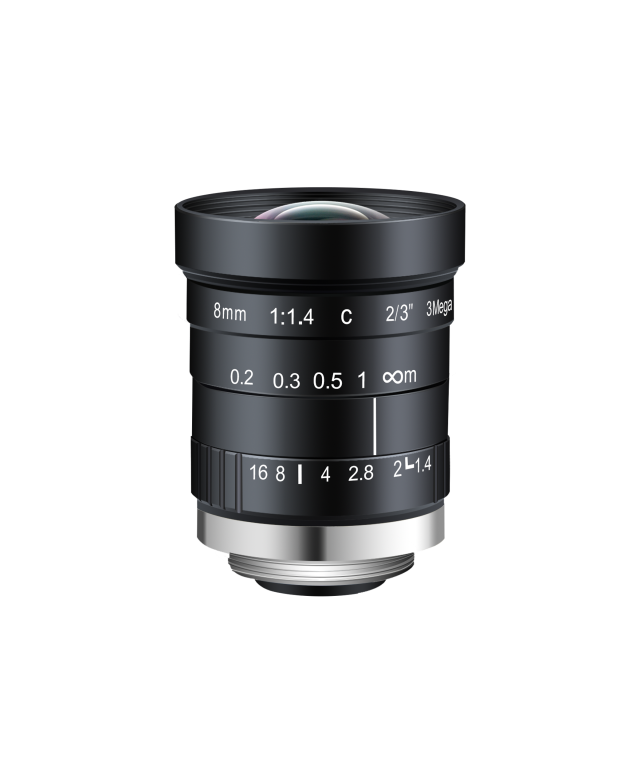

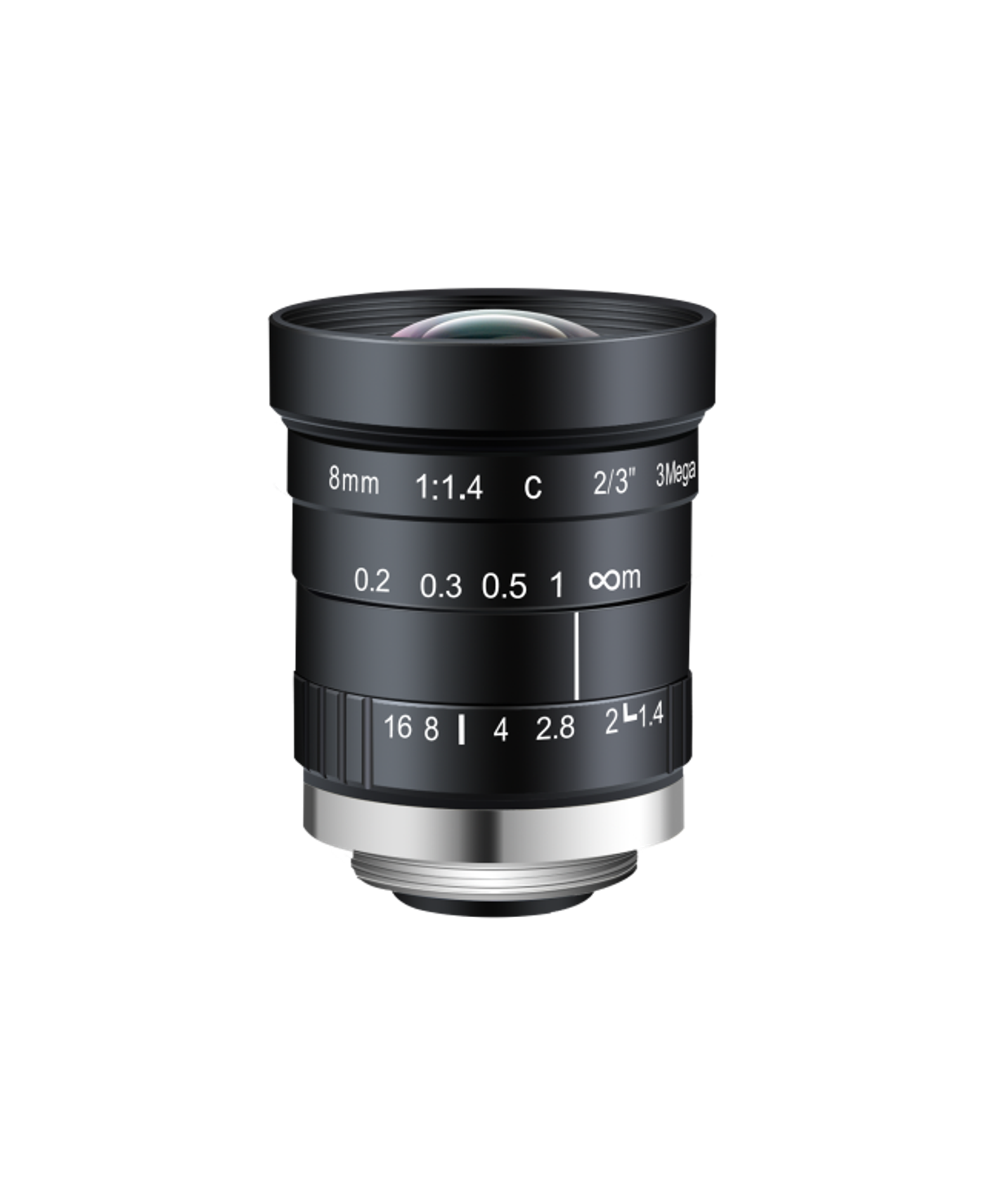

AZURE-0814M3M 8mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
8 mmFocal Length
2/3"Sensor Size
120lp/mmResolving Power
CMount
F1.4~F16Aperture
0.1m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0814M3M.
- DimensionsΦ39×46.15mm
- Weight220g
- Back Focal Length12.56mm
- Filter ThreadM37×0.5
- MountC
Key Specifications
| Focal Length | 8 mm |
| Sensor Size | 2/3" |
| Resolving Power | 120lp/mm |
| Mount | C |
| Aperture | F1.4~F16 |
| Working Distance | 0.1m~∞ |
| Filter Thread | M37×0.5 |
| Field of View | 2/3"靶面 64.26°×41.66°×53.76° |
| Distortion | <0.7% |
| Back Focal Length | 12.56mm |
| Iris | M-Iris |
| Dimensions | Φ39×46.15mm |
| Weight | 220g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
