SAM-FA12F28-C23-250LP

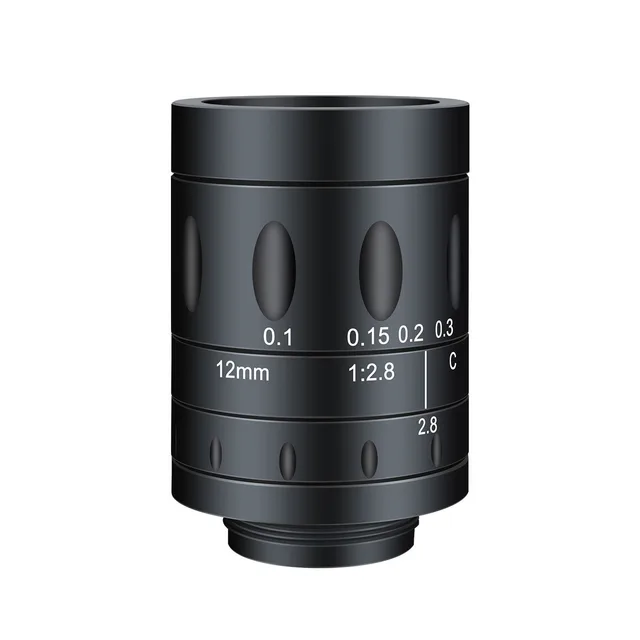

SAM-FA12F28-C23-250LP — 12mm Machine Vision Lens (2/3", C-Mount)
Fixed focal lenses for automation, positioning, code reading and general inspection.
12 mmFocal Length
2/3"Sensor Size
250 lp/mmResolving Power
C-MountMount
F2.8 - F22Aperture
100 mm - infWorking Distance
Dimensions

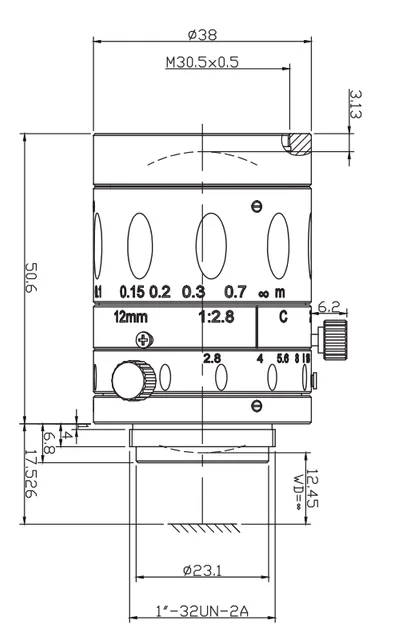

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ38 x 50.6 mm
- Weight150 g
- Back Focal Length12.45 mm
- Filter ThreadM30.5 x 0.5
- MountC-Mount
Product overview
SAM-FA12F28-C23-250LP (12mm Machine Vision Lens) is listed in the FA Lenses range. Catalogue values include 2/3" sensor, C-Mount, distortion <-0.33%, WD 100 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 12 mm |
| Sensor Size | 2/3" |
| Resolving Power | 250 lp/mm |
| Mount | C-Mount |
| Aperture | F2.8 - F22 |
| Working Distance | 100 mm - inf |
| Filter Thread | M30.5 x 0.5 |
| Field of View | 51.66° x 36.53° x 36.53° |
| Distortion | <-0.33% |
| Back Focal Length | 12.45 mm |
| Iris | Manual |
| Dimensions | Φ38 x 50.6 mm |
| Weight | 150 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
