HN-2516-5M-C2/3X

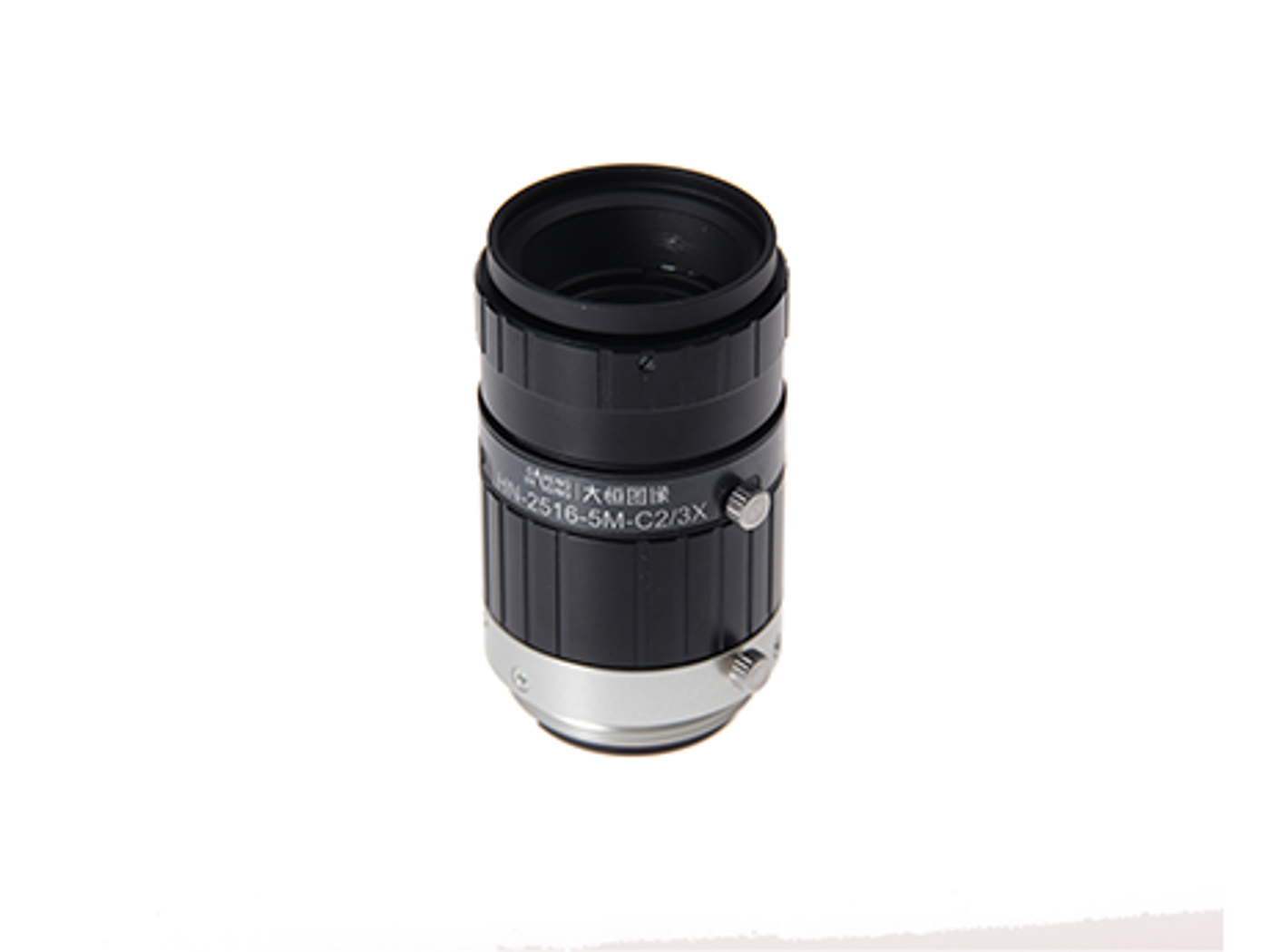

Daheng HN-2516-5M-C2/3X 25mm 5 MP Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
2/3"Sensor Size
5 MPResolution
C-mountMount
F1.6 - F16Aperture
100 mm - ∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HN-2516-5M-C2/3X.
- DimensionsΦ29.5 × 46.5 mm (D × L)
- Weight72 g
- Filter ThreadM25.5 × 0.5
- MountC-mount
Key features
- High resolution across the whole field
- Compact, slim barrel
- Flexible mounting in tight spaces
- Wide camera compatibility
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 2/3" |
| Resolution | 5 MP |
| Mount | C-mount |
| Aperture | F1.6 - F16 |
| Working Distance | 100 mm - ∞ |
| MOD | 100 mm |
| Filter Thread | M25.5 × 0.5 |
| Field of View | 20.0° × 15.0° |
| Distortion | -0.07% |
| Focus Range | 0.1 m - ∞ |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ29.5 × 46.5 mm (D × L) |
| Weight | 72 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
