HN-1614-2M-C2/3X

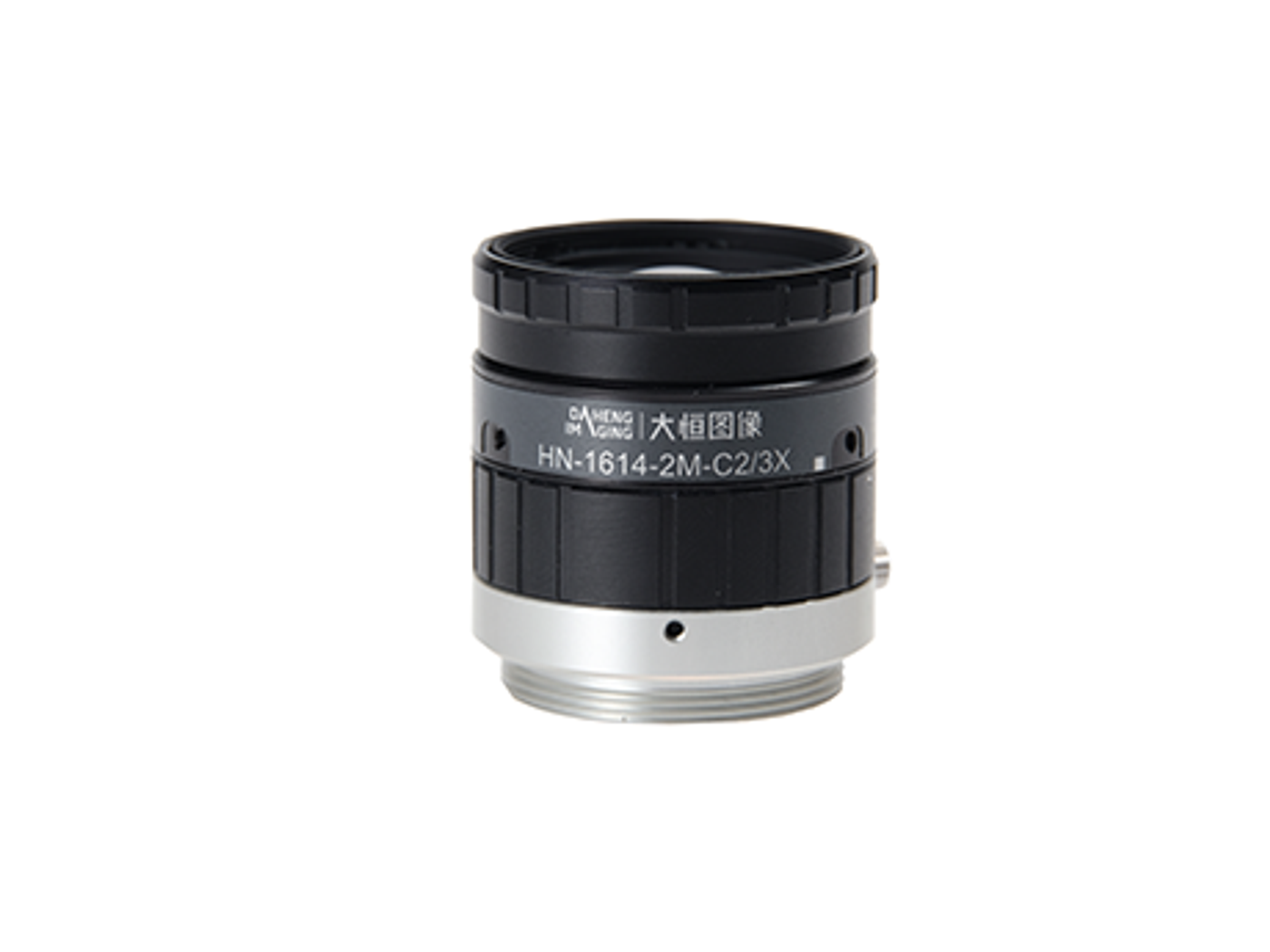

Daheng HN-1614-2M-C2/3X 16mm 2MP Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
16 mmFocal Length
2/3"Sensor Size
2 MPResolution
C-MountMount
F1.4 - F16Aperture
100 mm - ∞Working Distance
Dimensions

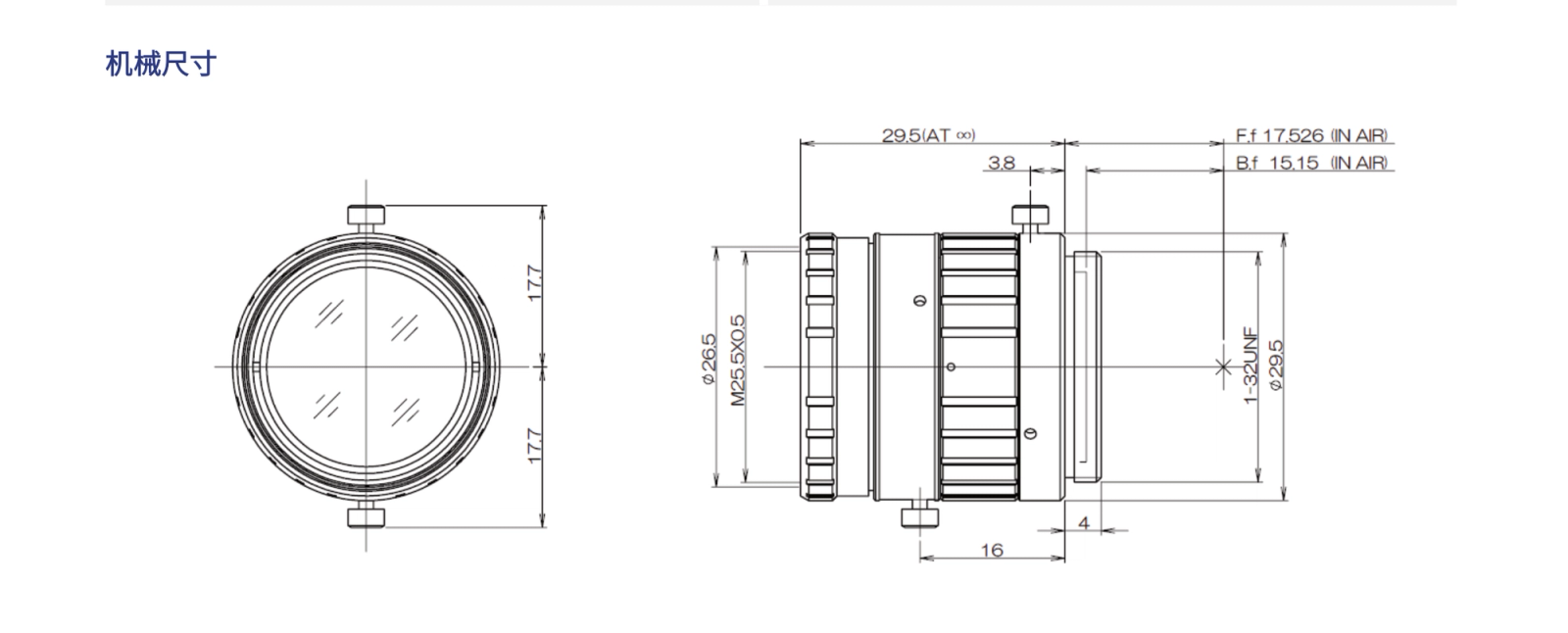

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ29.5 × 29.5 mm (D × L)
- Weight40 g
- Filter ThreadM25.5 × 0.5
- MountC-Mount
Key features
- High optical performance
- Shock and vibration resistance rated to 10 G
- Compact, lightweight barrel
- Simple and quick to install
Key Specifications
| Focal Length | 16 mm |
| Sensor Size | 2/3" |
| Resolution | 2 MP |
| Mount | C-Mount |
| Aperture | F1.4 - F16 |
| Working Distance | 100 mm - ∞ |
| mod | 100 mm |
| Filter Thread | M25.5 × 0.5 |
| Field of View | 30.5° × 22.9° (H × V) |
| Distortion | -0.87% |
| Focus Range | 0.1 m - ∞ |
| Pixel Size | 6.2 µm |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ29.5 × 29.5 mm (D × L) |
| Weight | 40 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
