HN-P-2518-10M-C2/3

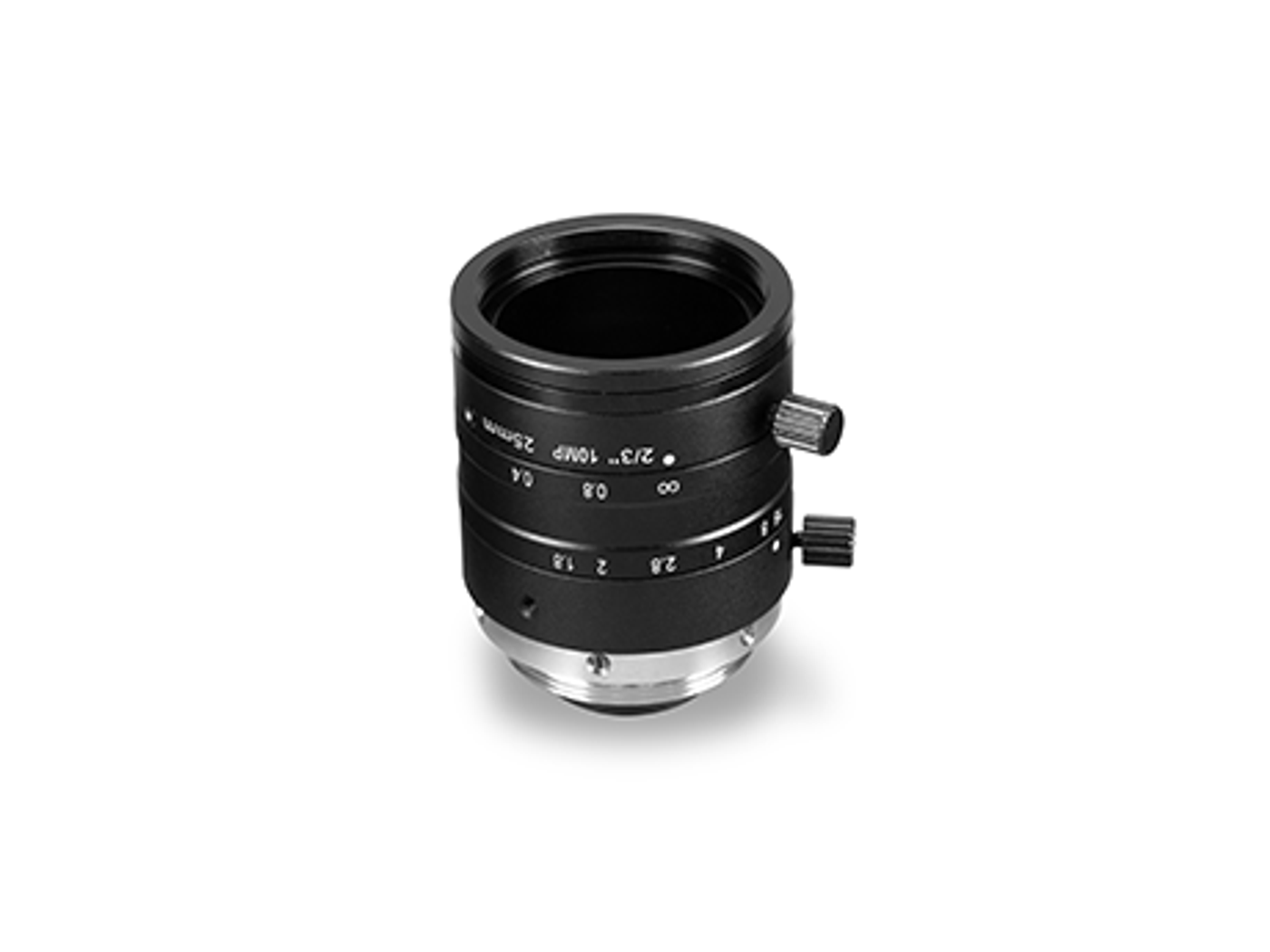

Daheng HN-P-2518-10M-C2/3 25mm 10 MP Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
2/3"Sensor Size
10 MPResolution
C-mountMount
F1.8 - F16Aperture
150 mm - ∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HN-P-2518-10M-C2/3.
- DimensionsΦ33.0 × 42.7 mm (D × L)
- Filter ThreadM27 × 0.5
- MountC-mount
Key features
- Designed for machine vision
- Suits cameras up to 10 MP
- 2.4 µm pixel-pitch optical design
- Fast aperture
- Very low optical distortion
- Compact barrel
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 2/3" |
| Resolution | 10 MP |
| Mount | C-mount |
| Aperture | F1.8 - F16 |
| Working Distance | 150 mm - ∞ |
| MOD | 150 mm |
| Filter Thread | M27 × 0.5 |
| Field of View | 18.3° × 13.8° (H × V) |
| Distortion | ±0.15% |
| Focus Range | 0.15 m - ∞ |
| Pixel Size | 2.4 µm |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ33.0 × 42.7 mm (D × L) |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
