AZURE-5018M3M

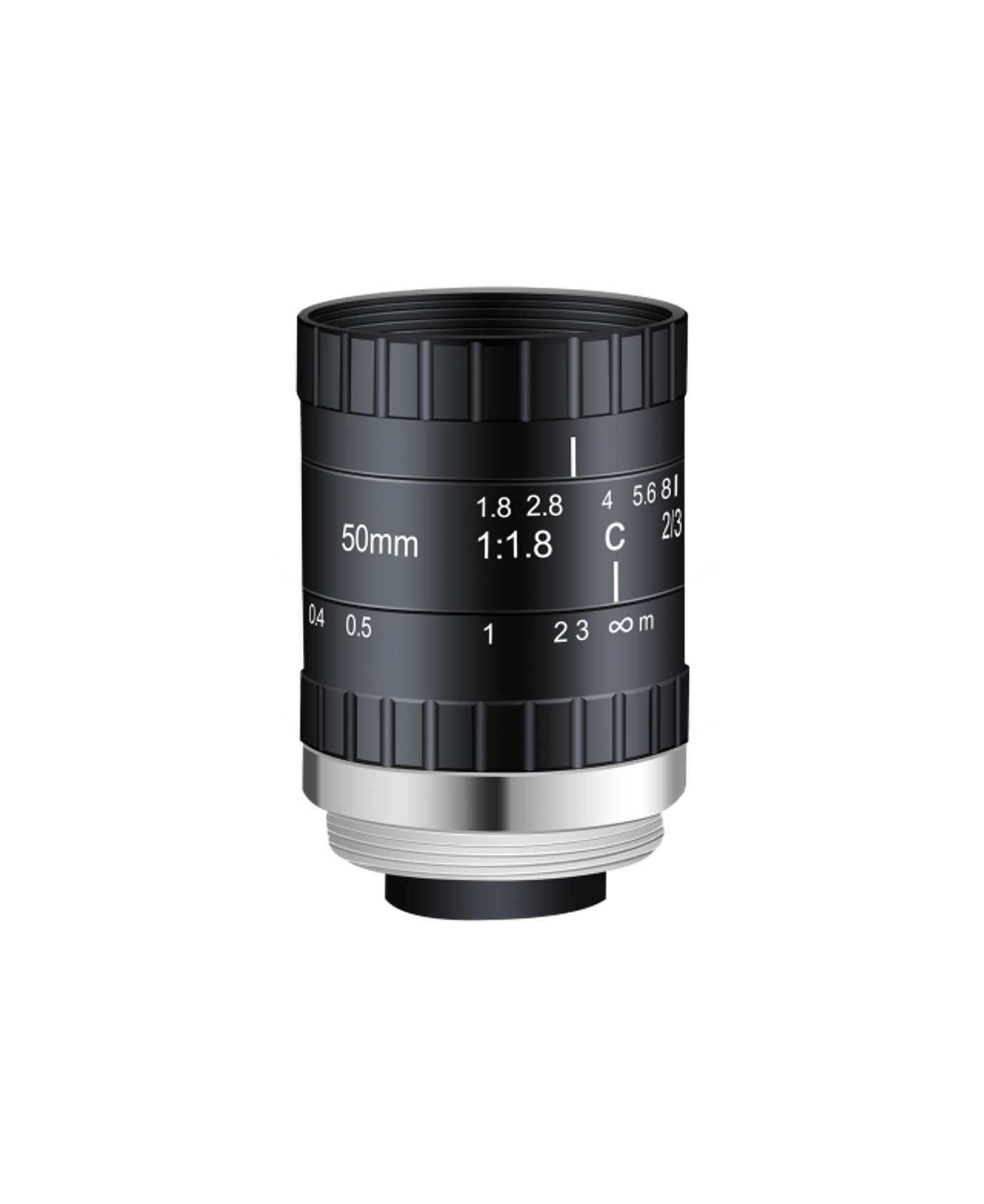

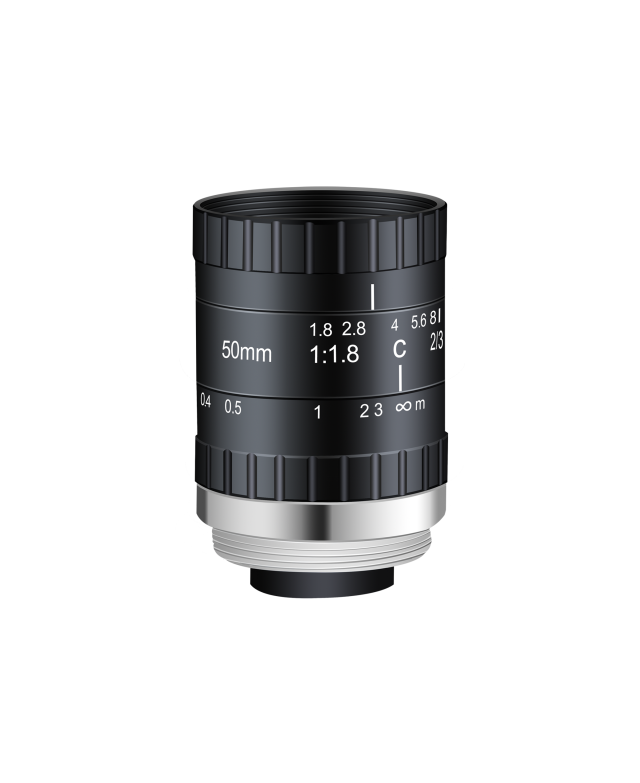

AZURE-5018M3M 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
2/3"Sensor Size
120lp/mmResolving Power
CMount
F1.8~F16Aperture
0.5m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-5018M3M.
- DimensionsΦ29×36.4mm
- Weight60g
- Back Focal Length11.35mm
- Filter ThreadM27×0.5
- MountC
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 2/3" |
| Resolving Power | 120lp/mm |
| Mount | C |
| Aperture | F1.8~F16 |
| Working Distance | 0.5m~∞ |
| Filter Thread | M27×0.5 |
| Field of View | 2/3"靶面 11.52°×6.86°×9.14° |
| Distortion | <-0.1% |
| Back Focal Length | 11.35mm |
| Iris | M-Iris |
| Dimensions | Φ29×36.4mm |
| Weight | 60g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
