AZURE-5018M10M

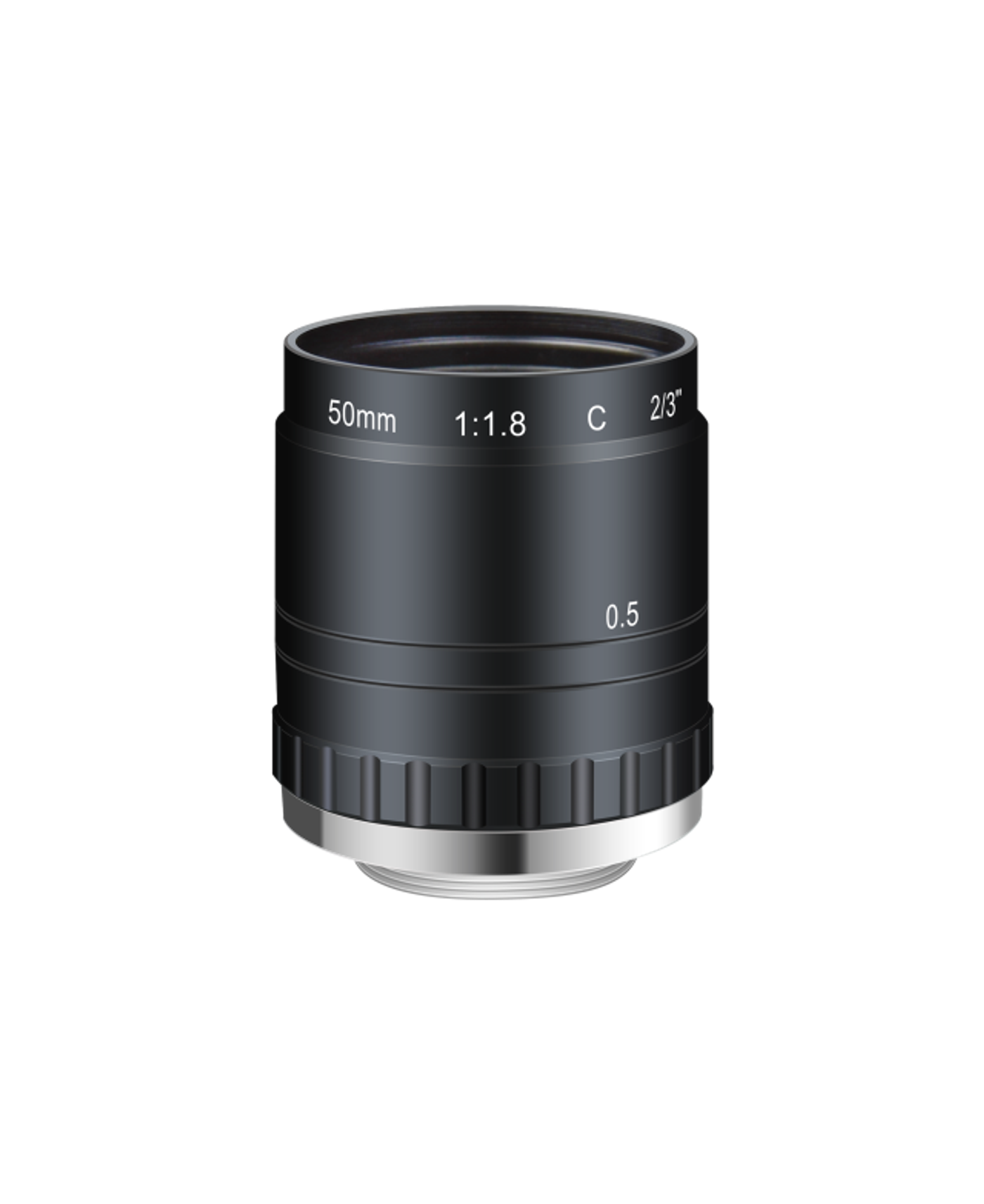

AZURE-5018M10M 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
2/3”Sensor Size
200IP/mmResolving Power
CMount
F1.8~F22Aperture
0.5m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-5018M10M.
- DimensionsΦ43.8×43.5mm
- Weight124g
- Back Focal Length13.85mm
- Filter ThreadM40.5×0.5
- MountC
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 2/3” |
| Resolving Power | 200IP/mm |
| Mount | C |
| Aperture | F1.8~F22 |
| Working Distance | 0.5m~∞ |
| Filter Thread | M40.5×0.5 |
| Field of View | 1/2“靶面 8.35°×6.68°×5.01°; 1/3“靶面 6.26°×3.76°×6.68° |
| Distortion | <-0.1% |
| Back Focal Length | 13.85mm |
| Iris | M-Iris |
| Dimensions | Φ43.8×43.5mm |
| Weight | 124g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-5018M10M fits, or recommend a better match.
