AZURE-5020SF

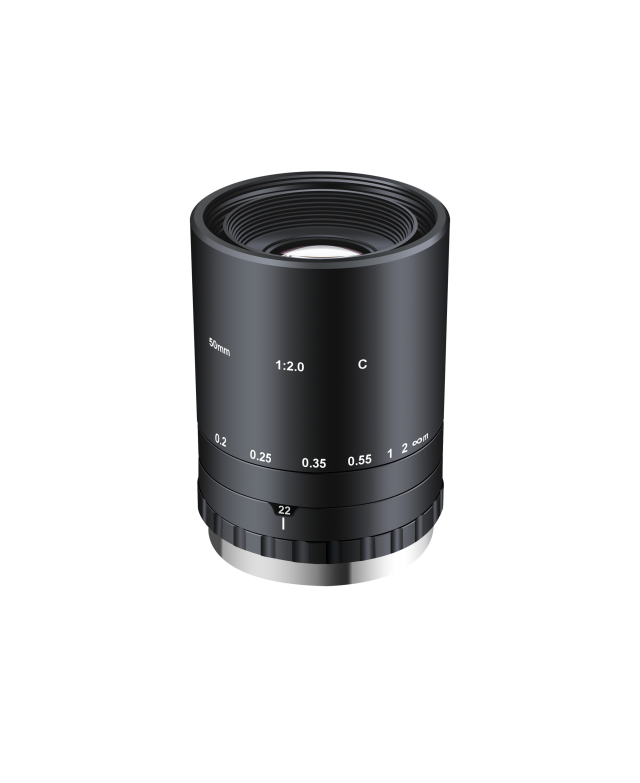

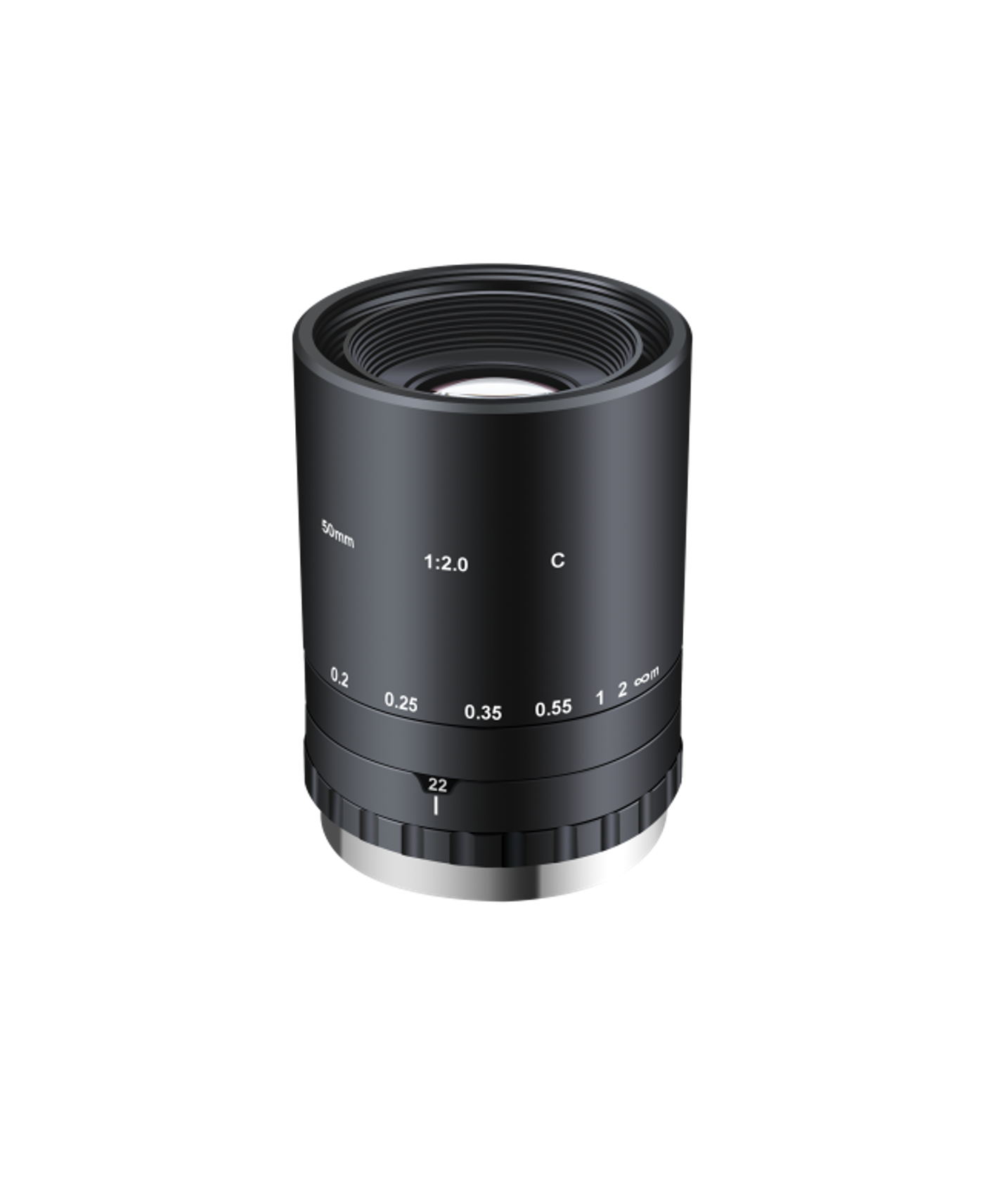

AZURE-5020SF 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
1.1”Sensor Size
200lp/mmResolving Power
CMount
F2.0~F22Aperture
0.2~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-5020SF.
- DimensionsΦ59×81mm
- Weight-
- Back Focal Length11.16mm
- Filter ThreadM52×0.75
- MountC
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 1.1” |
| Resolving Power | 200lp/mm |
| Mount | C |
| Aperture | F2.0~F22 |
| Working Distance | 0.2~∞m |
| Filter Thread | M52×0.75 |
| Field of View | 1.1“靶面 13.68°×8.47°×11.30° |
| Distortion | <0.08% |
| Back Focal Length | 11.16mm |
| Iris | Manual |
| Dimensions | Φ59×81mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-5020SF fits, or recommend a better match.
