HN-P-2524-20M-C1.1/1

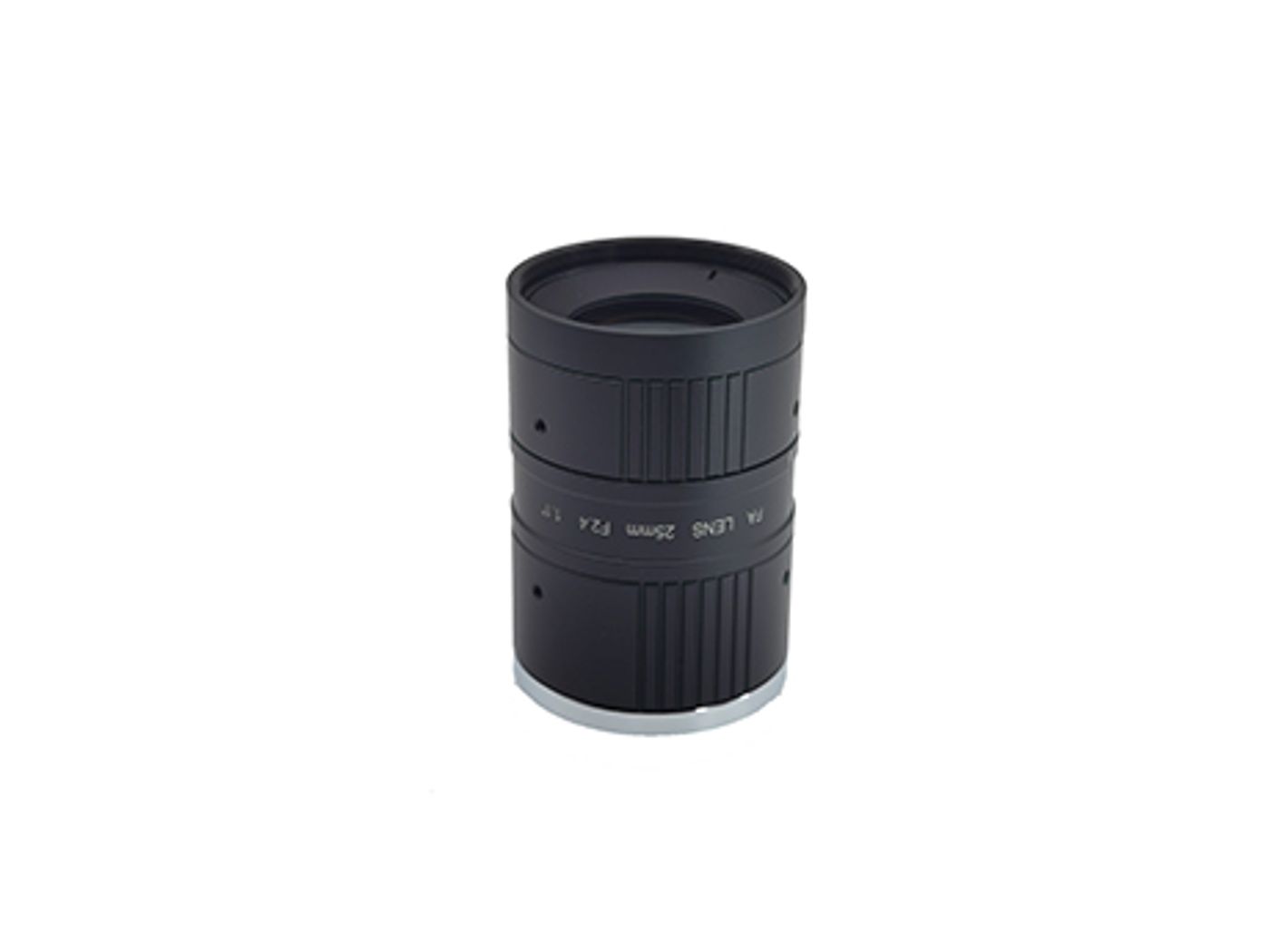

Daheng HN-P-2524-20M-C1.1/1 25mm 20 MP Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
1.1"Sensor Size
20 MPResolution
C-mountMount
F2.4 - F16Aperture
150 mm - ∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HN-P-2524-20M-C1.1/1.
- DimensionsΦ40.0 × 58.44 mm (D × L)
- Weight164 g
- Filter ThreadM37 × 0.5
- MountC-mount
Key features
- Designed for machine vision
- Suits cameras up to 20 MP
- 2.74 µm pixel-pitch optical design
- Fast aperture
- Very low optical distortion
- Compact barrel
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 1.1" |
| Resolution | 20 MP |
| Mount | C-mount |
| Aperture | F2.4 - F16 |
| Working Distance | 150 mm - ∞ |
| MOD | 150 mm |
| Filter Thread | M37 × 0.5 |
| Field of View | 30.47° × 22.53° (H × V) |
| Distortion | -0.08% |
| Focus Range | 0.15 m - ∞ |
| Pixel Size | 2.74 µm |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ40.0 × 58.44 mm (D × L) |
| Weight | 164 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
