AZURE-5040CM

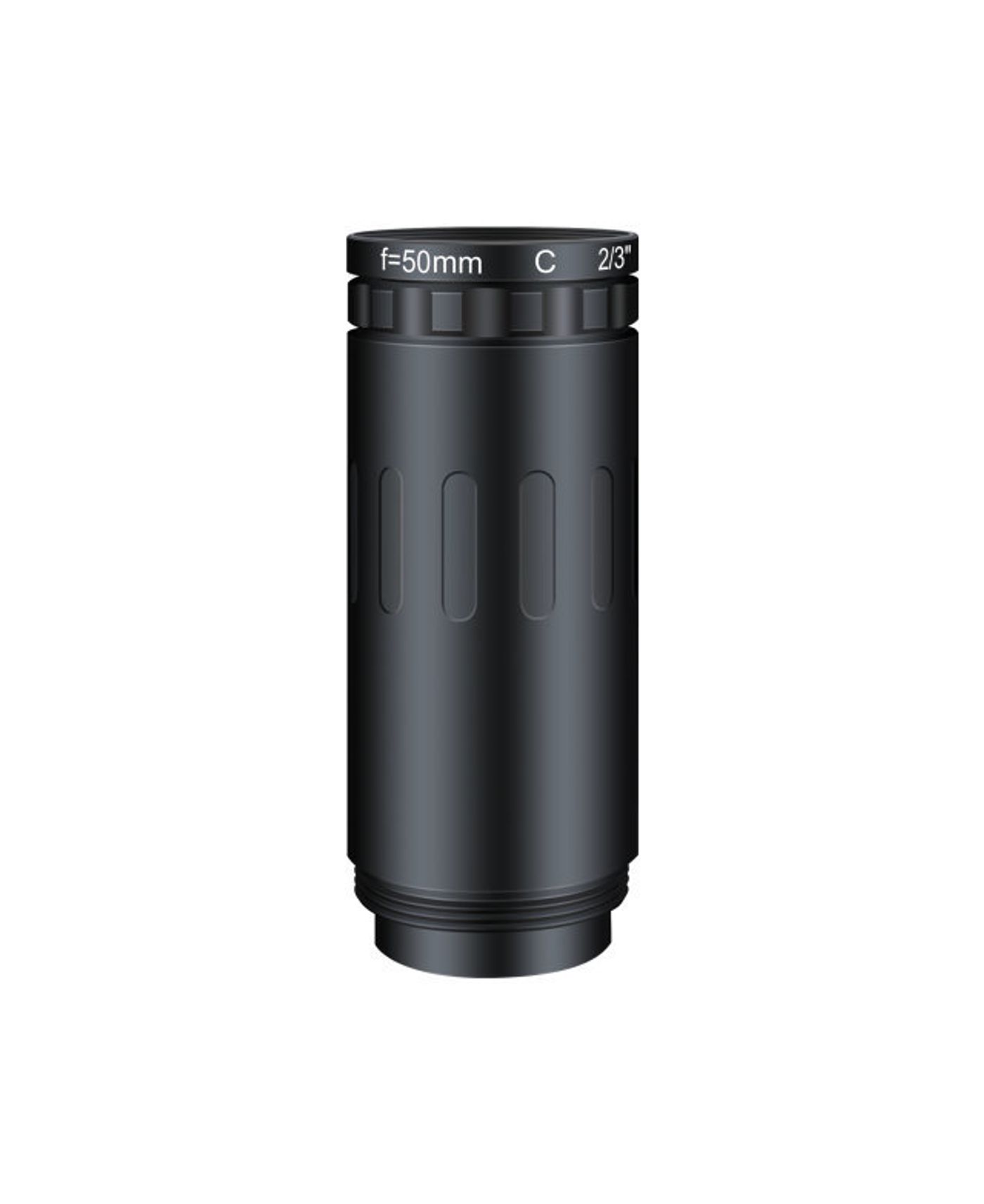

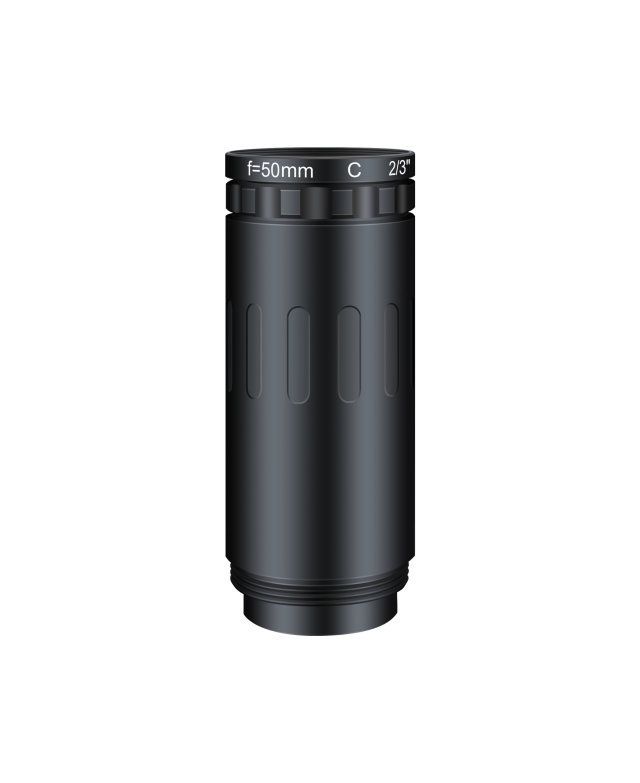

AZURE-5040CM 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
2/3"Sensor Size
180 lp/mmResolving Power
CMount
F4.0Aperture
0.5~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-5040CM.
- DimensionsΦ27x58.8mm
- Weight-
- Back Focal Length29.78mm
- Filter ThreadM25.5x0.5
- MountC
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 2/3" |
| Resolving Power | 180 lp/mm |
| Mount | C |
| Aperture | F4.0 |
| Working Distance | 0.5~∞m |
| Filter Thread | M25.5x0.5 |
| Field of View | 2/3"靶面 12.58°×7.56°×10.08° |
| Distortion | <-0.25% |
| Back Focal Length | 29.78mm |
| Iris | Fixed |
| Dimensions | Φ27x58.8mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
