AZURE-0828CF

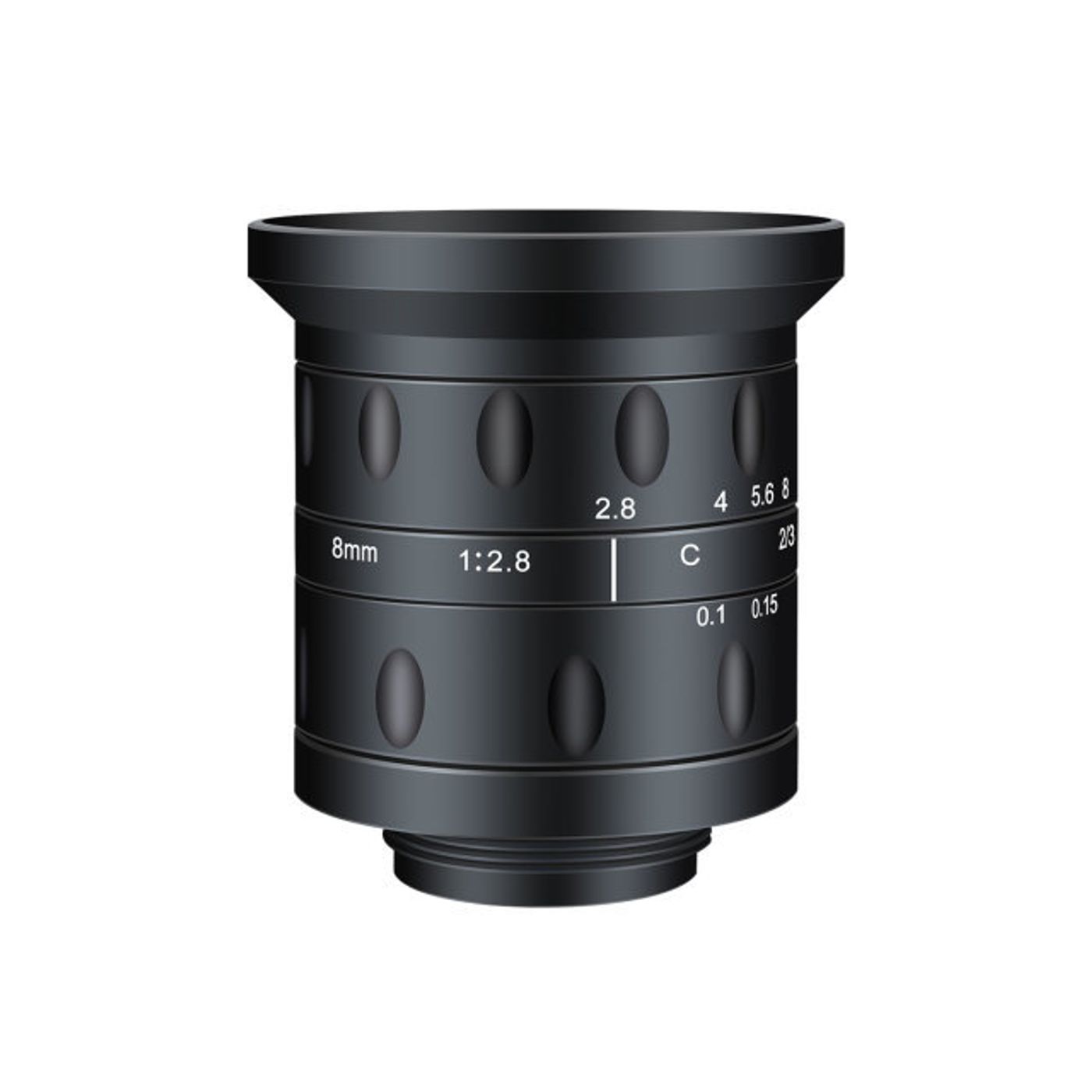

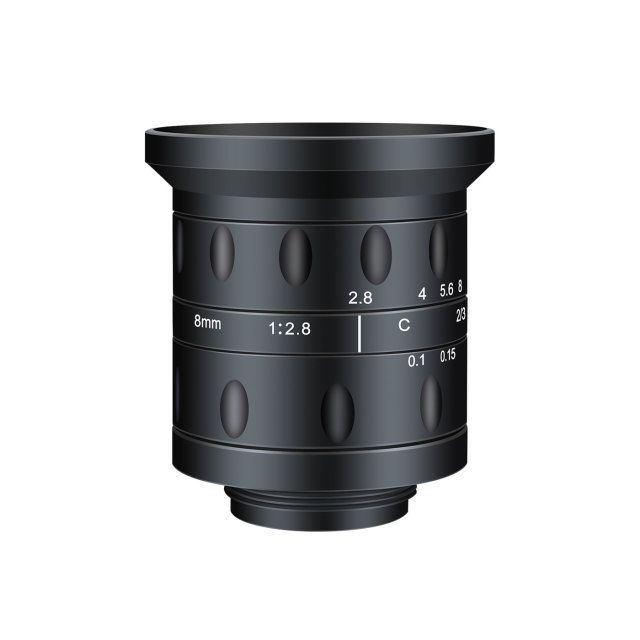

AZURE-0828CF 8mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
8 mmFocal Length
2/3"Sensor Size
250 lp/mmResolving Power
CMount
F2.8~F22Aperture
0.1~2.5mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0828CF.
- DimensionsΦ45x43.2mm
- Weight127.5g
- Back Focal Length12.52mm
- Filter ThreadM43x0.75
- MountC
Key Specifications
| Focal Length | 8 mm |
| Sensor Size | 2/3" |
| Resolving Power | 250 lp/mm |
| Mount | C |
| Aperture | F2.8~F22 |
| Working Distance | 0.1~2.5m |
| Filter Thread | M43x0.75 |
| Field of View | 2/3"(1:1)靶面 68.05°×50.78°×50.78° |
| Distortion | <-0.98% |
| Back Focal Length | 12.52mm |
| Iris | Manual |
| Dimensions | Φ45x43.2mm |
| Weight | 127.5g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-0828CF fits, or recommend a better match.
