AZURE-5025XF

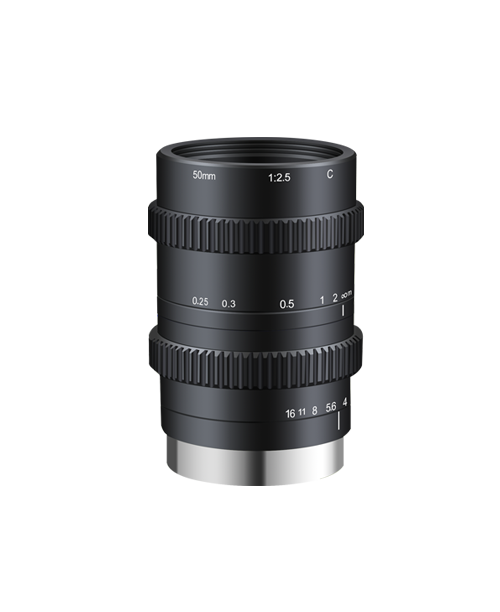

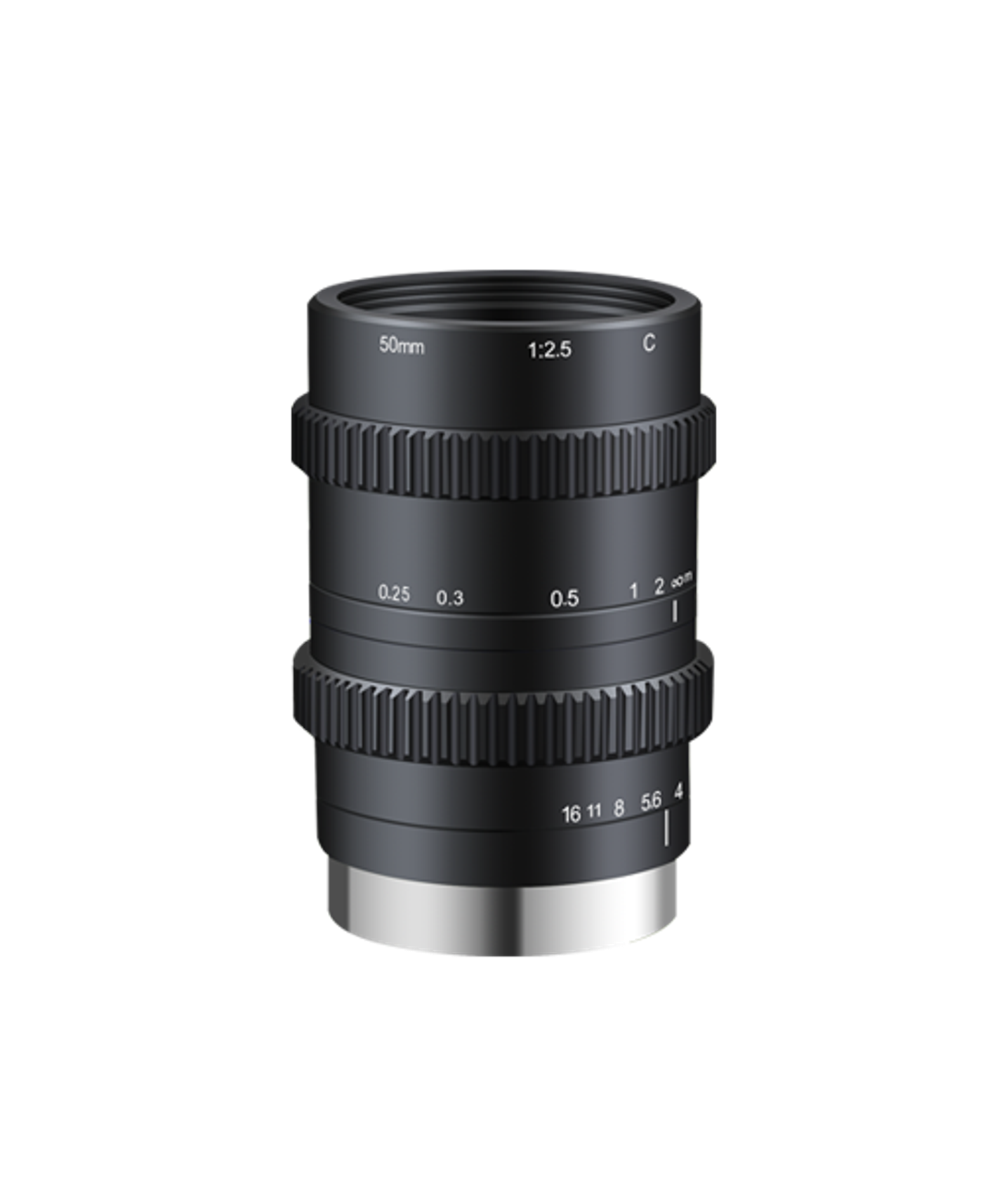

AZURE-5025XF 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
4/3”Sensor Size
180lp/mmResolving Power
CMount
F2.5~F16Aperture
0.25~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-5025XF.
- DimensionsΦ57.6×85.53mm
- Weight-
- Back Focal Length17.62mm
- Filter ThreadM46×0.75
- MountC
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 4/3” |
| Resolving Power | 180lp/mm |
| Mount | C |
| Aperture | F2.5~F16 |
| Working Distance | 0.25~∞m |
| Filter Thread | M46×0.75 |
| Field of View | 4/3“靶面 22.38°×13.55°×18.00° |
| Distortion | <0.076% |
| Back Focal Length | 17.62mm |
| Iris | Manual |
| Dimensions | Φ57.6×85.53mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-5025XF fits, or recommend a better match.
