AZURE-1825XF

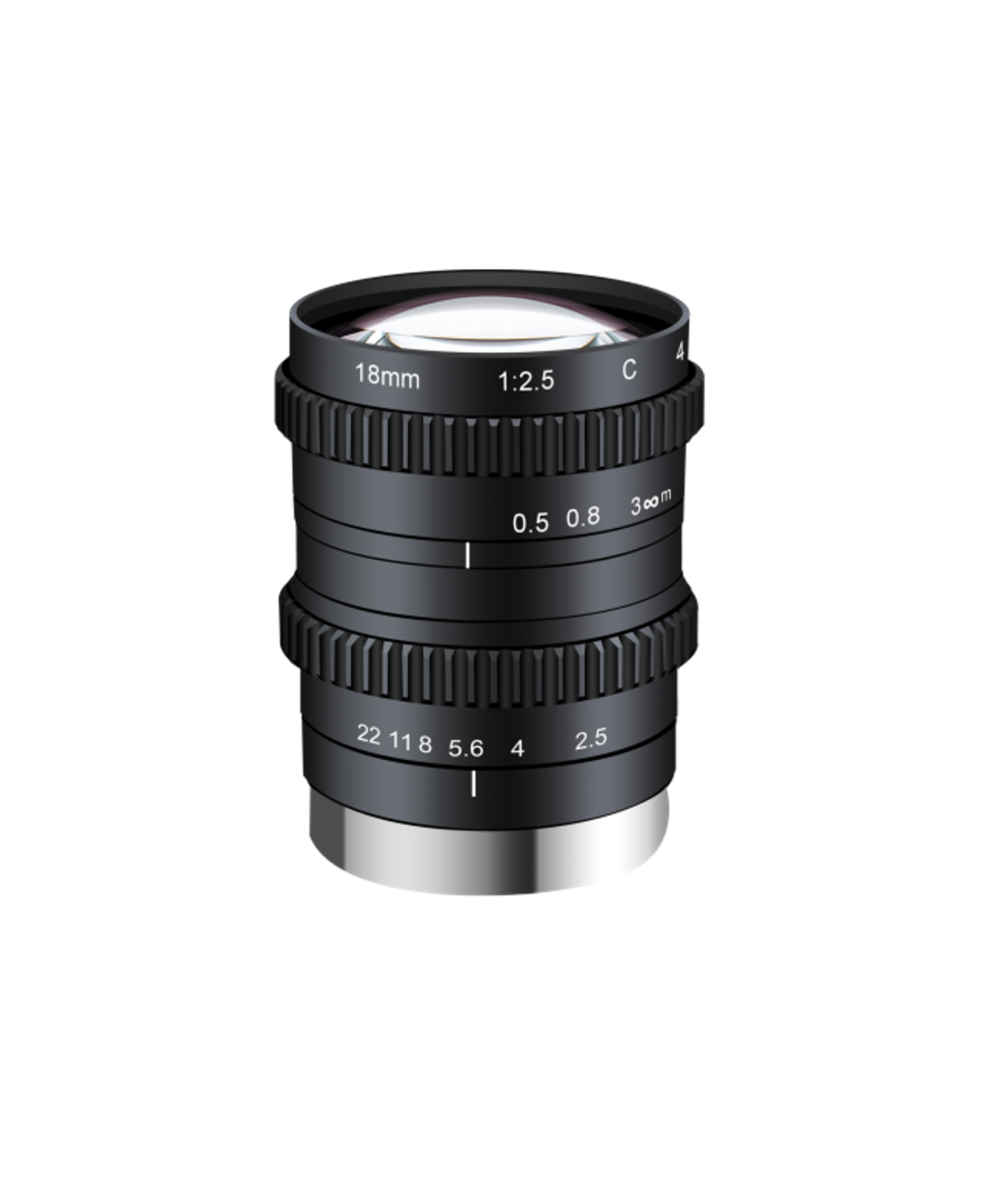

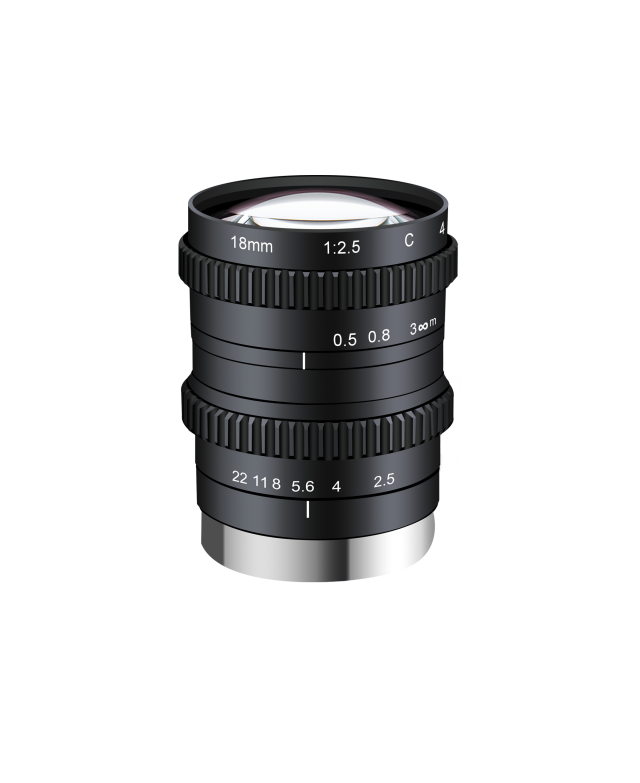

AZURE-1825XF 18mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
18 mmFocal Length
4/3”Sensor Size
180lp/mmResolving Power
CMount
F2.5~F22Aperture
0.12~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-1825XF.
- DimensionsΦ52×66.8mm
- Weight-
- Back Focal Length13.25mm
- Filter ThreadM46×0.75
- MountC
Key Specifications
| Focal Length | 18 mm |
| Sensor Size | 4/3” |
| Resolving Power | 180lp/mm |
| Mount | C |
| Aperture | F2.5~F22 |
| Working Distance | 0.12~∞m |
| Filter Thread | M46×0.75 |
| Field of View | 4/3“靶面 62.63°×40.65°×52.44° |
| Distortion | <0.84% |
| Back Focal Length | 13.25mm |
| Iris | Manual |
| Dimensions | Φ52×66.8mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
