AZURE-0414M5M

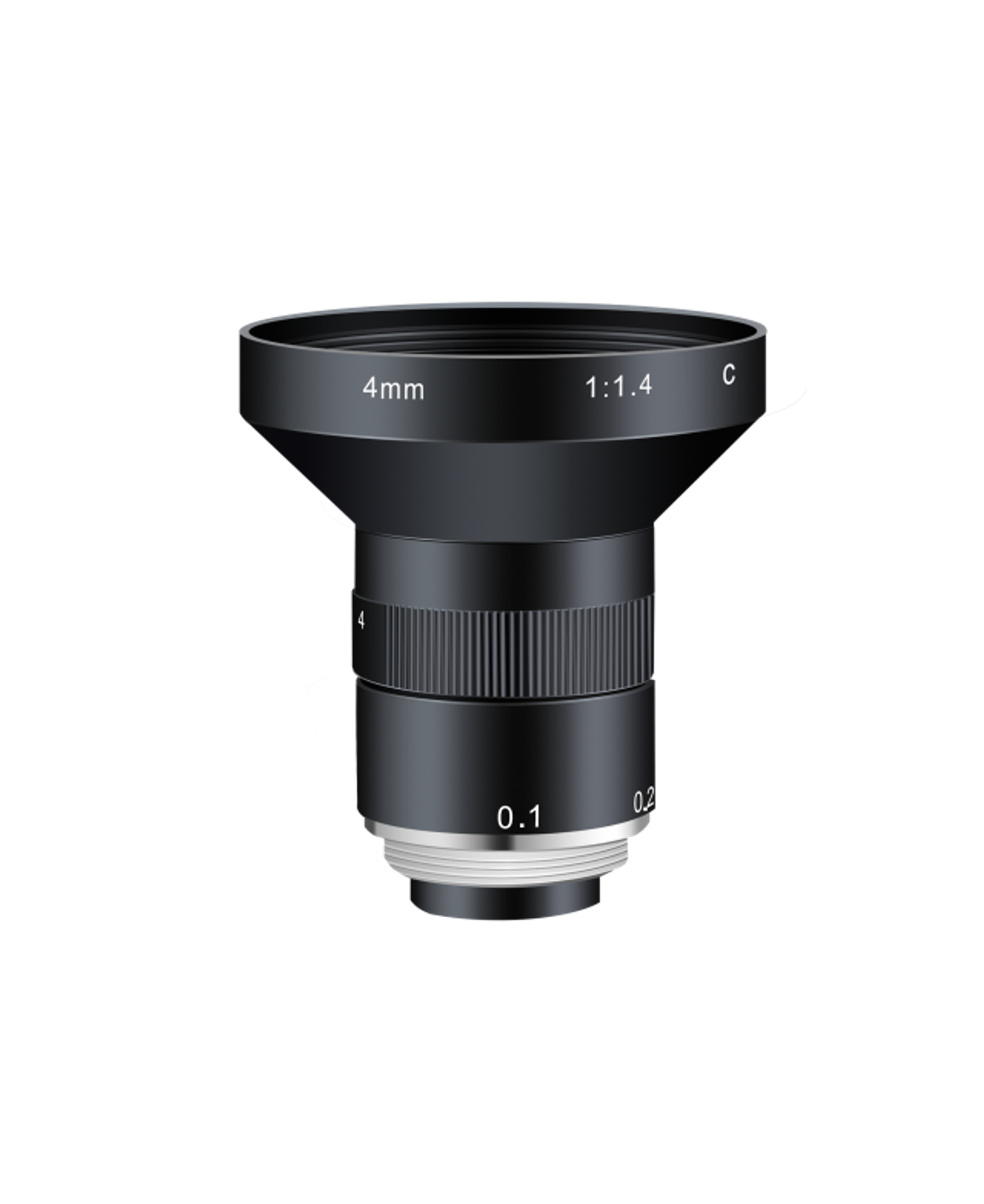

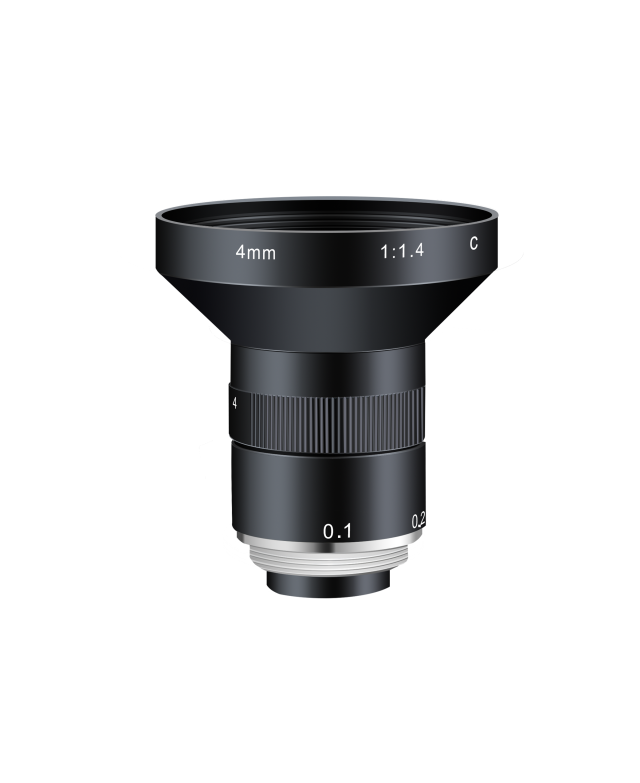

AZURE-0414M5M 4mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
4 mmFocal Length
1/2"Sensor Size
150lp/mmResolving Power
CMount
F1.4~F32Aperture
0.1m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0414M5M.
- DimensionsΦ54×50.87mm
- Weight142g
- Back Focal Length10.33mm
- Filter ThreadM52×0.75
- MountC
Key Specifications
| Focal Length | 4 mm |
| Sensor Size | 1/2" |
| Resolving Power | 150lp/mm |
| Mount | C |
| Aperture | F1.4~F32 |
| Working Distance | 0.1m~∞ |
| Filter Thread | M52×0.75 |
| Field of View | 1/2"靶面 85°×58.76°×75.12° |
| Distortion | <-1.5% |
| Back Focal Length | 10.33mm |
| Iris | M-Iris |
| Dimensions | Φ54×50.87mm |
| Weight | 142g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
