AZURE-1620ML5M

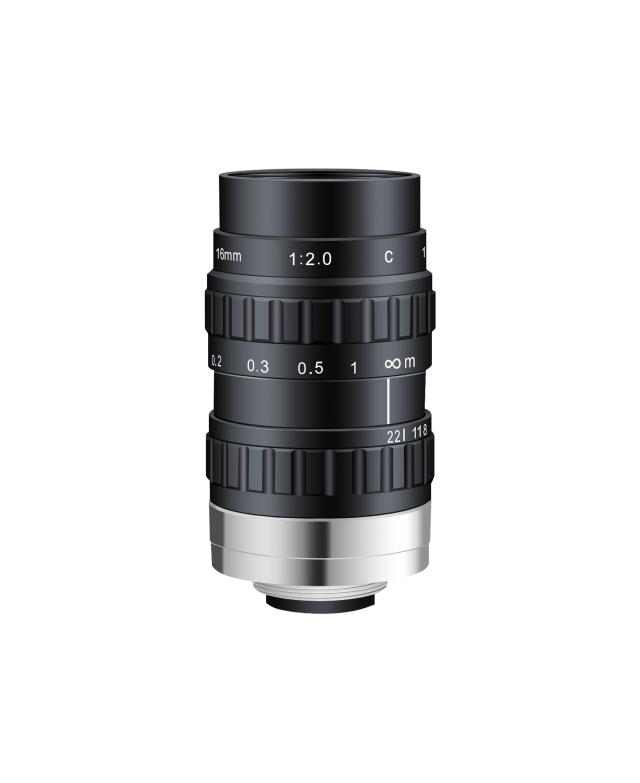

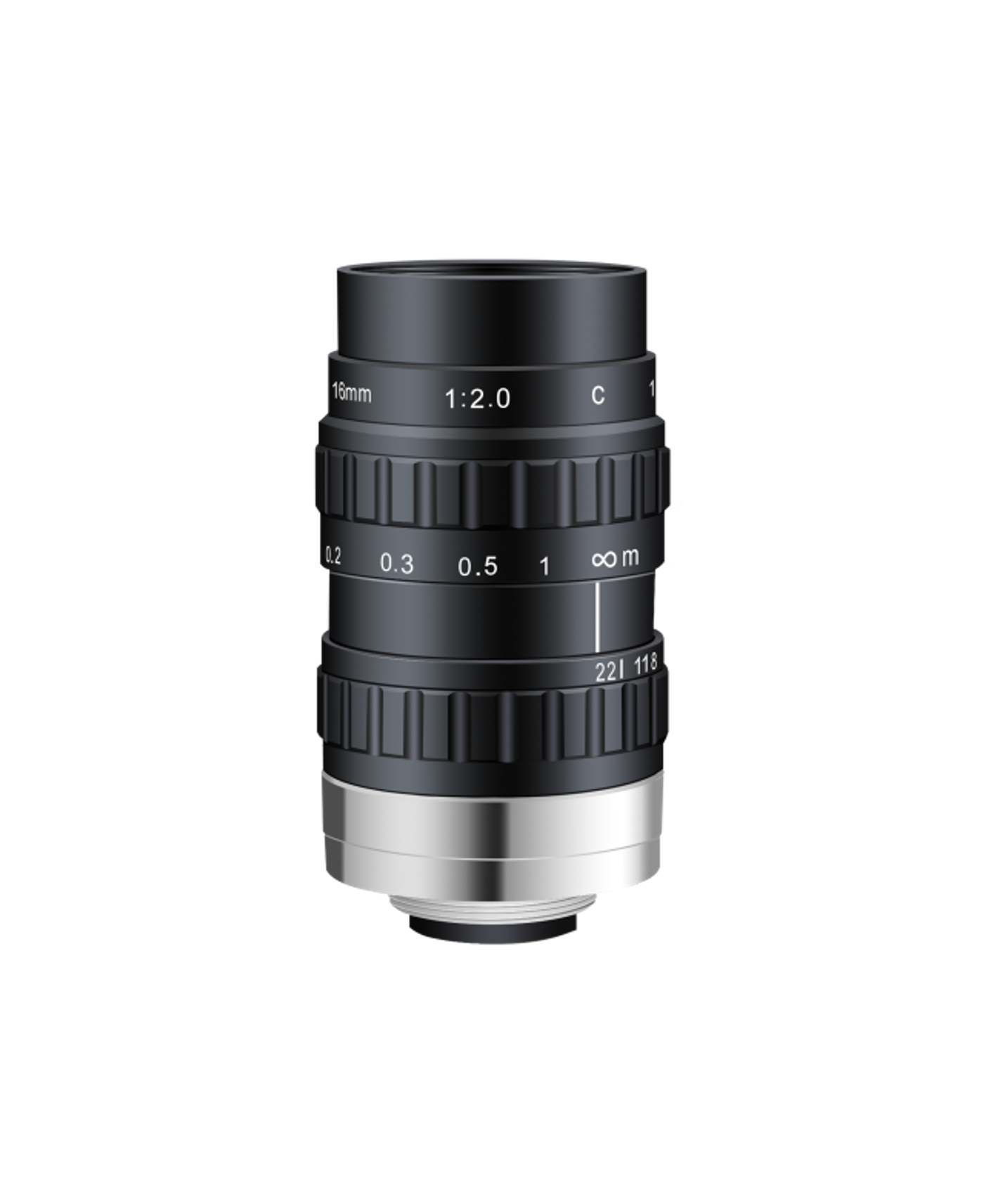

AZURE-1620ML5M 16mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
16 mmFocal Length
1"Sensor Size
150lp/mmResolving Power
CMount
F2.0~F22Aperture
0.5m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-1620ML5M.
- DimensionsΦ42×72.87mm
- Weight360g
- Back Focal Length13.09mm
- Filter ThreadM34×0.5
- MountC
Key Specifications
| Focal Length | 16 mm |
| Sensor Size | 1" |
| Resolving Power | 150lp/mm |
| Mount | C |
| Aperture | F2.0~F22 |
| Working Distance | 0.5m~∞ |
| Filter Thread | M34×0.5 |
| Field of View | 1"靶面 51.5°×32.4°×41.84° |
| Distortion | <0.5% |
| Back Focal Length | 13.09mm |
| Iris | M-Iris |
| Dimensions | Φ42×72.87mm |
| Weight | 360g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
