AZURE-0824ZF

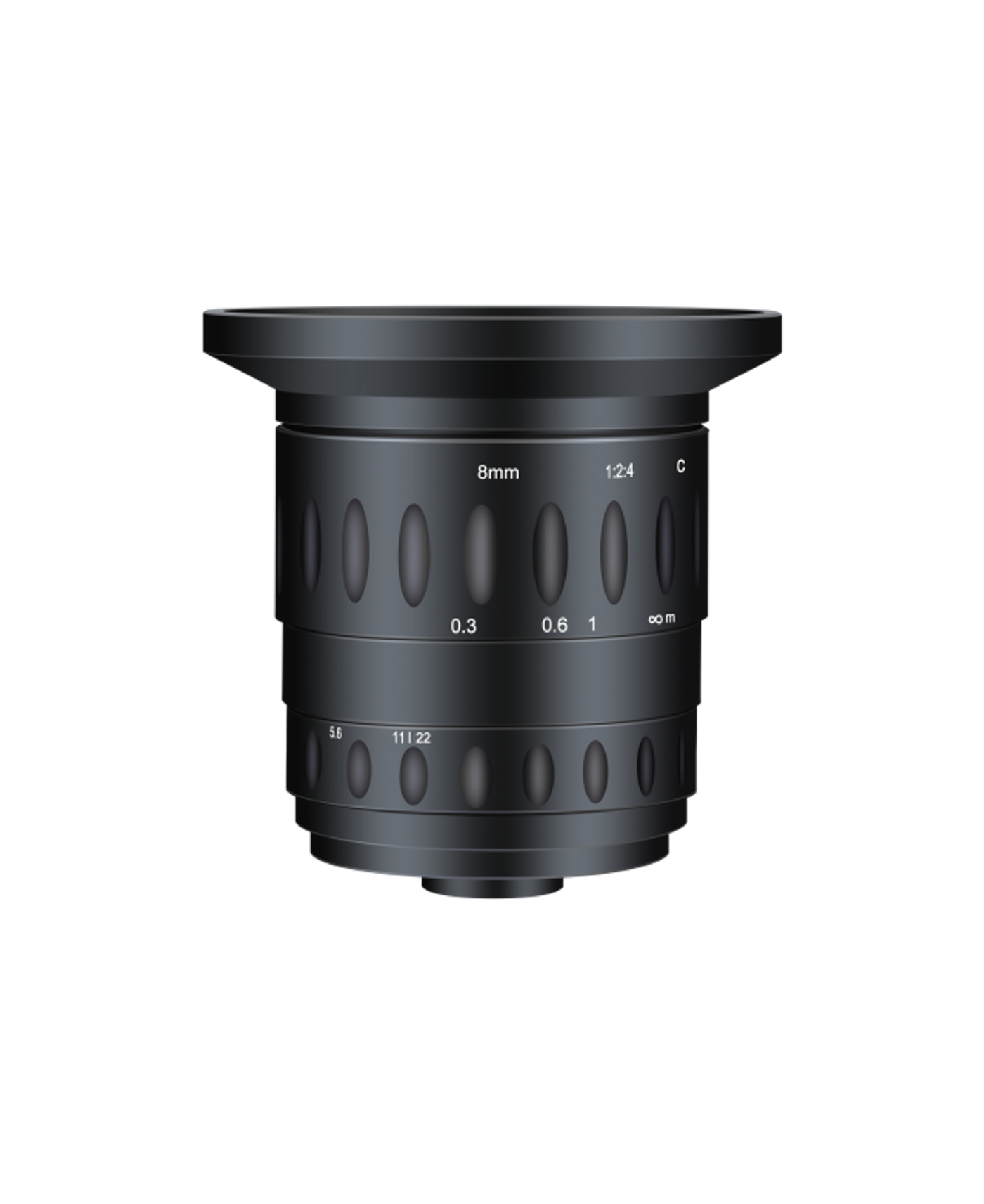

AZURE-0824ZF 8.2mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
8.2 mmFocal Length
1.2”Sensor Size
180 Ip/mmResolving Power
CMount
F2.4Aperture
0.1~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0824ZF.
- DimensionsΦ99×93.5mm
- Weight876.6g
- Back Focal Length13.2mm
- Filter ThreadM95×1
- MountC
Key Specifications
| Focal Length | 8.2 mm |
| Sensor Size | 1.2” |
| Resolving Power | 180 Ip/mm |
| Mount | C |
| Aperture | F2.4 |
| Working Distance | 0.1~∞m |
| Filter Thread | M95×1 |
| Field of View | 1.1"靶面 97.9°×62.4°×85°; 1“靶面 91.6°×61.4°×77.6° |
| Distortion | <-9% |
| Back Focal Length | 13.2mm |
| Iris | Manual |
| Dimensions | Φ99×93.5mm |
| Weight | 876.6g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-0824ZF fits, or recommend a better match.
