AZURE-0625ML12M

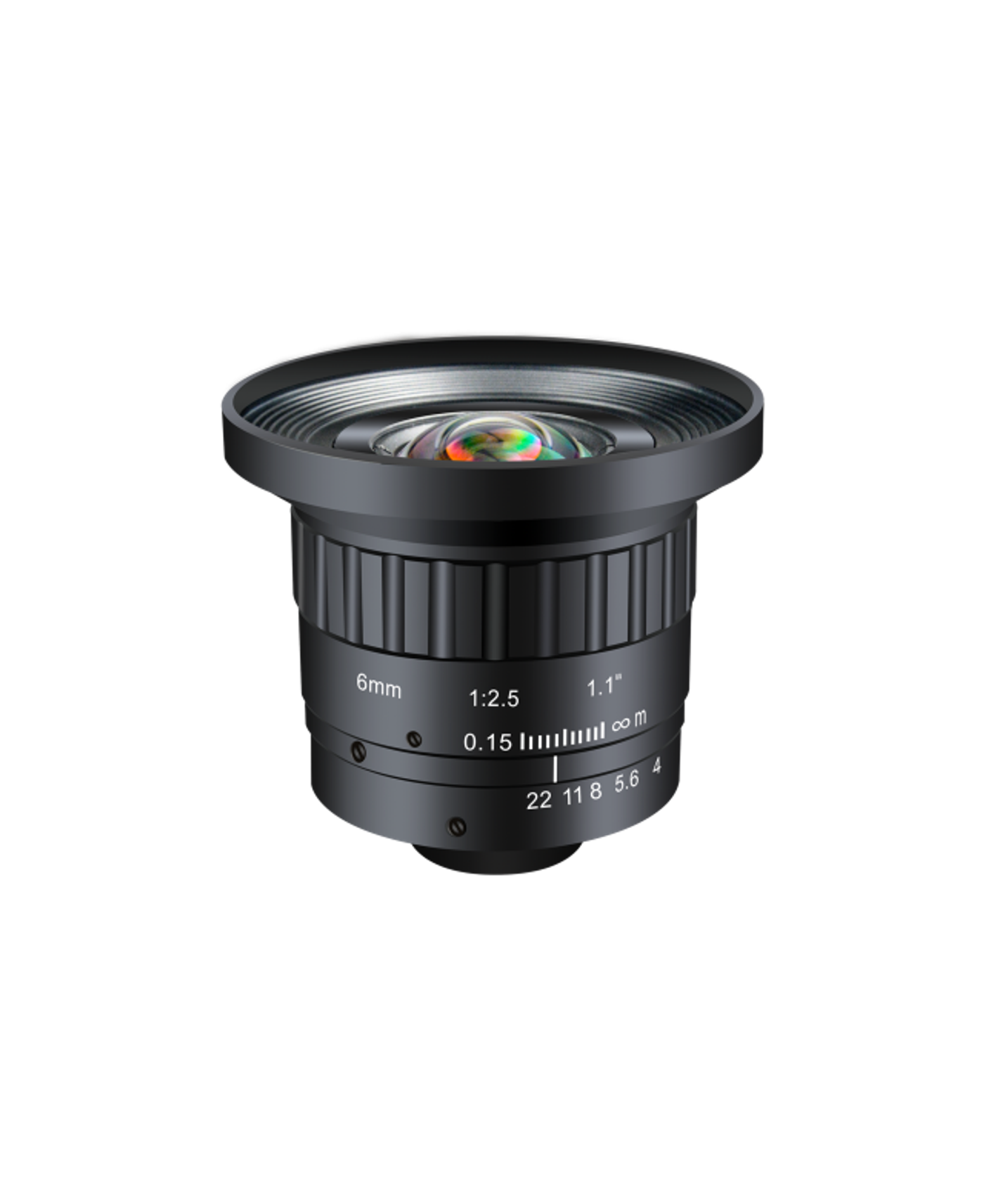

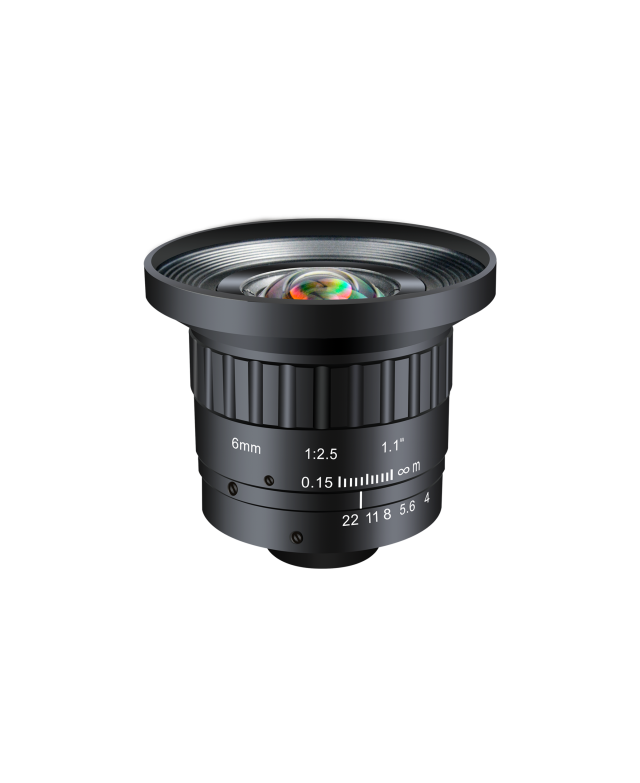

AZURE-0625ML12M 6mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
6 mmFocal Length
1.1”Sensor Size
150 lp/mmResolving Power
CMount
F2.5~F22Aperture
0.15~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0625ML12M.
- DimensionsΦ65×49.9mm
- Weight241.4g
- Back Focal Length9.735mm
- Filter ThreadM62×0.75
- MountC
Key Specifications
| Focal Length | 6 mm |
| Sensor Size | 1.1” |
| Resolving Power | 150 lp/mm |
| Mount | C |
| Aperture | F2.5~F22 |
| Working Distance | 0.15~∞m |
| Filter Thread | M62×0.75 |
| Field of View | 1“靶面 102.3°×61.47°×81.89°; 2/3“靶面 81.01°×48.68°×64.86° |
| Distortion | <0.23% |
| Back Focal Length | 9.735mm |
| Iris | M-Iris |
| Dimensions | Φ65×49.9mm |
| Weight | 241.4g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-0625ML12M fits, or recommend a better match.
