AZURE-NV0820M6M

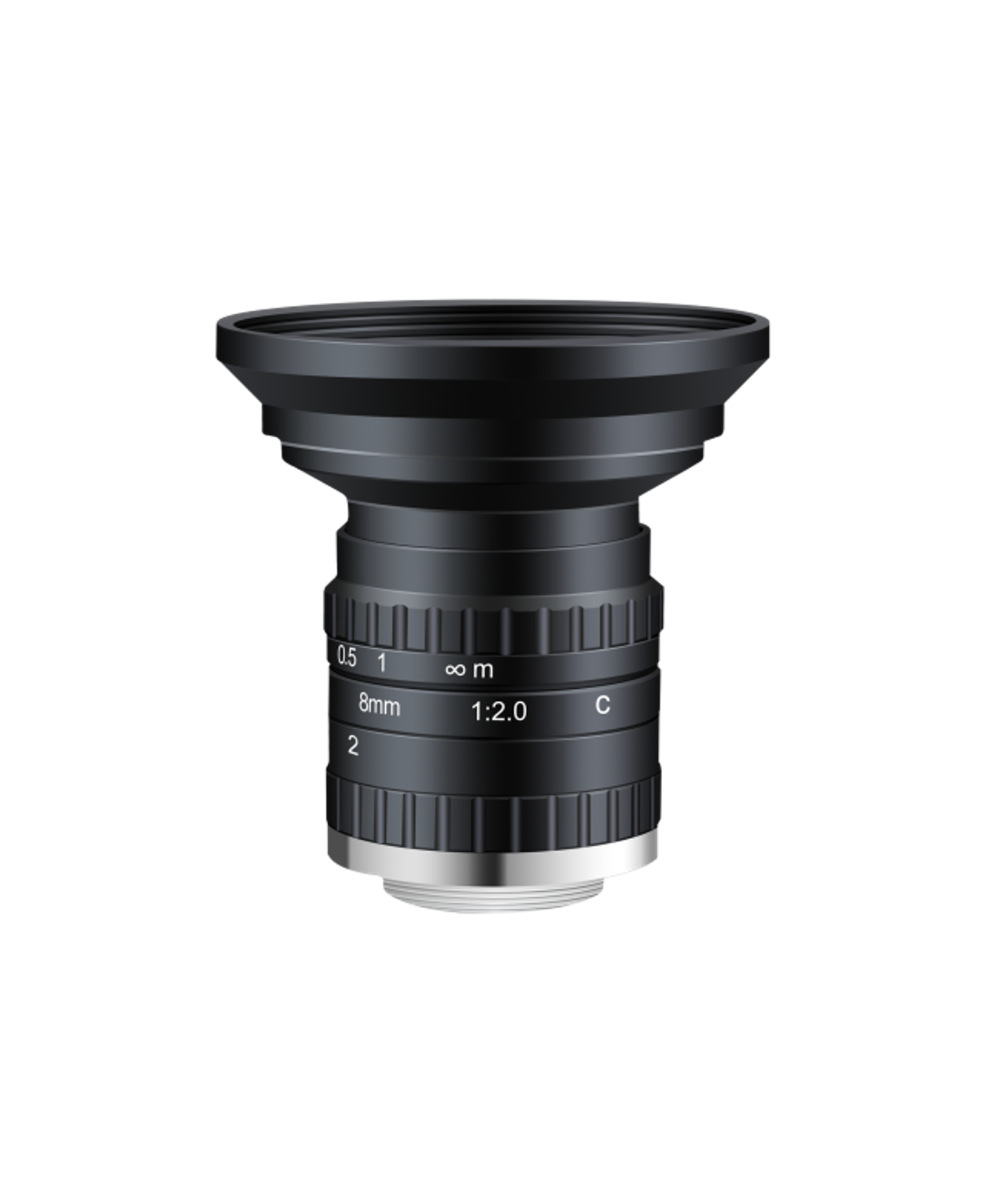

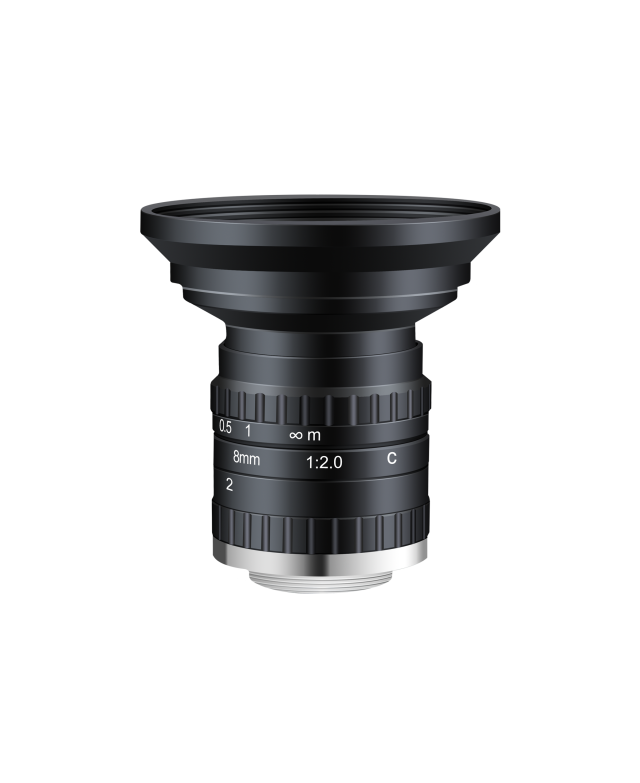

AZURE-NV0820M6M 8mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
8 mmFocal Length
2/3”(compatible with 1/1.2 sensor)Sensor Size
170lp/mmResolving Power
CMount
F2.0~F16Aperture
0.1m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-NV0820M6M.
- DimensionsΦ61×59.34mm
- Weight110.8g
- Back Focal Length12.476mm
- Filter ThreadM58×0.75
- MountC
Key Specifications
| Focal Length | 8 mm |
| Sensor Size | 2/3”(compatible with 1/1.2 sensor) |
| Resolving Power | 170lp/mm |
| Mount | C |
| Aperture | F2.0~F16 |
| Working Distance | 0.1m~∞ |
| Filter Thread | M58×0.75 |
| Field of View | 1/2“靶面 53.13°×33.4°×43.6°; 1/3“靶面 41.11°×25.36°×33.4° |
| Distortion | <0.45% |
| Back Focal Length | 12.476mm |
| Iris | M-Iris |
| Dimensions | Φ61×59.34mm |
| Weight | 110.8g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
