AZURE-2524ZF

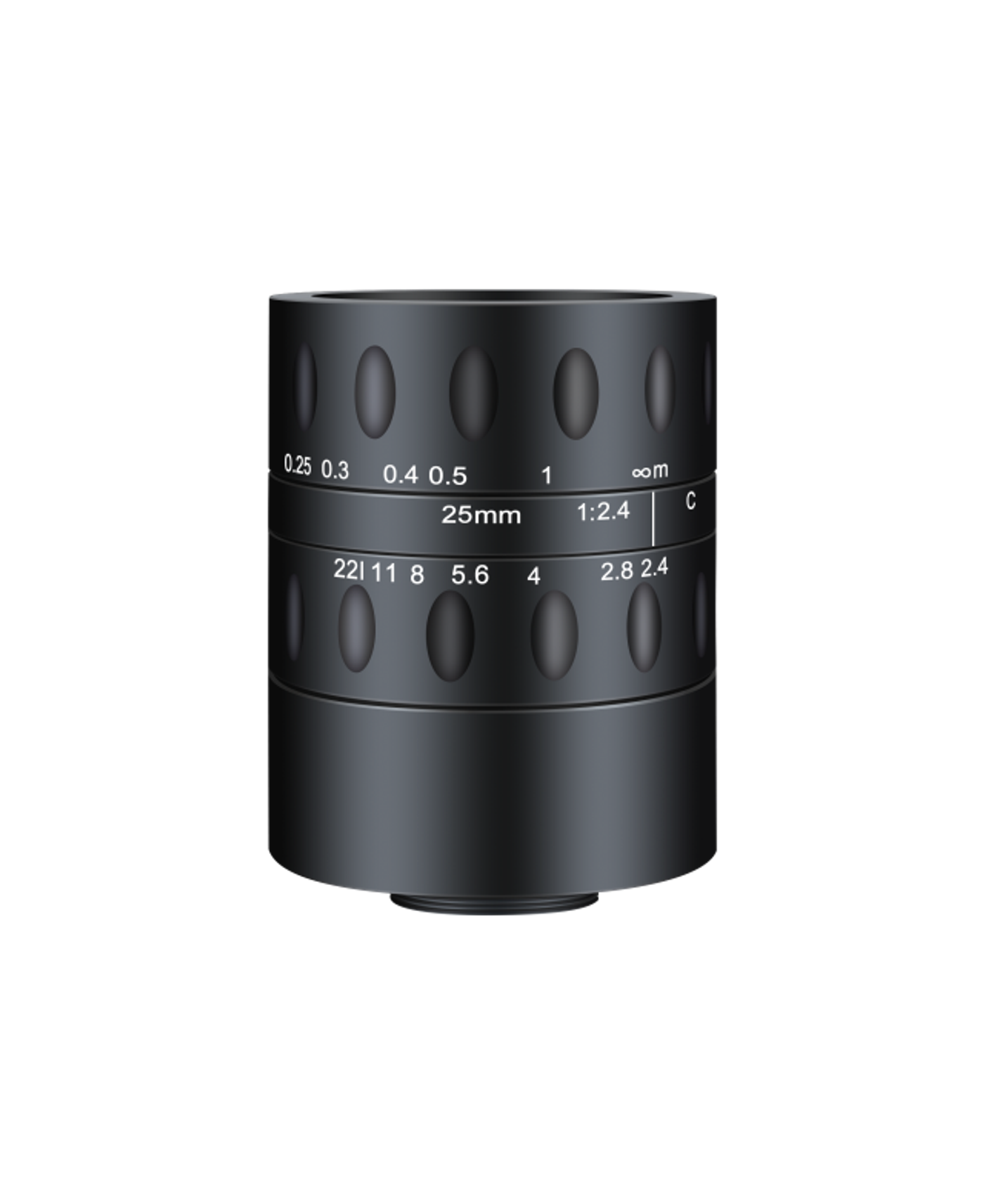

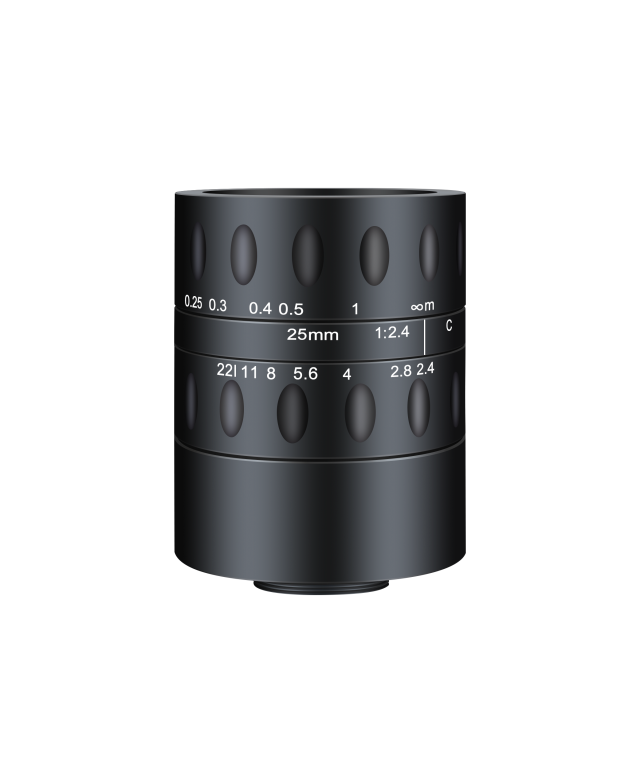

AZURE-2524ZF 25.8mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25.8 mmFocal Length
1.2”Sensor Size
185 Ip/mmResolving Power
CMount
F2.4Aperture
0.15~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-2524ZF.
- DimensionsΦ54×66.61mm
- Weight436.5g
- Back Focal Length19.95mm
- Filter ThreadM40.5×0.5
- MountC
Key Specifications
| Focal Length | 25.8 mm |
| Sensor Size | 1.2” |
| Resolving Power | 185 Ip/mm |
| Mount | C |
| Aperture | F2.4 |
| Working Distance | 0.15~∞m |
| Filter Thread | M40.5×0.5 |
| Field of View | 1.1"靶面 37.08°×22.76°×30.08°; 1"靶面 33.94°×20.74°×27.44° |
| Distortion | <-0.6% |
| Back Focal Length | 19.95mm |
| Iris | Manual |
| Dimensions | Φ54×66.61mm |
| Weight | 436.5g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
