AZURE-10035ZF

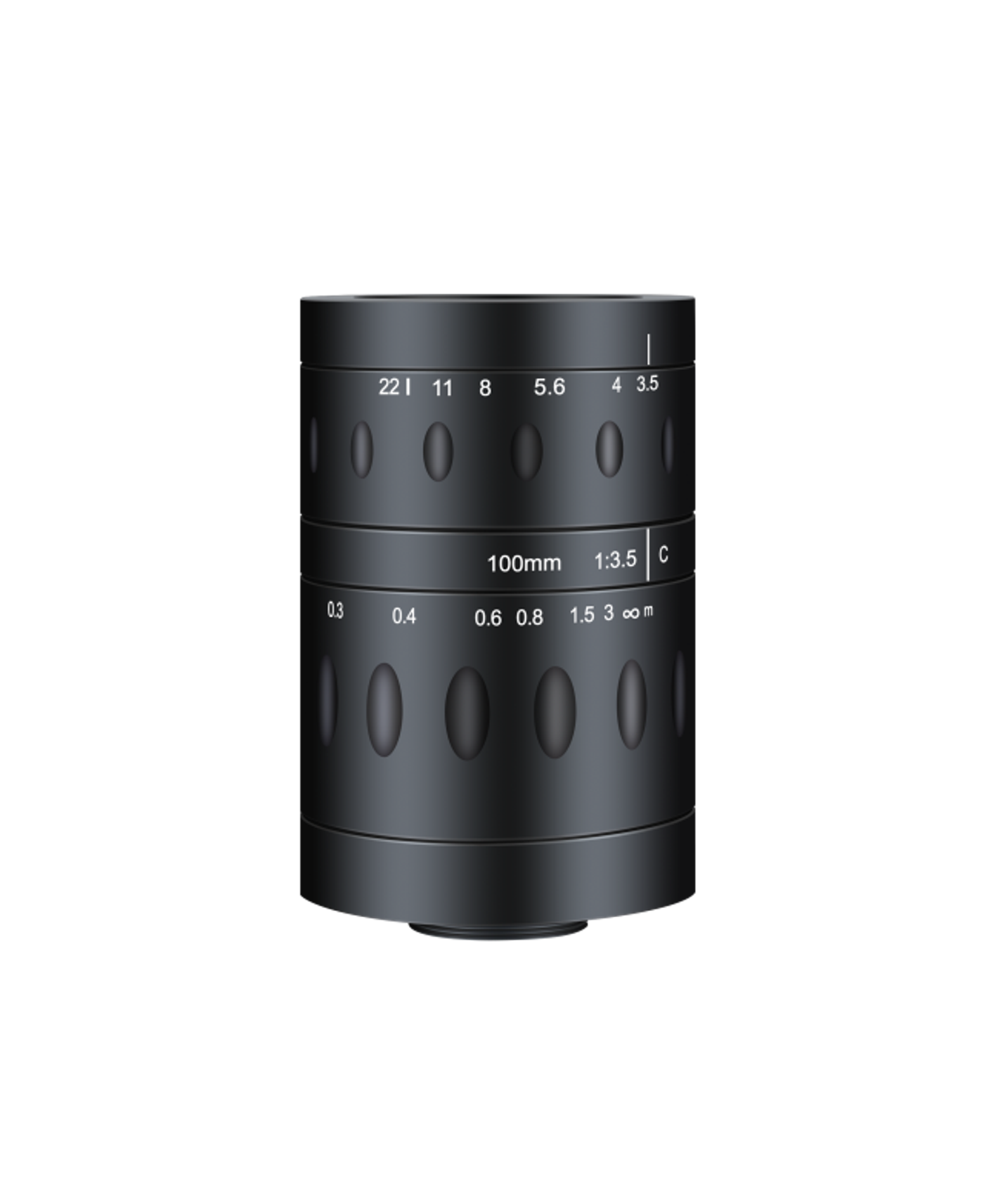

AZURE-10035ZF 100mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
100 mmFocal Length
1.2”Sensor Size
180 Ip/mmResolving Power
CMount
F3.5Aperture
0.2~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-10035ZF.
- DimensionsΦ55×80.78mm
- Weight-
- Back Focal Length21mm
- Filter ThreadM40×0.5
- MountC
Key Specifications
| Focal Length | 100 mm |
| Sensor Size | 1.2” |
| Resolving Power | 180 Ip/mm |
| Mount | C |
| Aperture | F3.5 |
| Working Distance | 0.2~∞m |
| Filter Thread | M40×0.5 |
| Field of View | 1.1"靶面 8.55°×5.14°×6.84°; 1"靶面 7.77°×4.67°×6.22° |
| Distortion | <0.06% |
| Back Focal Length | 21mm |
| Iris | Manual |
| Dimensions | Φ55×80.78mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-10035ZF fits, or recommend a better match.
