AZURE-2524XF

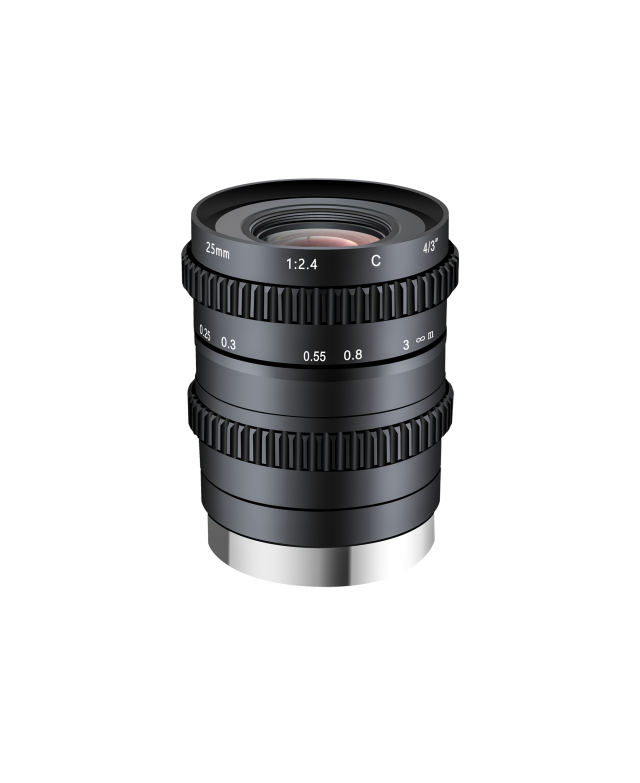

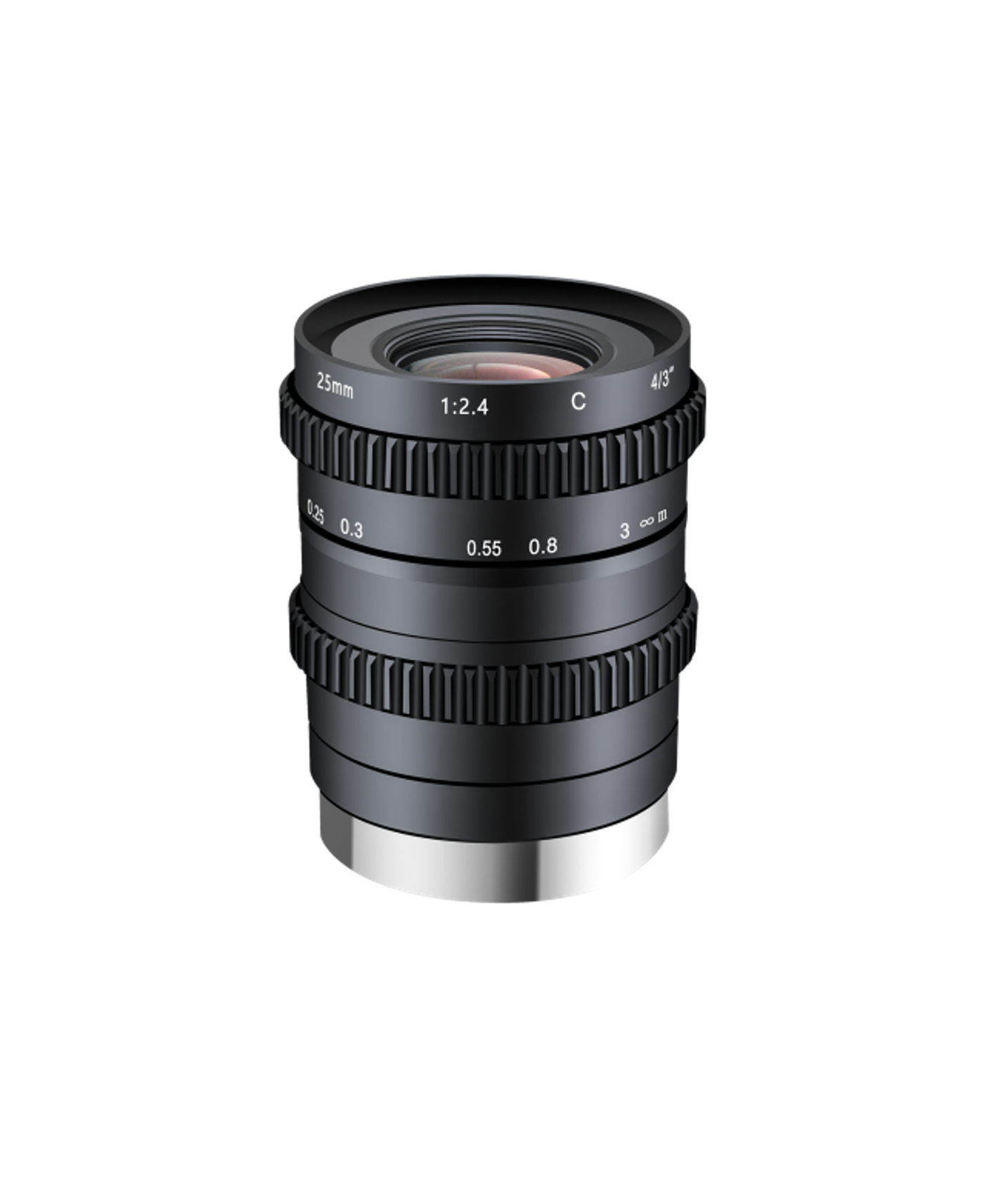

AZURE-2524XF 25mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
4/3”Sensor Size
180lp/mmResolving Power
CMount
F2.4~F22Aperture
0.15~∞mWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-2524XF.
- DimensionsΦ52×66.8mm
- Weight-
- Back Focal Length17.75mm
- Filter ThreadM46×0.75
- MountC
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 4/3” |
| Resolving Power | 180lp/mm |
| Mount | C |
| Aperture | F2.4~F22 |
| Working Distance | 0.15~∞m |
| Filter Thread | M46×0.75 |
| Field of View | 4/3“靶面 43.70°×27.09°×35.64° |
| Distortion | <-0.36% |
| Back Focal Length | 17.75mm |
| Iris | Manual |
| Dimensions | Φ52×66.8mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
