SAM-FA12.3F24-C12

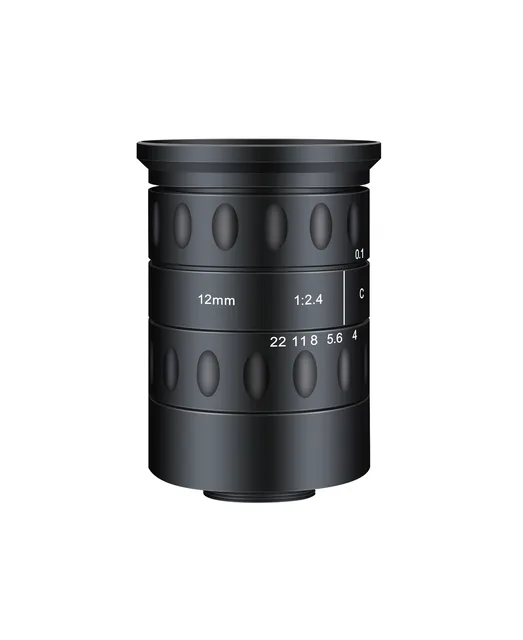

SAM-FA12.3F24-C12 — 12.3mm Machine Vision Lens (1.2", C-Mount)
Fixed focal lenses for automation, positioning, code reading and general inspection.
12.3 mmFocal Length
1.2"Sensor Size
180 lp/mmResolving Power
C-MountMount
F2.4Aperture
100 mm - infWorking Distance
Dimensions

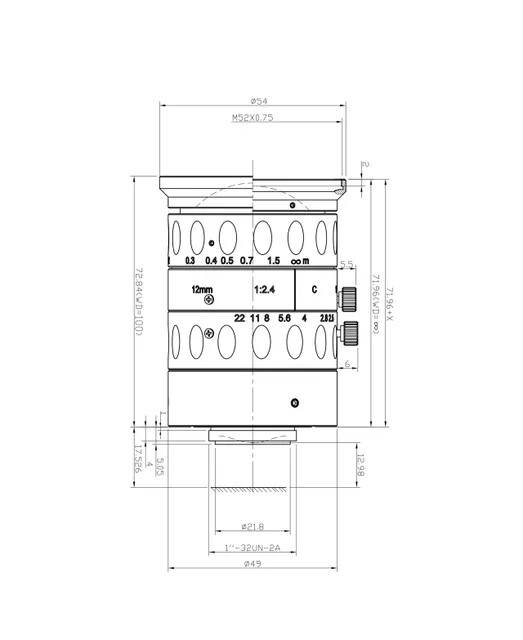

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ54 x 71.96 mm
- Weight364 g
- Back Focal Length13 mm
- Filter ThreadM52 x 0.75
- MountC-Mount
Product overview
SAM-FA12.3F24-C12 (12.3mm Machine Vision Lens) is listed in the FA Lenses range. Catalogue values include 1.2" sensor, C-Mount, distortion <-2.66%, WD 100 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 12.3 mm |
| Sensor Size | 1.2" |
| Resolving Power | 180 lp/mm |
| Mount | C-Mount |
| Aperture | F2.4 |
| Working Distance | 100 mm - inf |
| Filter Thread | M52 x 0.75 |
| Field of View | 77.9° x 50.44° x 64.68° |
| Distortion | <-2.66% |
| Back Focal Length | 13 mm |
| Iris | Manual |
| Dimensions | Φ54 x 71.96 mm |
| Weight | 364 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
