SAM-FA6.5F20-C1-5M

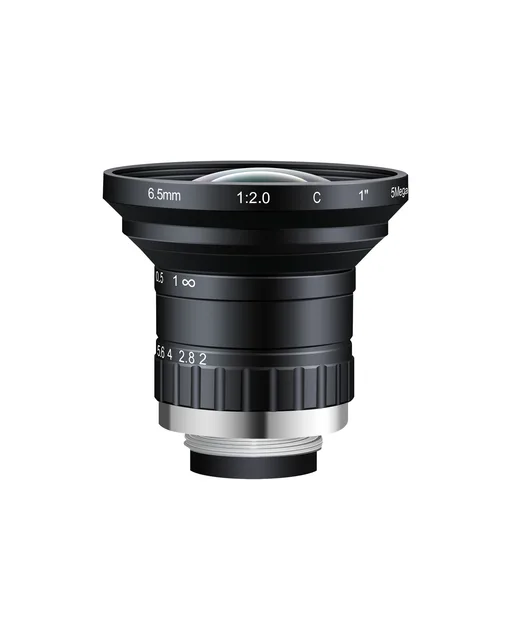

SAM-FA6.5F20-C1-5M — 6.5mm 5 MP Machine Vision Lens (1", C-Mount)
Fixed focal lenses for automation, positioning, code reading and general inspection.
6.5 mmFocal Length
1"Sensor Size
5 MPResolution
150 lp/mmResolving Power
C-MountMount
F2 - F22Aperture
Dimensions
Mechanical dimensions

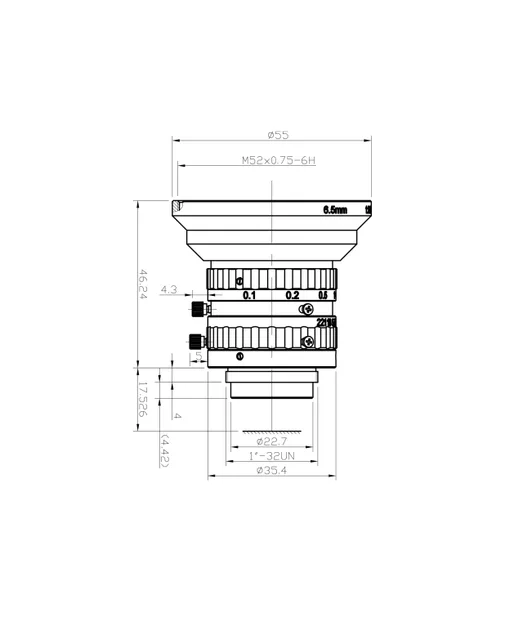

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ55 x 46.24 mm
- Weight135 g
- Back Focal Length9.23 mm
- Filter ThreadM52 x 0.75
- MountC-Mount
Product overview
SAM-FA6.5F20-C1-5M (6.5mm 5 MP Machine Vision Lens) is listed in the FA Lenses range. Catalogue values include 1" sensor, C-Mount, distortion <-10.5%, WD 100 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 6.5 mm |
| Sensor Size | 1" |
| Resolution | 5 MP |
| Resolving Power | 150 lp/mm |
| Mount | C-Mount |
| Aperture | F2 - F22 |
| Working Distance | 100 mm - inf |
| Filter Thread | M52 x 0.75 |
| Field of View | 106.4° x 76° x 94° |
| Distortion | <-10.5% |
| Back Focal Length | 9.23 mm |
| Iris | Manual with locking screw |
| Dimensions | Φ55 x 46.24 mm |
| Weight | 135 g |
