HN-2520-20M-C1/1X

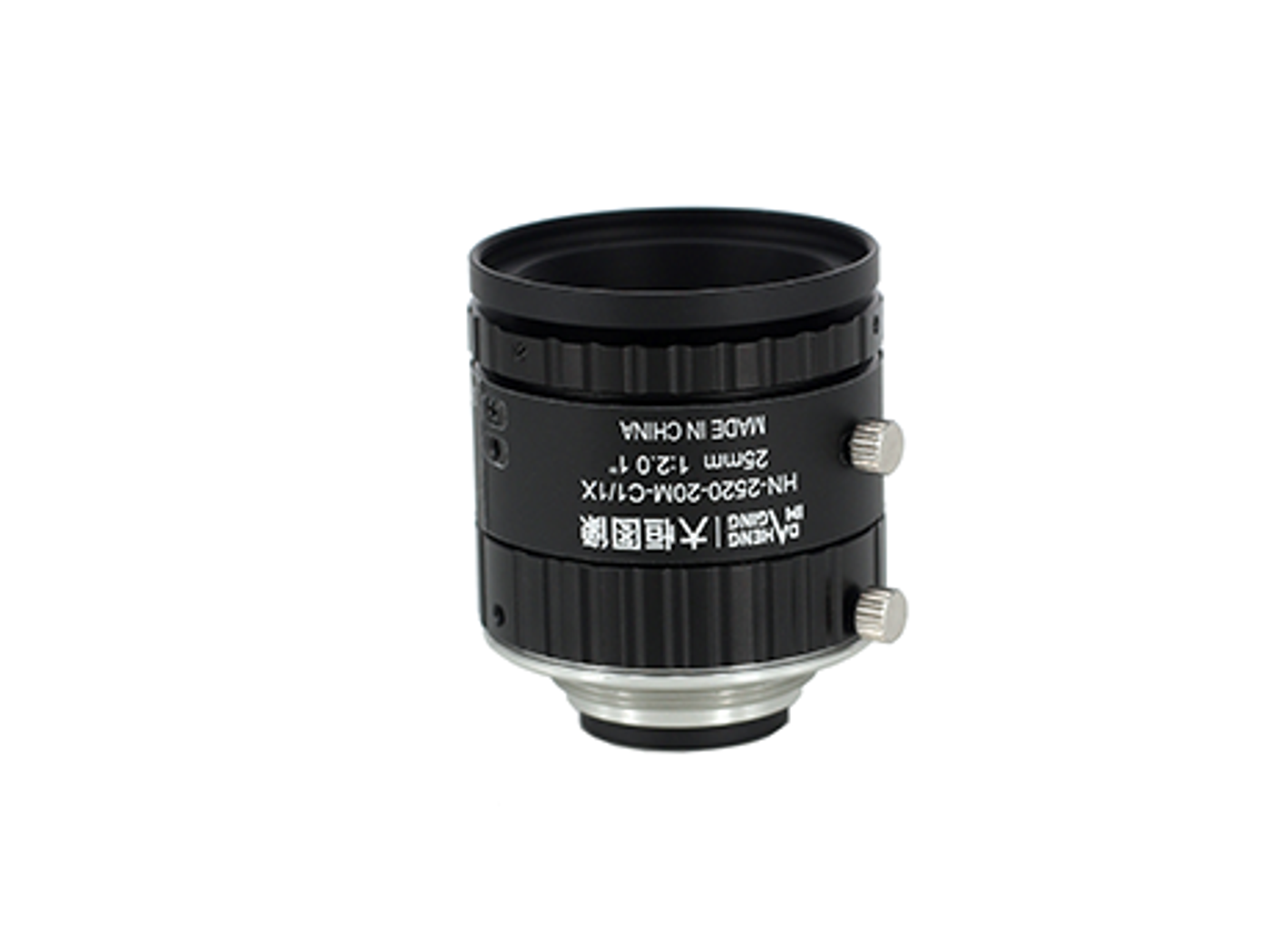

Daheng HN-2520-20M-C1/1X 25mm 20 MP Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
1"Sensor Size
20 MPResolution
C-mountMount
F2.0 - F16Aperture
150 mm - ∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HN-2520-20M-C1/1X.
- DimensionsΦ37.5 × 35.7 mm (D × L)
- Weight73.1 g
- Filter ThreadM35.5 × 0.5
- MountC-mount
Key features
- Designed for machine vision
- Suits cameras up to 20 MP
- Compact and lightweight
- Vibration resistance rated to 5 G
- Low distortion
- Even illumination with good corner brightness
- Floating-element design keeps resolution across working distances
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 1" |
| Resolution | 20 MP |
| Mount | C-mount |
| Aperture | F2.0 - F16 |
| Working Distance | 150 mm - ∞ |
| MOD | 150 mm |
| Filter Thread | M35.5 × 0.5 |
| Field of View | 35.5° × 28.8° × 21.8° (D × H × V) |
| Distortion | < 0.1% |
| Focus Range | 0.15 m - ∞ |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ37.5 × 35.7 mm (D × L) |
| Weight | 73.1 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether HN-2520-20M-C1/1X fits, or recommend a better match.
