SAM-FA12F14-C23-5M

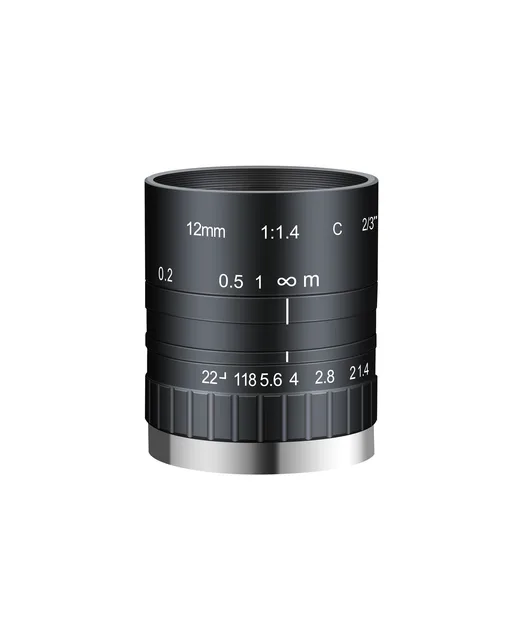

SAM-FA12F14-C23-5M — 12mm 5 MP Machine Vision Lens (2/3", C-Mount)
Fixed focal lenses for automation, positioning, code reading and general inspection.
12 mmFocal Length
2/3"Sensor Size
5 MPResolution
150 lp/mmResolving Power
C-MountMount
F1.4 - F22Aperture
Dimensions
Mechanical dimensions

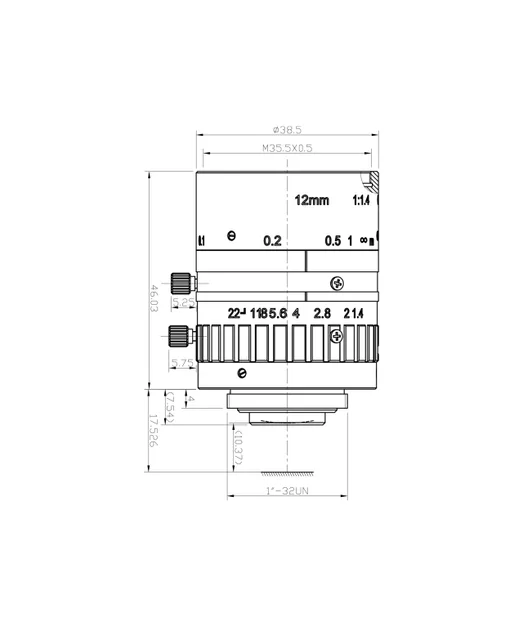

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ38.5 x 46.03 mm
- Weight150 g
- Back Focal Length10.37 mm
- Filter ThreadM35.5 x 0.5
- MountC-Mount
Product overview
SAM-FA12F14-C23-5M (12mm 5 MP Machine Vision Lens) is listed in the FA Lenses range. Catalogue values include 2/3" sensor, C-Mount, distortion <-0.3%, WD 100 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 12 mm |
| Sensor Size | 2/3" |
| Resolution | 5 MP |
| Resolving Power | 150 lp/mm |
| Mount | C-Mount |
| Aperture | F1.4 - F22 |
| Working Distance | 100 mm - inf |
| Filter Thread | M35.5 x 0.5 |
| Field of View | 47.1° x 29.44° x 39.58° |
| Distortion | <-0.3% |
| Back Focal Length | 10.37 mm |
| Iris | Manual with locking screw |
| Dimensions | Φ38.5 x 46.03 mm |
| Weight | 150 g |
