AZURE-DN1218TM

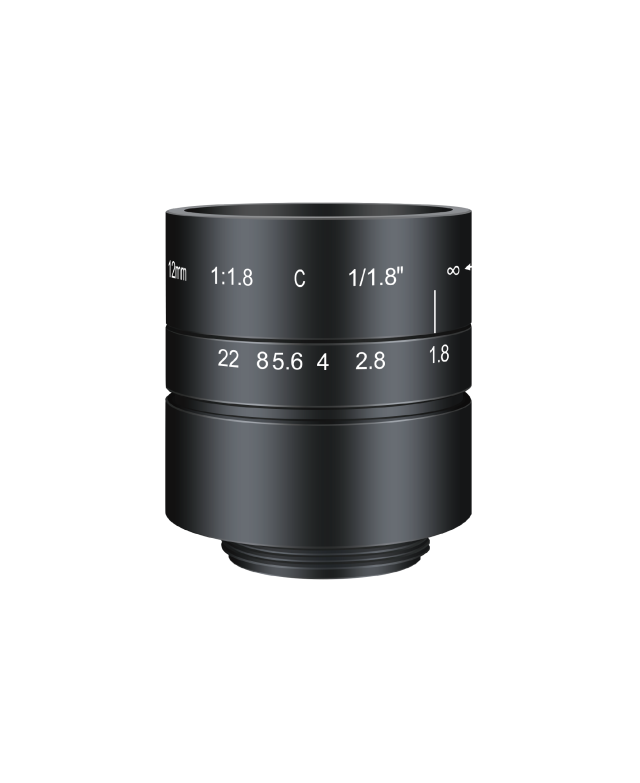

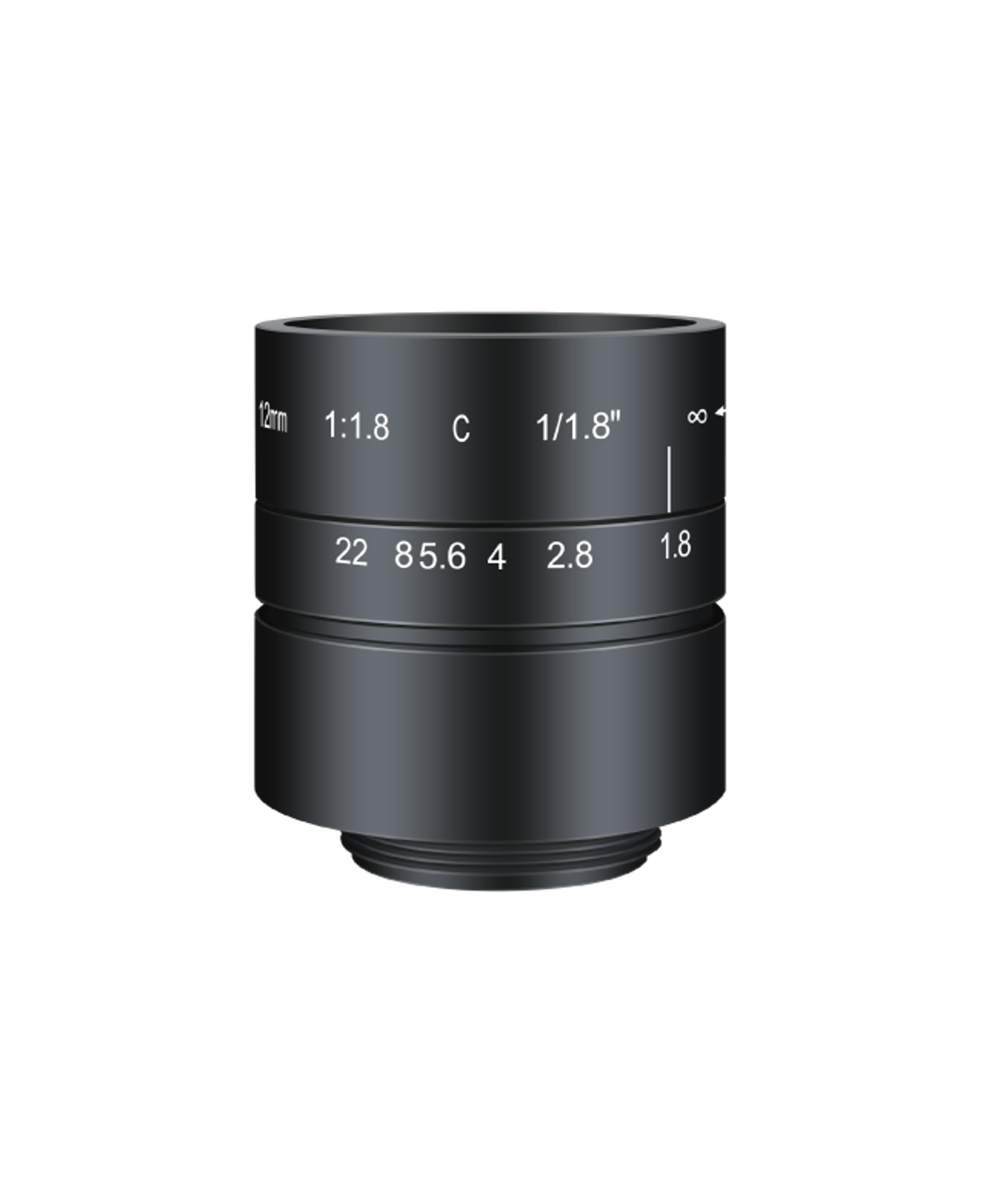

AZURE-DN1218TM 12.6mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
12.6 mmFocal Length
1/1.8"Sensor Size
200 Ip/mmResolving Power
CMount
F1.8Aperture
M34×0.5Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-DN1218TM.
- DimensionsΦ39×38mm
- Weight118.9g
- Back Focal Length11.99mm
- Filter ThreadM34×0.5
- MountC
Key Specifications
| Focal Length | 12.6 mm |
| Sensor Size | 1/1.8" |
| Resolving Power | 200 Ip/mm |
| Mount | C |
| Aperture | F1.8 |
| Filter Thread | M34×0.5 |
| Field of View | 1/2"靶面 36°×21.7°×28.87°; 1/3"靶面 27.08°×16.38°×21.7° |
| Distortion | <-3% |
| Back Focal Length | 11.99mm |
| Iris | Manual Iris |
| Dimensions | Φ39×38mm |
| Weight | 118.9g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
