AZURE-M0043XM

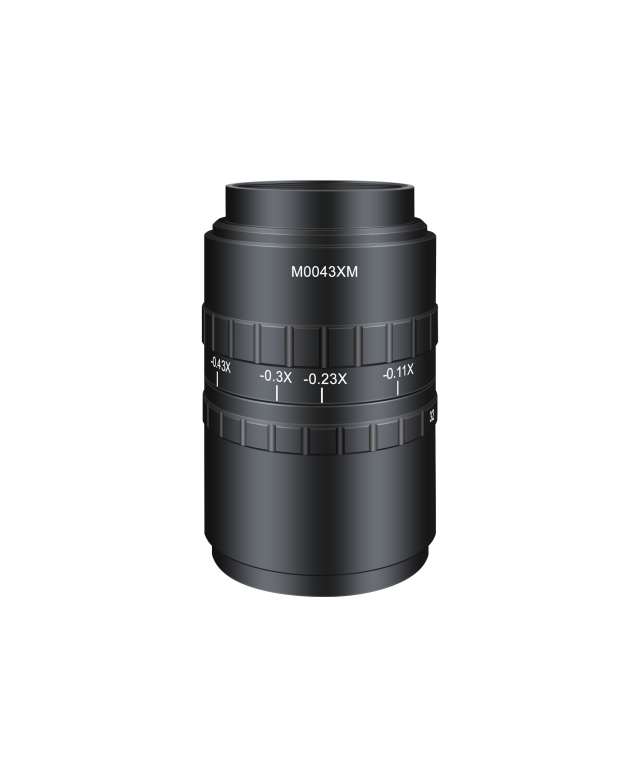

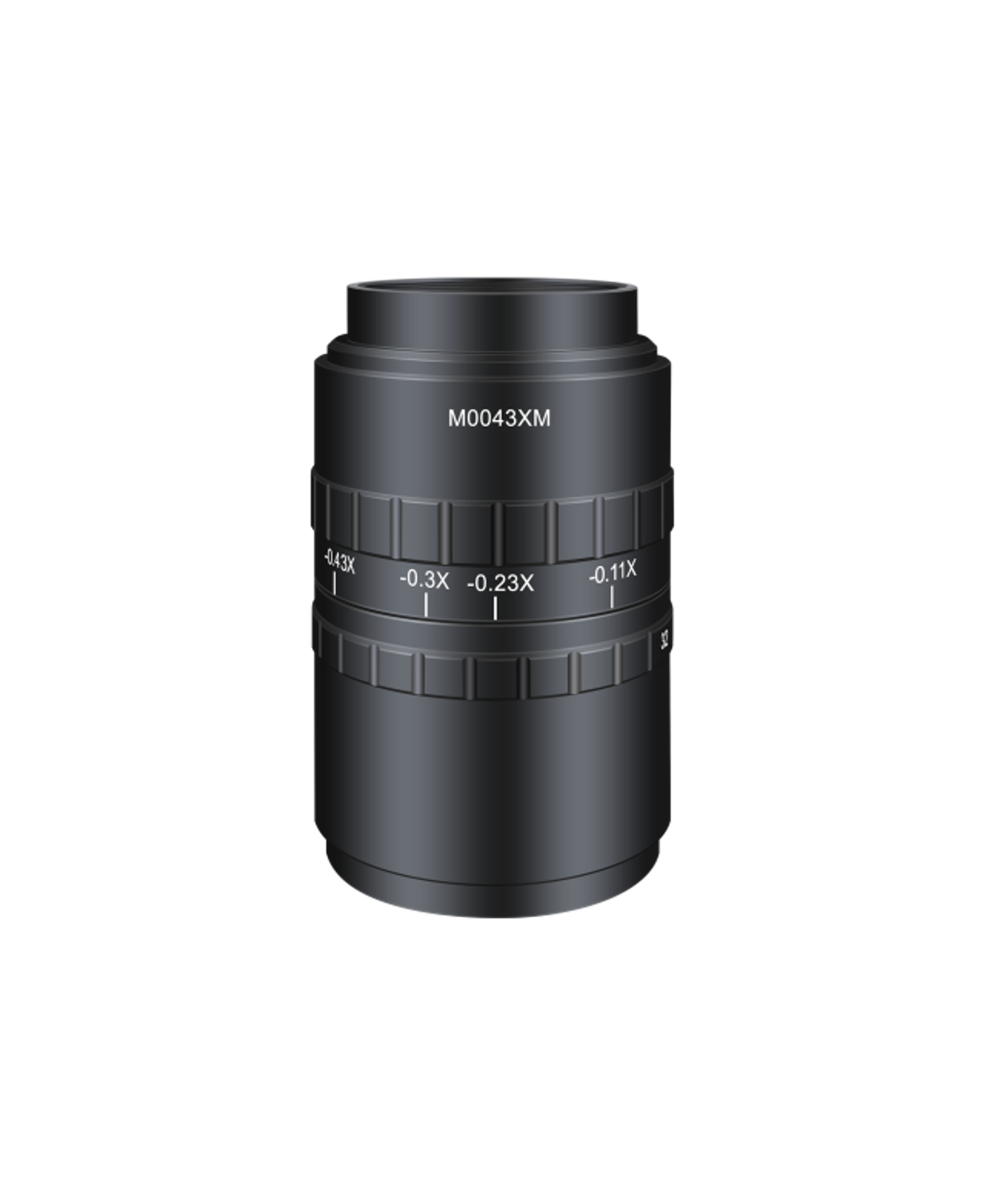

AZURE-M0043XM Macro Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
0x~0.43xMagnification
1.1"Sensor Size
150 lp/mmResolving Power
CMount
F2.6Aperture
∞~300mmWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-M0043XM.
- DimensionsΦ49.8×95.59mm
- Weight-
- Back Focal Length15.76mm
- Filter ThreadM34×0.5
- MountC
Key Specifications
| Magnification | 0x~0.43x |
| Sensor Size | 1.1" |
| Resolving Power | 150 lp/mm |
| Mount | C |
| Aperture | F2.6 |
| Working Distance | ∞~300mm |
| Filter Thread | M34×0.5 |
| Field of View | 2/3"靶面 4.80°×3.12°×3.96°; 1/2"靶面 3.65°×2.43°×3.04° |
| Distortion | <-0.35% |
| Back Focal Length | 15.76mm |
| Iris | Manual Iris |
| Dimensions | Φ49.8×95.59mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-M0043XM fits, or recommend a better match.
