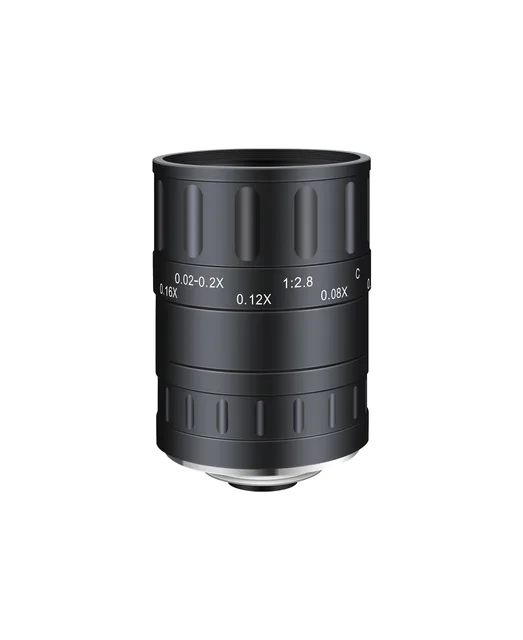

SAM-UVZ25-F28-C23 — 25mm UV Lens (200 - 1000 nm, 2/3", C-Mount)
UV, SWIR, S-mount, ITS and fully custom optical designs.
25 mmFocal Length
-0.02X - -0.2XMagnification
2/3"Sensor Size
180 lp/mmResolving Power
C-MountMount
F2.8 - F22Aperture
Dimensions
Mechanical dimensions

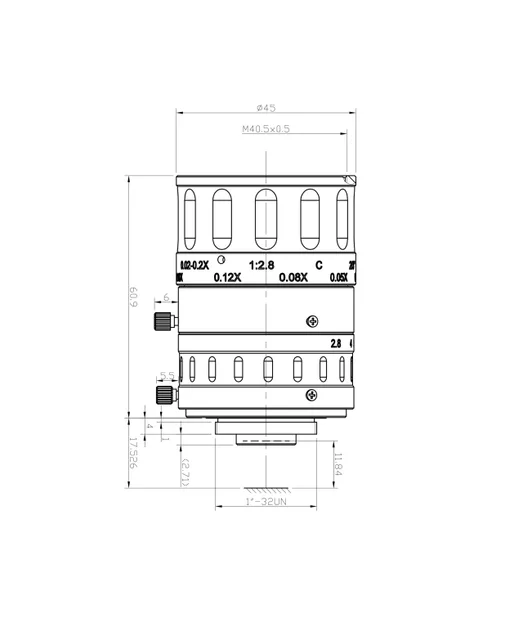

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ45 x 60.9 mm
- Weight242.4 g
- Back Focal Length11.84 mm
- Filter ThreadM40.5 x 0.5
- MountC-Mount
Product overview
SAM-UVZ25-F28-C23 (25mm UV Lens (200 - 1000 nm)) is listed in the Special and Custom range. Catalogue values include 2/3" sensor, C-Mount, distortion <0.8%, -0.02X - -0.2X magnification, 200 - 1000 nm spectral range.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 25 mm |
| Magnification | -0.02X - -0.2X |
| Sensor Size | 2/3" |
| Resolving Power | 180 lp/mm |
| Mount | C-Mount |
| Aperture | F2.8 - F22 |
| Filter Thread | M40.5 x 0.5 |
| Spectral Range | 200 - 1000 nm |
| Field of View | 21.76° x 13.06° x 17.41° |
| Distortion | <0.8% |
| Back Focal Length | 11.84 mm |
| Iris | Manual |
| Dimensions | Φ45 x 60.9 mm |
| Weight | 242.4 g |
