UV2501A

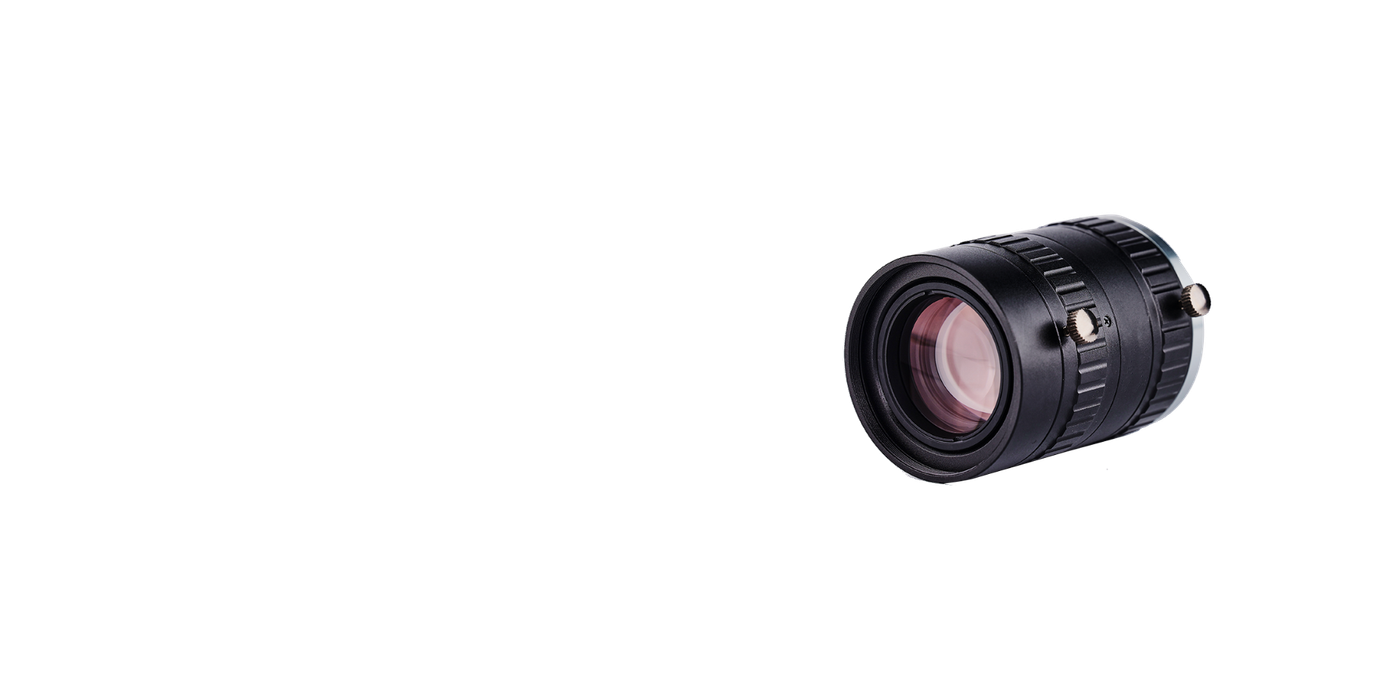

UV2501A 25mm UV Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
25 mmFocal Length
2/3"Sensor Size
C-MountMount
2.0-11Aperture
0.1m、0.24xMOD
M43×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of UV2501A.
- Dimensionsφ47.4×62.71
- Filter ThreadM43×P0.75
- MountC-Mount
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 2/3" |
| Mount | C-Mount |
| Aperture | 2.0-11 |
| MOD | 0.1m、0.24x |
| Filter Thread | M43×P0.75 |
| Field of View | 1/2"视场角Angle 10.8°×8.1°; 1/3"视场角Angle 8.1°×6.1°; 2/3"视场角Angle 14.9°×11.2° |
| Distortion | ﹤0.5% |
| Dimensions | φ47.4×62.71 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
