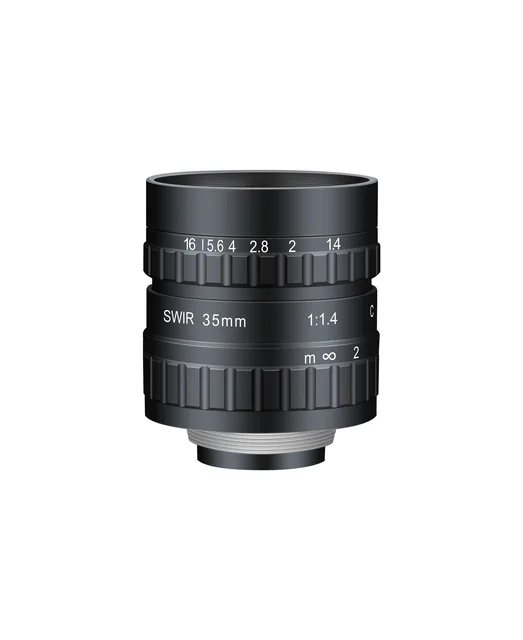

SAM-SWIR35-F14-C1 — 35mm SWIR Lens (900 - 1700 nm, 1", C-Mount)
UV, SWIR, S-mount, ITS and fully custom optical designs.
35 mmFocal Length
1"Sensor Size
50 lp/mmResolving Power
C-MountMount
F1.4 - F16Aperture
300 mm - infWorking Distance
Dimensions
Mechanical dimensions

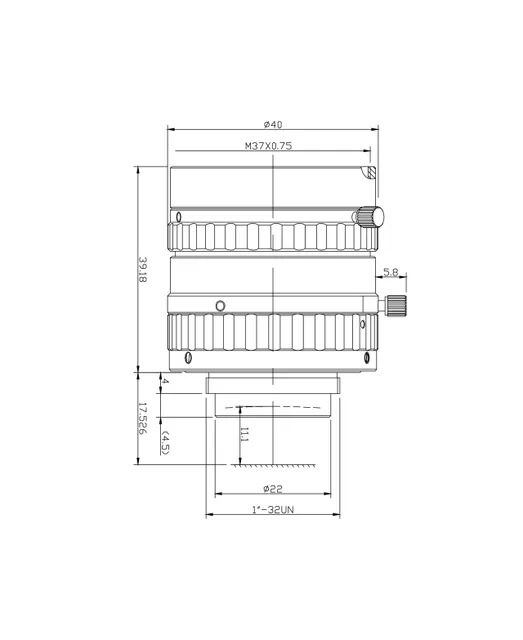

Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ40 x 39.18 mm
- Weight135 g
- Back Focal Length11.1 mm
- Filter ThreadM37 x 0.75
- MountC-Mount
Product overview
SAM-SWIR35-F14-C1 (35mm SWIR Lens (900 - 1700 nm)) is listed in the Special and Custom range. Catalogue values include 1" sensor, C-Mount, distortion <0.08%, WD 300 mm - inf, 900 - 1700 nm spectral range.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 35 mm |
| Sensor Size | 1" |
| Resolving Power | 50 lp/mm |
| Mount | C-Mount |
| Aperture | F1.4 - F16 |
| Working Distance | 300 mm - inf |
| Filter Thread | M37 x 0.75 |
| Spectral Range | 900 - 1700 nm |
| Field of View | 25.75° x 15.62° x 20.57° |
| Distortion | <0.08% |
| Back Focal Length | 11.1 mm |
| Iris | Manual with locking screw |
| Dimensions | Φ40 x 39.18 mm |
| Weight | 135 g |
