AZURE-0814SWIR-L

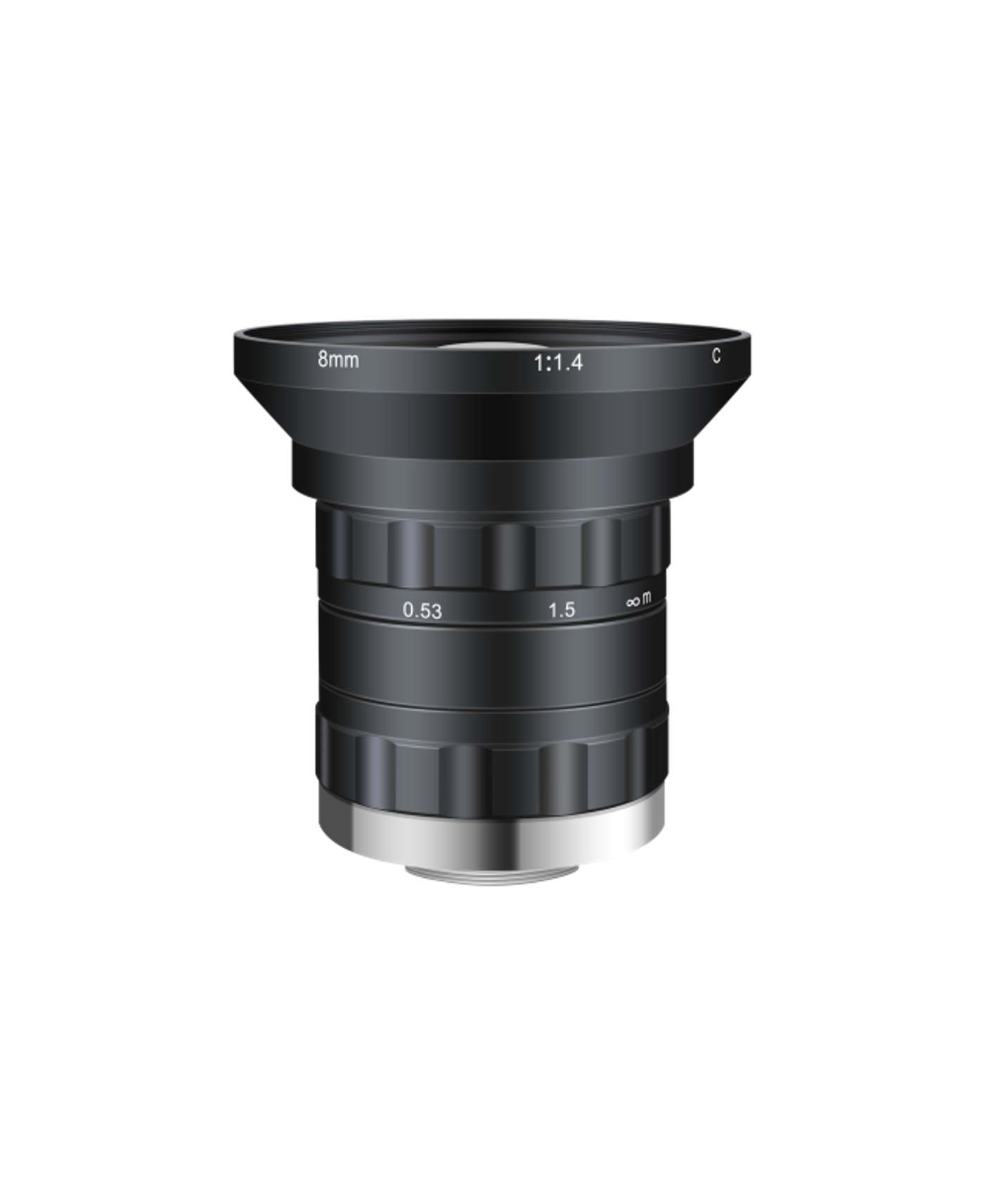

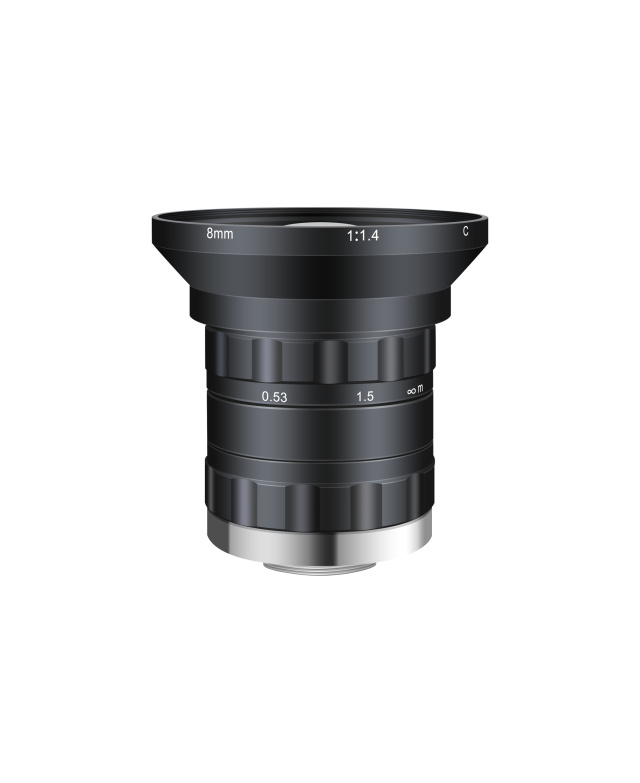

AZURE-0814SWIR-L 8.32mm SWIR Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
8.32 mmFocal Length
1”Sensor Size
60lp/mmResolving Power
CMount
F1.4Aperture
0.3m~∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-0814SWIR-L.
- DimensionsΦ75×72mm
- Weight-
- Back Focal Length12.65mm
- Filter ThreadM72×0.75
- MountC
Key Specifications
| Focal Length | 8.32 mm |
| Sensor Size | 1” |
| Resolving Power | 60lp/mm |
| Mount | C |
| Aperture | F1.4 |
| Working Distance | 0.3m~∞ |
| Filter Thread | M72×0.75 |
| Field of View | 2/3"靶面 67.18°×43.86°×56.34°; 1/1.8"靶面 56.56°×35.34°×46.7° |
| Distortion | ＜1.76% |
| Back Focal Length | 12.65mm |
| Iris | M-Iris |
| Dimensions | Φ75×72mm |
| Weight | - |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
