AZURE-IR09620B5M

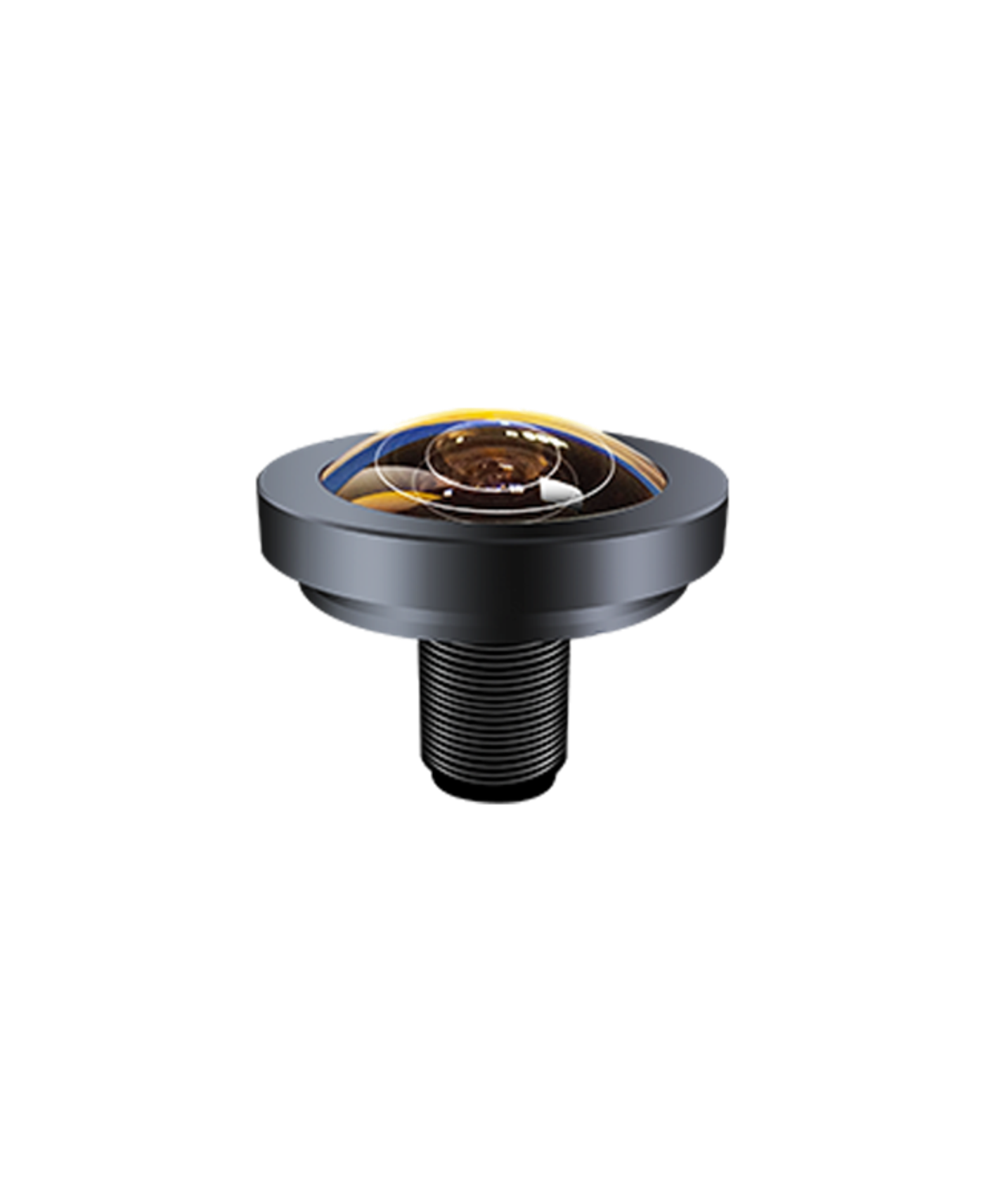

AZURE-IR09620B5M 0.96mm Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
0.96 mmFocal Length
1/2.7"Sensor Size
2 MPResolution
2MPResolving Power
M12×0.5Mount
2.0Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-IR09620B5M.
- DimensionsΦ14×24.04mm
- Back Focal Length3.6mm
- MountM12×0.5
Key Specifications
| Focal Length | 0.96 mm |
| Sensor Size | 1/2.7" |
| Resolution | 2 MP |
| Resolving Power | 2MP |
| Mount | M12×0.5 |
| Aperture | 2.0 |
| Working Distance | 0.1~∞m |
| Distortion | <-4.2% |
| Back Focal Length | 3.6mm |
| Dimensions | Φ14×24.04mm |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
